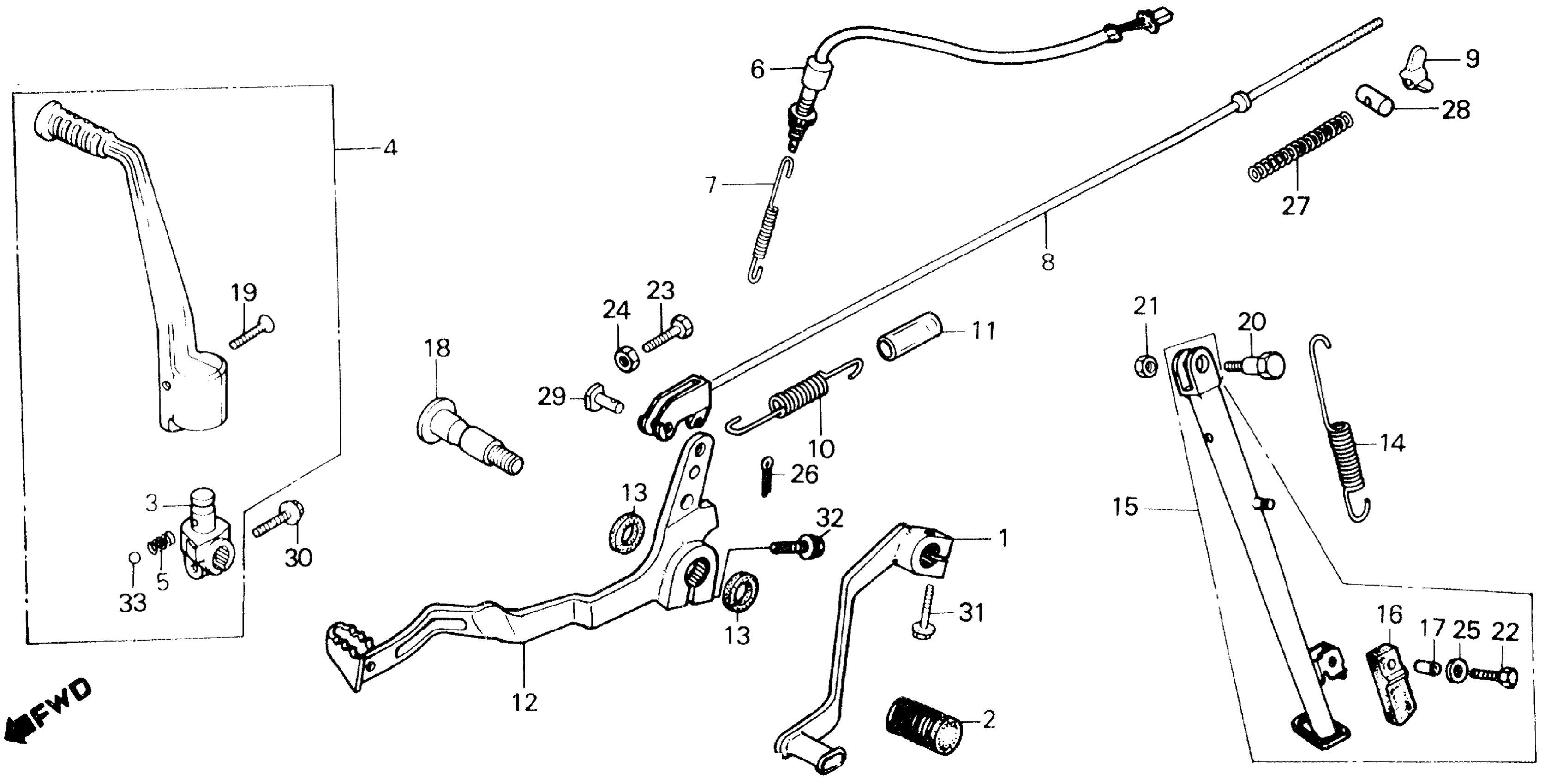

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24710-KL4-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

JOINT, KICK ARM

28241-KK0-310

Unavailable

4

ARM ASSY., KICK STARTER

28300-KK0-010

Unavailable

5

SPRING, KICK STARTER

28333-KK0-000

$2.51

6

SWITCH ASSY., RR. STOP This part replaces 35350-KL4-000.

35350-KV6-405

$18.15

6

SWITCH ASSY., RR. STOP This part replaces 35350-KL4-010.

35350-KV6-405

$18.15

7

SPRING, STOP SWITCH This part replaces 35357-KL4-000.

35357-011-000

$2.46

7

SPRING, STOP SWITCH

35357-011-000

$2.46

8

ROD, RR. BRAKE (NOT AVAILABLE)

43451-KL4-000

Unavailable

9

NUT, BRAKE ADJUST

43459-434-000

$15.27

10

SPRING SET, BRAKE PEDAL This part replaces 46511-KK0-000.

46513-KT0-670

Unavailable

10

SPRING SET, BRAKE PEDAL

46513-KT0-670

Unavailable

11

TUBE, BRAKE PEDAL SPRING

46515-KL4-000

Unavailable

12

PEDAL, BRAKE

46520-KT4-670

Unavailable

13

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

14

SPRING, SIDE STAND

50535-ML6-670

$7.41

15

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-KL4-671

Unavailable

16

RUBBER, STAND

50548-356-700

$10.50

17

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

18

SHAFT, RR. BRAKE PIVOT

90101-KK0-000

$27.48

19

BOLT, KICK ARM

90101-329-000

$3.67

20

SCREW, SIDE STAND PIVOT

90108-KG0-000

$7.96

21

NUT, U (10MM)

90304-GE8-003

$3.67

22

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

22

BOLT, HEX. (6X28) This part replaces 92000-06028-0A.

92101-06028-0A

$1.49

22

BOLT, HEX. (6X28) This part replaces 92100-06028.

92101-06028-0A

$1.49

22

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

23

BOLT, HEX. (6X25)

92225-06025-0A

Unavailable

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

26

PIN, COTTER (1.6X25)

94201-16250

$1.49

27

SPRING A, BRAKE ROD

95014-73100

$1.49

28

JOINT, BRAKE ARM

95015-32001

$1.49

29

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

30

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

30

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

31

BOLT, FLANGE (6X14) This part replaces 90173-MG3-000.

95701-06014-00

$1.49

31

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

32

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

32

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

33

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
