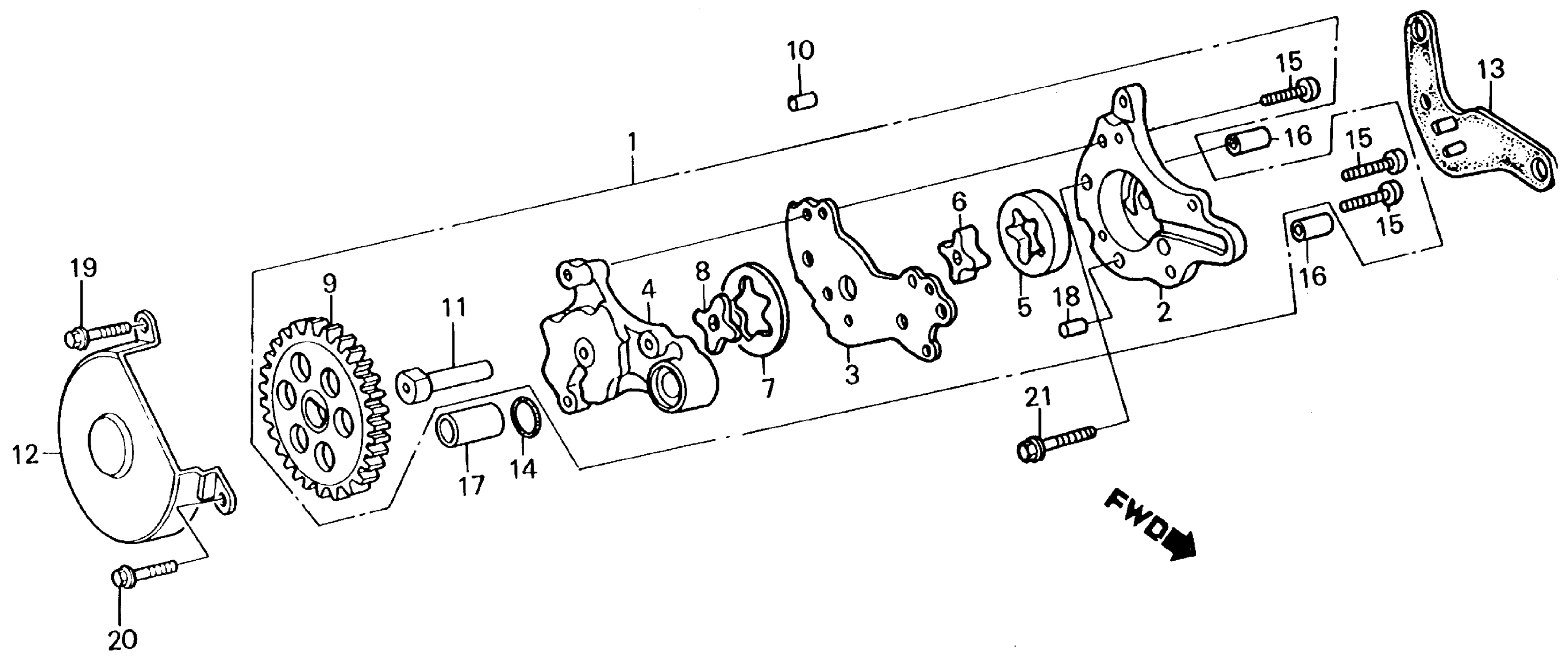

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-KR0-010

Unavailable

2

BODY, OIL PUMP This part replaces 15111-KK0-771.

15111-KK0-772

Unavailable

2

BODY, OIL PUMP

15111-KK0-772

Unavailable

3

PLATE, OIL PUMP

15112-KL4-000

$10.82

4

COVER, OIL PUMP

15121-KL4-000

$40.21

5

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15122-KK0-771

Unavailable

6

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)

15123-KK0-771

Unavailable

7

ROTOR B, OIL PUMP (OUTER)

15124-KG0-000

Unavailable

8

ROTOR B, OIL PUMP (INNER)

15125-KG0-000

Unavailable

9

GEAR, OIL PUMP DRIVEN (30T)

15140-KK1-000

Unavailable

10

ROLLER (6X8)

15141-KF0-000

$4.51

11

SHAFT, OIL PUMP

15141-KK0-000

Unavailable

12

COVER, OIL PUMP GEAR

15151-KK0-000

Unavailable

13

SEAT, OIL PUMP This part replaces 15152-KL4-000.

15152-KL4-405

Unavailable

13

SEAT, OIL PUMP

15152-KL4-405

Unavailable

14

GASKET, RUBBER

91303-KK0-003

$2.97

15

SCREW, PAN (5X16)

93500-05016-0A

$1.49

16

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

17

PIN A, DOWEL (10X16)

94301-10160

$2.28

18

PIN, DOWEL (4X8)

94303-04080

Unavailable

19

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

19

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

20

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

20

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

21

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

21

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
