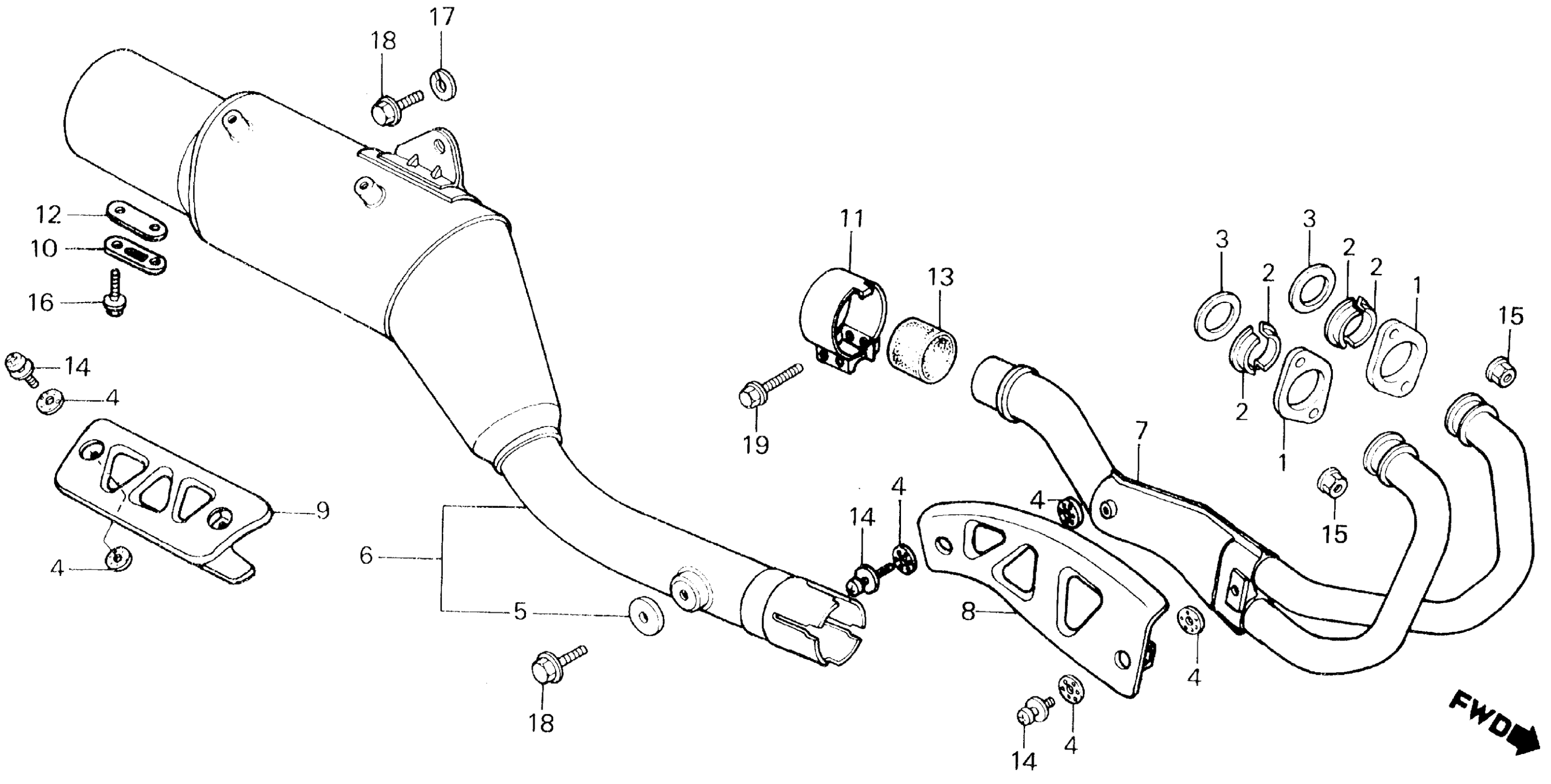

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-KK0-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-437-000

$9.37

3

GASKET, EX. PIPE This part replaces 18291-KK0-000.

18291-KZ1-670

$5.46

3

GASKET, EX. PIPE

18291-KZ1-670

$5.46

4

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

4

GASKET, PROTECTOR

18292-MM9-740

$3.03

4

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

5

GASKET B, MUFFLER This part replaces 18295-KS3-920.

18295-KV6-920

Unavailable

5

GASKET B, MUFFLER This part replaces 18295-KZ1-670.

18295-KV6-920

Unavailable

5

GASKET B, MUFFLER This part replaces 18295-429-000.

18295-KV6-920

Unavailable

6

MUFFLER (NOT AVAILABLE)

18310-KT4-770

Unavailable

7

PIPE, EX. This part replaces 18320-KL4-770.

18320-KL4-610

Unavailable

8

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18325-KL4-000

Unavailable

9

PROTECTOR, MUFFLER (NOT AVAILABLE)

18355-KL4-000

Unavailable

10

LID, MUFFLER

18373-429-010

$9.15

11

BAND, R. MUFFLER (NOT AVAILABLE) This part replaces 18374-MA3-000.

18374-MG5-670

Unavailable

12

GASKET, MUFFLER LID

18374-MN1-880

$4.21

12

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

13

GASKET, MUFFLER This part replaces 18391-438-000.

18391-438-306

$9.62

13

GASKET, MUFFLER

18391-438-306

$9.62

14

SCREW-WASHER (6X12)

90136-MC7-000

$4.66

15

NUT, CAP (6MM)

90304-438-000

$7.14

16

BOLT-WASHER (6X12)

93401-06012-07

$1.62

16

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

16

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

17

WASHER, SPRING (8MM)

94111-08000

$1.49

18

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

18

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

19

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

19

BOLT, FLANGE (8X28)

95701-08028-00

$1.49
