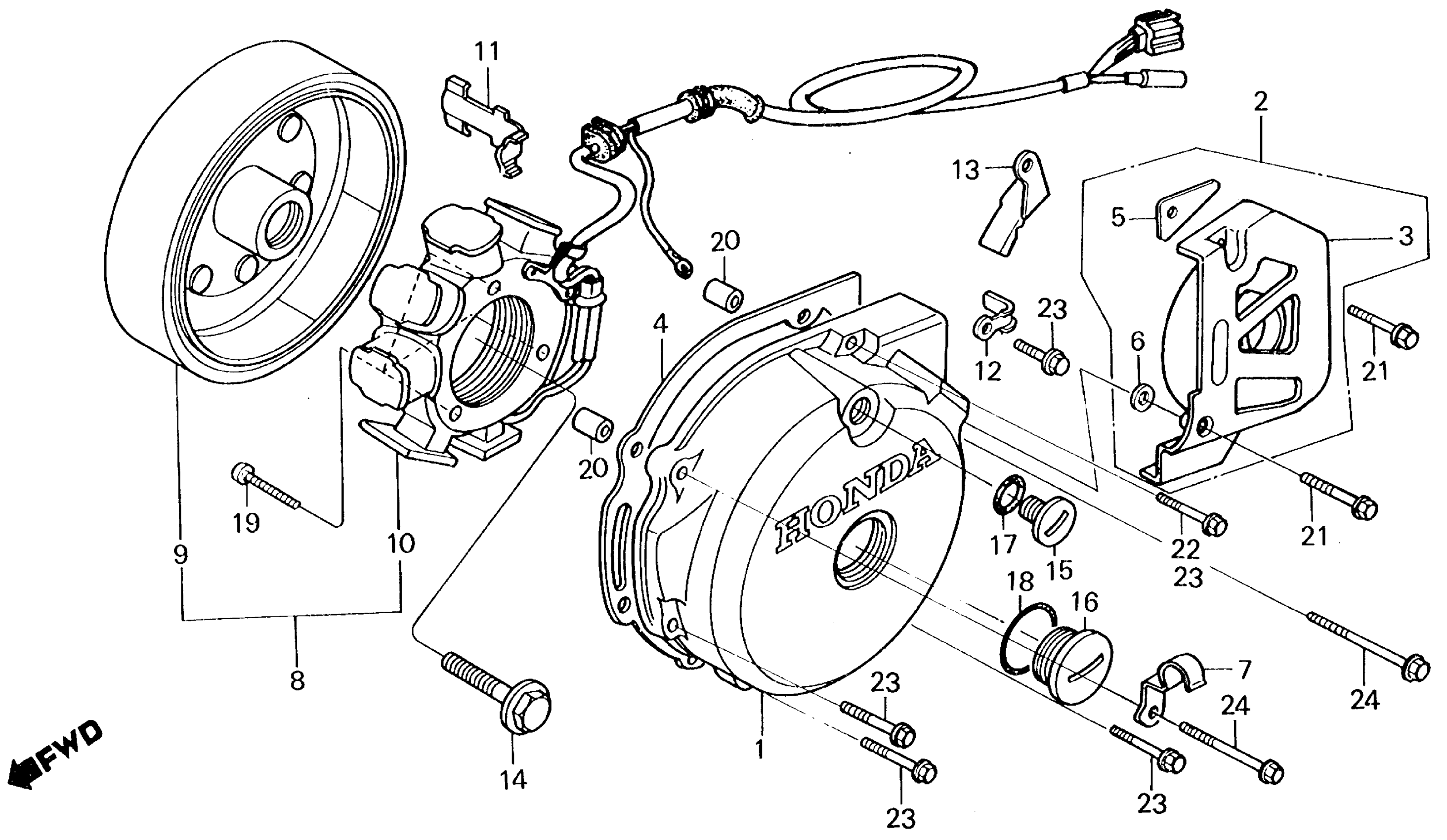

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE

11341-KR6-700

Unavailable

3

COVER, L. RR. CRANKCASE This part replaces 11361-KR6-700.

11361-KR6-701

Unavailable

3

COVER, L. RR. CRANKCASE

11361-KR6-701

Unavailable

4

GASKET, L. CRANKCASE COVER This part replaces 11395-KK0-770.

11395-KZ1-920

$12.02

4

GASKET, L. CRANKCASE COVER

11395-KZ1-920

$12.02

7

CLAMP, CLUTCH CABLE

22826-KK0-000

Unavailable

8

ALTERNATOR ASSY., FLYWHEEL TYPE

31100-KR6-003

Unavailable

8

ALTERNATOR ASSY., FLYWHEEL TYPE

31100-KR6-004

Unavailable

9

FLYWHEEL

31110-KL4-013

Unavailable

9

FLYWHEEL

31110-KL4-014

Unavailable

10

STATOR This part replaces 31120-KR6-003.

31120-KR6-416

Unavailable

10

STATOR COMP. This part replaces 31120-KR6-004.

31120-KR6-415

Unavailable

10

STATOR This part replaces 31120-KR6-406.

31120-KR6-416

Unavailable

10

STATOR

31120-KR6-416

Unavailable

11

CLAMP, CABLE

32111-KK0-000

Unavailable

13

CLAMP, NEUTRAL WIRE

35602-KR6-000

Unavailable

14

BOLT, FLANGE (12X50)

90023-471-000

$12.42

15

CAP, ALTERNATOR

90084-471-000

Unavailable

16

CAP (30MM) This part replaces 90087-471-000.

90087-MR1-000

$17.87

17

O-RING (13.8X2.5)

91303-377-000

$3.18

18

O-RING (27X2.0)

91305-KF0-003

$2.80

19

BOLT, STOPPER TENSIONER SHAFT

90092-KE5-000

$4.32

20

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.04

21

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

Unavailable

21

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable

22

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.28

22

BOLT, FLANGE (6X32)

96001-06032-00

$1.28

23

BOLT, FLANGE (6X32) This part replaces 96000-06032-07.

96001-06032-07

$1.41

23

BOLT, FLANGE (6X32)

96001-06032-07

$1.41

24

BOLT, FLANGE (6X40) This part replaces 96000-06040-07.

96001-06040-07

$1.28

24

BOLT, FLANGE (6X40)

96001-06040-07

$1.28
