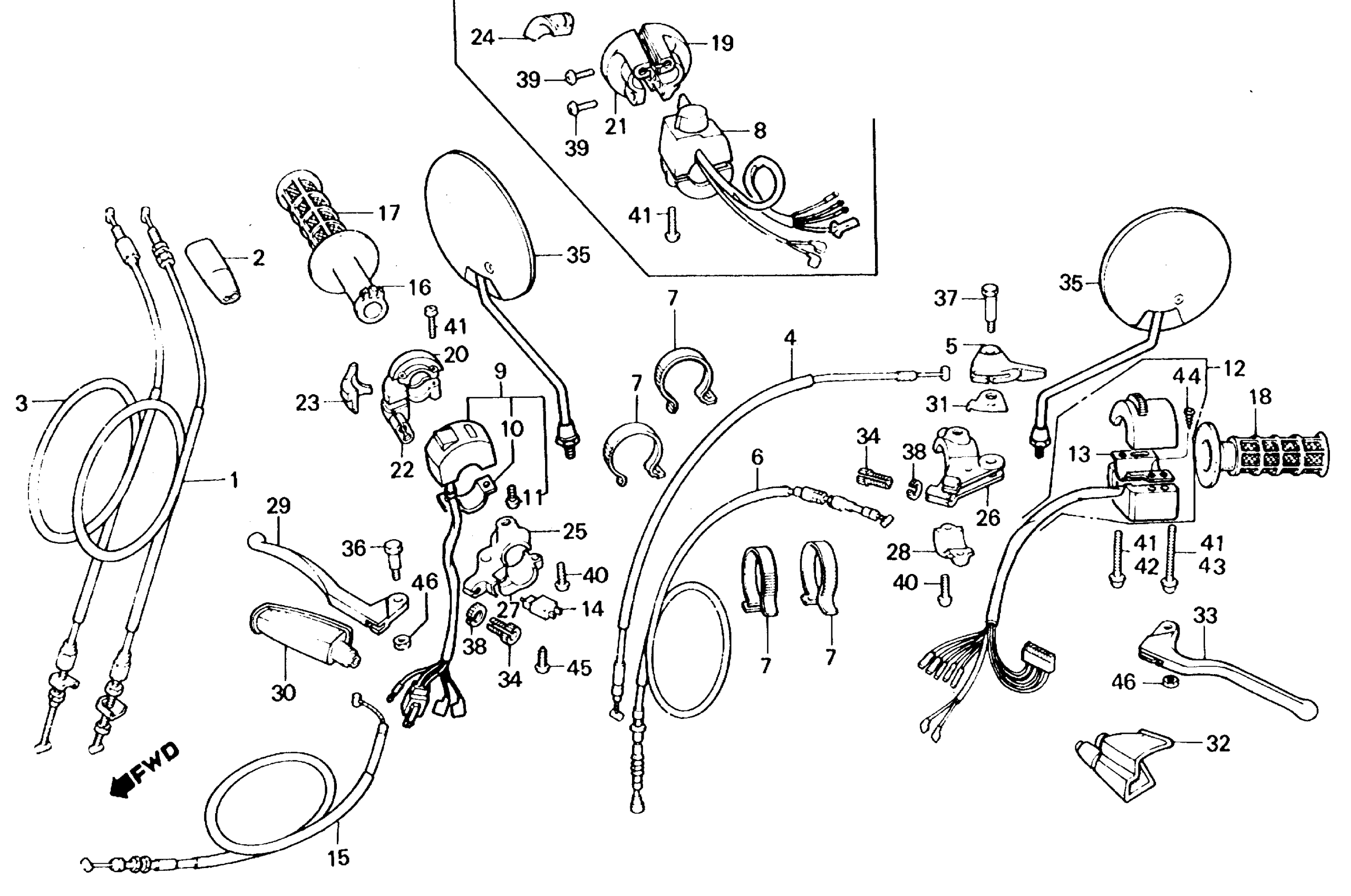

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE (NOT AVAILABLE)

17910-KT4-670

Unavailable

2

COVER, THROTTLE CABLE

17913-KB7-000

$9.52

3

CABLE B, THROTTLE (NOT AVAILABLE)

17920-KT4-670

Unavailable

4

CABLE, CHOKE (NOT AVAILABLE)

17950-KG0-010

Unavailable

5

LEVER, CHOKE This part replaces 17961-MG2-000.

17961-MG2-010

$16.19

6

CABLE, CLUTCH

22870-KL4-000

Unavailable

7

BAND B1, CABLE

32161-404-000

$2.13

9

SWITCH ASSY., STOP (NOT AVAILABLE)

35130-ML6-671

Unavailable

10

PLATE, SETTING This part replaces 35132-KR5-003.

35132-KR5-013

$4.55

10

PLATE, SETTING

35132-KR5-013

$4.55

11

SCREW, PAN (4X12)

35133-KJ2-003

$2.17

12

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-KT4-670

Unavailable

13

PLATE, SETTING

35203-MG2-670

Unavailable

14

SWITCH ASSY., FR. STOP

35340-KG1-003

Unavailable

15

CABLE, FR. BRAKE

45450-KL4-000

Unavailable

16

PIPE, THROTTLE GRIP

53141-KL3-670

Unavailable

17

GRIP, R. HANDLE This part replaces 53165-MK5-000.

53165-MGW-305

$9.25

17

GRIP, R. HANDLE This part replaces 53165-MK5-010.

53165-MGW-305

$9.25

18

GRIP, L. HANDLE (COO) This part replaces 53166-MK5-000.

53166-MGW-305

$9.31

18

GRIP, L. HANDLE (COO) This part replaces 53166-MK5-010.

53166-MGW-305

$9.31

19

HOUSING, THROTTLE (UPPER)

53167-KB7-000

$37.99

22

HOUSING, THROTTLE (LOWER)

53168-MG7-000

$33.61

23

SLIDER, THROTTLE CABLE

53169-KB7-000

$7.37

25

BRACKET, R. HANDLEBAR

53171-KE1-000

$31.49

26

BRACKET, L. HANDLEBAR

53172-MG2-010

Unavailable

27

HOLDER, R. LEVER BRACKET

53173-KE1-000

Unavailable

28

HOLDER, L. LEVER BRACKET

53174-KE1-000

$14.11

29

LEVER, R. HANDLEBAR

53175-KE1-000

$17.45

30

COVER, R. CONTROL LEVER This part replaces 53176-KE1-000.

53176-KG1-000

Unavailable

30

COVER, R. CONTROL LEVER

53176-KG1-000

Unavailable

31

PLATE, POINT

53176-MG2-000

Unavailable

32

COVER, L. HANDLEBAR

53177-MG2-000

Unavailable

33

LEVER, L. HANDLEBAR

53178-KE1-000

Unavailable

34

BOLT, CABLE ADJUSTING

53192-268-000

$6.08

35

MIRROR This part replaces 88110-KB7-000.

88110-KB7-010

Unavailable

35

MIRROR

88110-KB7-010

Unavailable

36

BOLT, HANDLEBAR

90113-KA3-710

$3.64

37

BOLT, HANDLE LEVER PIVOT

90113-MG2-000

$5.63

38

NUT, FIXING

90321-315-670

$6.80

40

SCREW, PAN (5X18)

93500-05018-0A

$0.75

41

SCREW, PAN (5X20)

93500-05020-0A

$0.75

44

SCREW, TAPPING (3X8)

93901-32120

$0.75

45

SCREW, TAPPING (3X12)

93901-32320

$0.83

46

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

46

NUT, HEX. (6MM)

94001-06200-0S

$1.19
