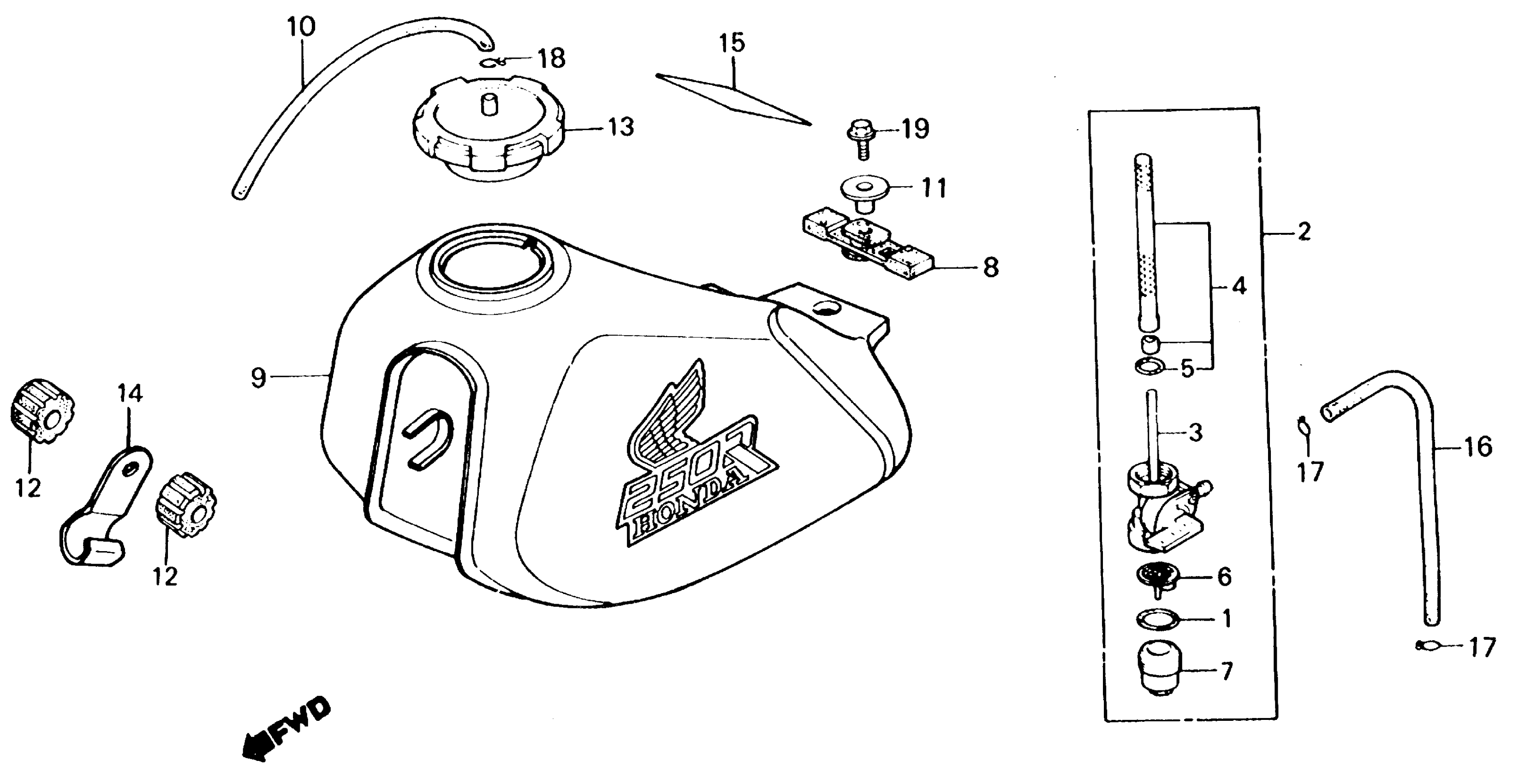

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 FUEL TANK Diagram

#

Description
Price

1

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

2

PETCOCK ASSY.

16950-KBR-000

$113.25

2

PETCOCK ASSY. This part replaces 16950-MG2-005.

16950-KBR-000

$113.25

3

BODY, VALVE (NOT AVAILABLE)

16951-KB7-005

Unavailable

4

SCREEN SET, FUEL STRAINER This part replaces 16952-MG2-005.

16952-KPM-003

Unavailable

5

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

5

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

6

FILTER, CUP

16959-471-831

$9.35

7

CUP, FUEL STRAINER

16967-MA2-771

$25.08

8

RUBBER, RR. FUEL TANK

17503-KG0-000

$20.54

9

TANK SUB-ASSY., FUEL *NH138* (SHASTA WHITE) (NOT AVAILABLE)

17500-KT4-770ZA

Unavailable

10

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

11

COLLAR, FUEL TANK SETTING

17525-KC5-000

$6.72

12

RUBBER, FR. TANK (NOT AVAILABLE)

17611-473-000

Unavailable

13

CAP, FUEL FILLER This part replaces 17620-KE1-003.

17620-KE1-023

$42.29

13

CAP, FUEL FILLER This part replaces 17620-KE1-013.

17620-KE1-023

$42.29

14

CLIP A, WIRE HARNESS

45464-435-760

Unavailable

15

MARK, DRIVE CAUTION

87560-KT4-670

Unavailable

16

BULK HOSE, FUEL (5.5X3000) (5.5X95)

95001-55003-60M

$47.32

17

CLIP, TUBE (B10)

95002-02100

$1.90

18

CLIP, TUBE (C9)

95002-50000

$1.49

19

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

19

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
