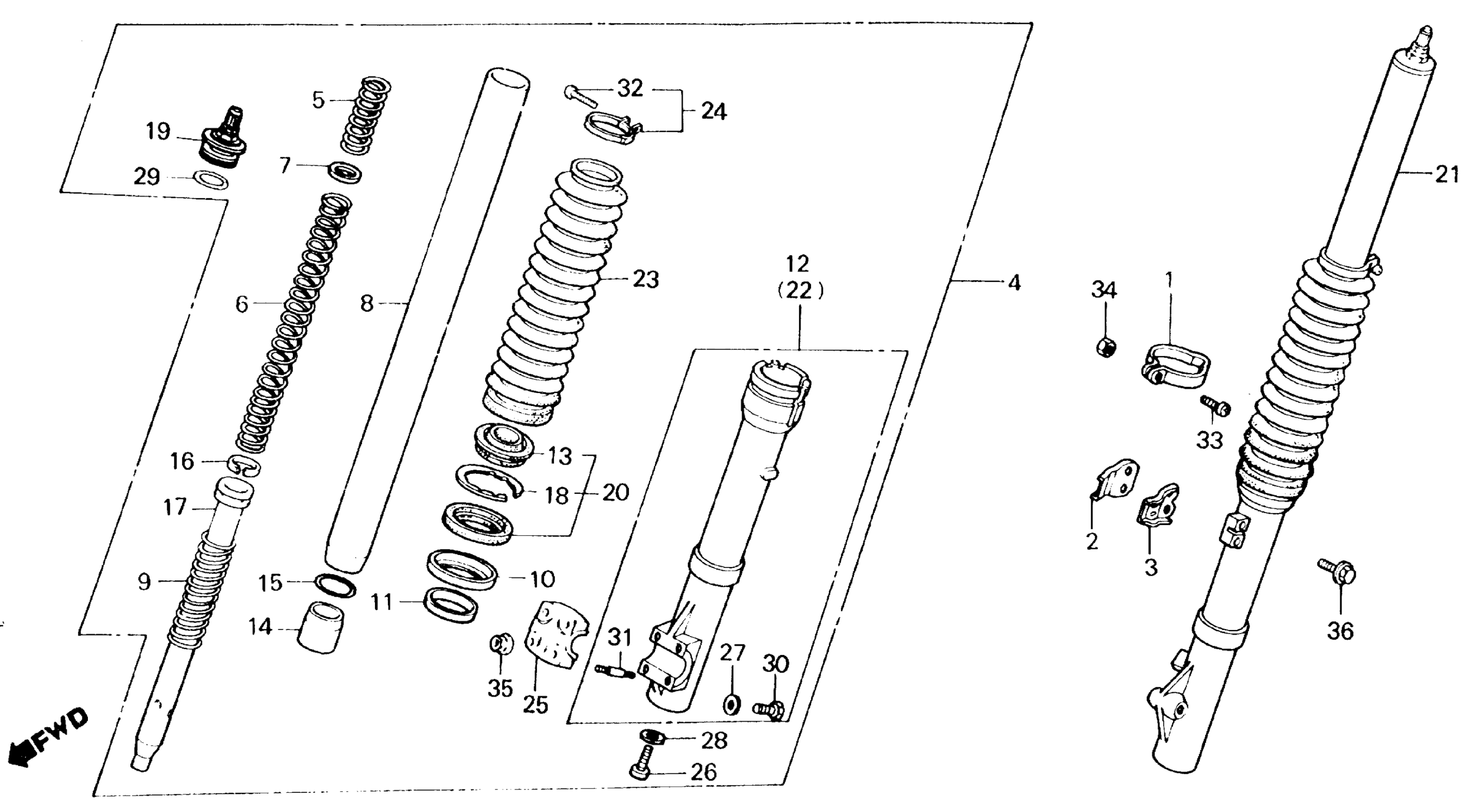

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 FRONT FORK Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE

44832-KR6-000

$7.64

2

CLAMP A, FR. BRAKE CABLE

45461-KG0-000

Unavailable

3

CLAMP B, FR. BRAKE CABLE

45462-KG0-000

Unavailable

4

FORK ASSY., R. FR. *B106* (CAPRI BLUE)

51400-KT4-771ZA

Unavailable

5

SPRING A, FR. FORK

51401-KL4-671

Unavailable

6

SPRING B, FR. FORK

51402-KT4-771

Unavailable

7

SEAT, SPRING (NOT AVAILABLE)

51403-KA2-681

Unavailable

8

PIPE, FR. FORK

51410-KT4-771

Unavailable

9

SPRING, REBOUND (NOT AVAILABLE)

51412-KA2-681

Unavailable

10

RING, BACK-UP

51412-422-003

$6.96

11

BUSH, GUIDE This part replaces 51414-469-003.

51414-MBV-711

$17.62

12

CASE, R. (LOWER)

51420-KT4-771

Unavailable

13

DUST SEAL (35MM)

51425-KT2-003

Unavailable

14

PIECE, OIL LOCK

51432-KL4-951

Unavailable

15

RING, STOPPER

51435-KL4-951

Unavailable

16

RING, PISTON

51437-KA2-681

Unavailable

17

PIPE, SEAT

51440-KT4-771

Unavailable

18

RING, OIL SEAL STOPPER

51447-KL4-951

$3.74

19

BOLT ASSY., FR. FORK

51450-KA2-003

Unavailable

19

BOLT ASSY., FR. FORK (NOT AVAILABLE) This part replaces 51450-964-671.

51450-KA2-003

Unavailable

20

SEAL SET, FR. FORK

51490-GS2-305

$32.39

20

SEAL SET, FR. FORK

51490-KT2-305

$32.39

21

FORK ASSY., L. FR. *B106* (CAPRI BLUE)

51500-KT4-771ZA

Unavailable

22

CASE, L. (LOWER)

51520-KT4-771

Unavailable

23

BOOT, FR. FORK *B106* (CAPRI BLUE) This part replaces 51611-KL4-771ZA.

51611-KL4-772ZA

Unavailable

23

BOOT, FR. FORK *B106* (CAPRI BLUE)

51611-KL4-772ZA

Unavailable

24

BAND, FR. FORK BOOT

51612-434-000

$9.17

25

HOLDER, AXLE

51634-MA0-003

$33.64

26

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$4.77

27

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.25

28

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

29

O-RING (25.7X2.8)

91356-428-003

$3.35

30

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.25

30

BOLT, HEX. (6X8)

92101-06008-0A

$1.25

31

BOLT, STUD (6X25)

92900-06025-0E

$0.94

32

SCREW, PAN (3X20)

93500-03020-0A

$0.75

33

SCREW, PAN (5X20)

93500-05020-0A

$0.75

34

NUT, HEX. (5MM)

94001-05000-0S

$2.42

35

NUT, U (6MM)

90301-473-003

$3.79

36

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$0.96

36

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
