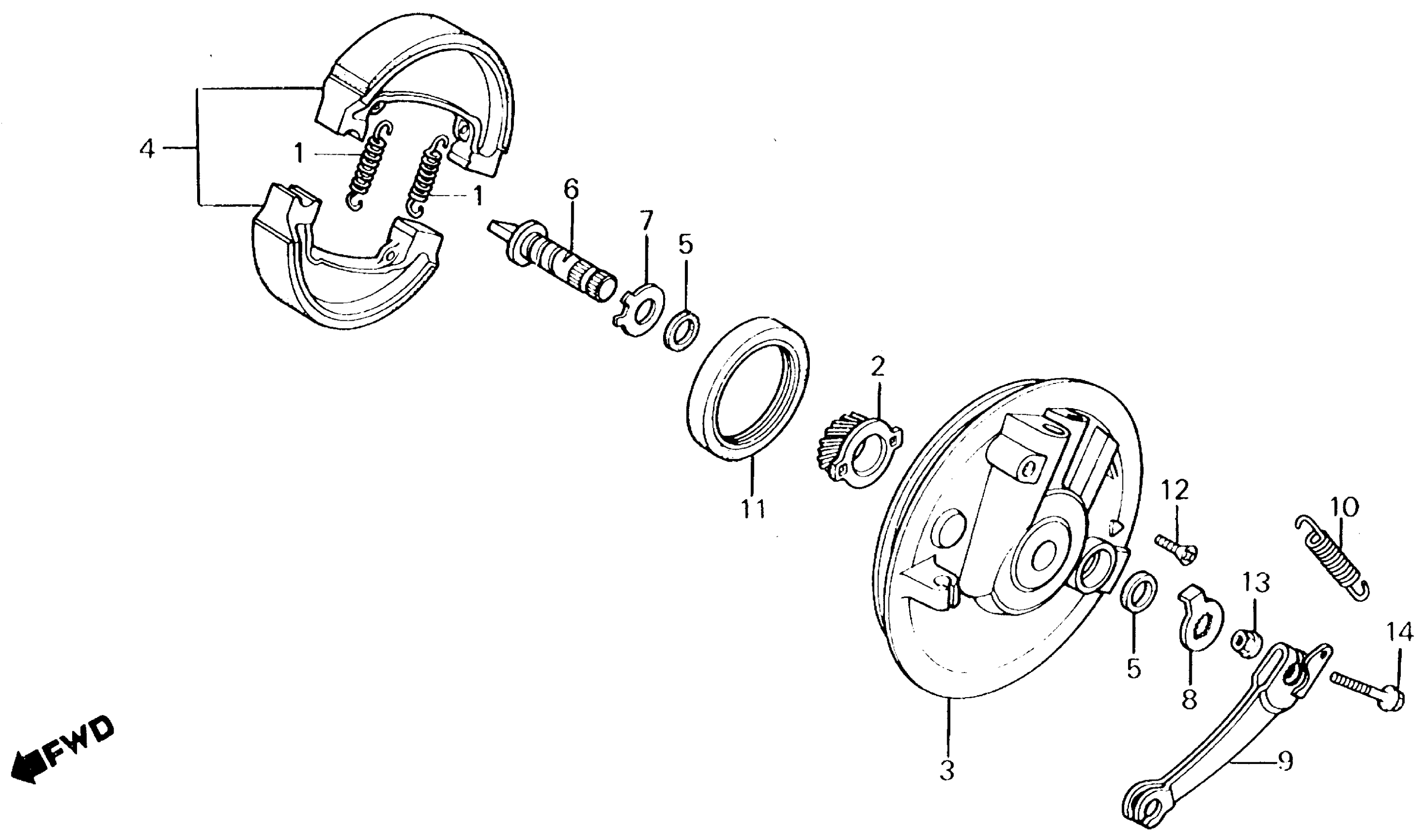

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE This part replaces 06450-KG0-305.

06450-KY0-601

Unavailable

NI

SHOE KIT, BRAKE This part replaces 06450-KG0-405.

06450-KY0-601

Unavailable

NI

SHOE KIT, BRAKE

06450-KY0-601

Unavailable

NI

SHOE KIT, BRAKE This part replaces 451A2-KG0-305.

06450-KY0-601

Unavailable

1

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

2

GEAR, SPEEDOMETER

44804-KA2-003

Unavailable

3

PANEL SUB-ASSY., FR. BRAKE

45010-KG0-003

Unavailable

4

SHOE, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45120-KG0-305

Unavailable

5

DUST SEAL, BRAKE CAM

45134-KB7-005

$2.97

6

CAM, FR. BRAKE

45141-KG0-000

Unavailable

7

SEAT, FR. BRAKE CAM (NOT AVAILABLE)

45142-KB7-000

Unavailable

8

INDICATOR, FR. BRAKE

45145-KB7-000

Unavailable

9

ARM, FR. BRAKE (NOT AVAILABLE)

45410-KG0-000

Unavailable

10

SPRING, BRAKE ARM RETURN (NOT AVAILABLE)

45435-KA3-710

Unavailable

11

OIL SEAL (47X60X7)

91251-GK4-003

$9.19

11

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$9.19

11

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-003.

91251-GK4-003

$9.19

11

OIL SEAL (47X60X7)

91251-361-005

$13.39

12

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

13

NUT, FLANGE (6MM)

94050-06000

$1.49

14

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

14

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
