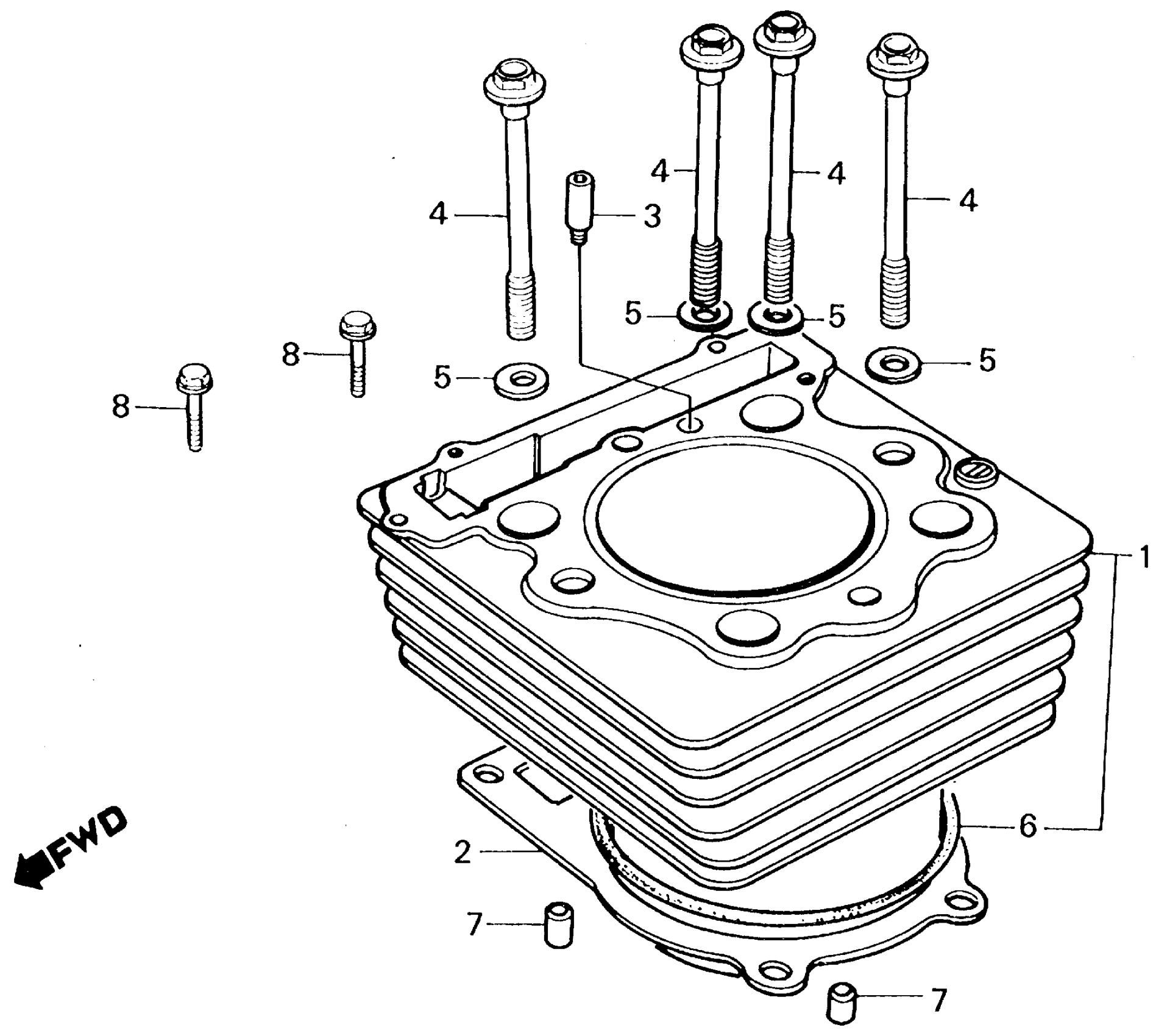

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 CYLINDER Diagram

#

Description

Price

1

CYLINDER (NOT AVAILABLE)

12100-KR6-700

Unavailable

2

GASKET, CYLINDER This part replaces 12191-KK0-000.

12191-KZ1-920

$6.98

2

GASKET, CYLINDER

12191-KZ1-920

$6.98

3

SCREW, HEX. SOCKET HEAD (6X16)

90002-KK1-000

Unavailable

4

BOLT, FLANGE (10X88)

90083-KK0-000

$17.08

5

WASHER (10MM) This part replaces 90410-KE5-000.

90410-KR0-000

$2.67

5

WASHER (10MM)

90410-KR0-000

$2.67

6

O-RING (78.3X2) This part replaces 91302-428-000.

91304-HA0-003

$5.80

6

O-RING (78.3X2) This part replaces 91304-HA0-000.

91304-HA0-003

$5.80

6

O-RING (78.3X2)

91304-HA0-003

$5.80

7

PIN A, DOWEL (12X20)

94301-12200

$2.29

8

BOLT, FLANGE (6X20) This part replaces 96000-06020-07.

96001-06020-07

$1.49

8

BOLT, FLANGE (6X20)

96001-06020-07

$1.49
