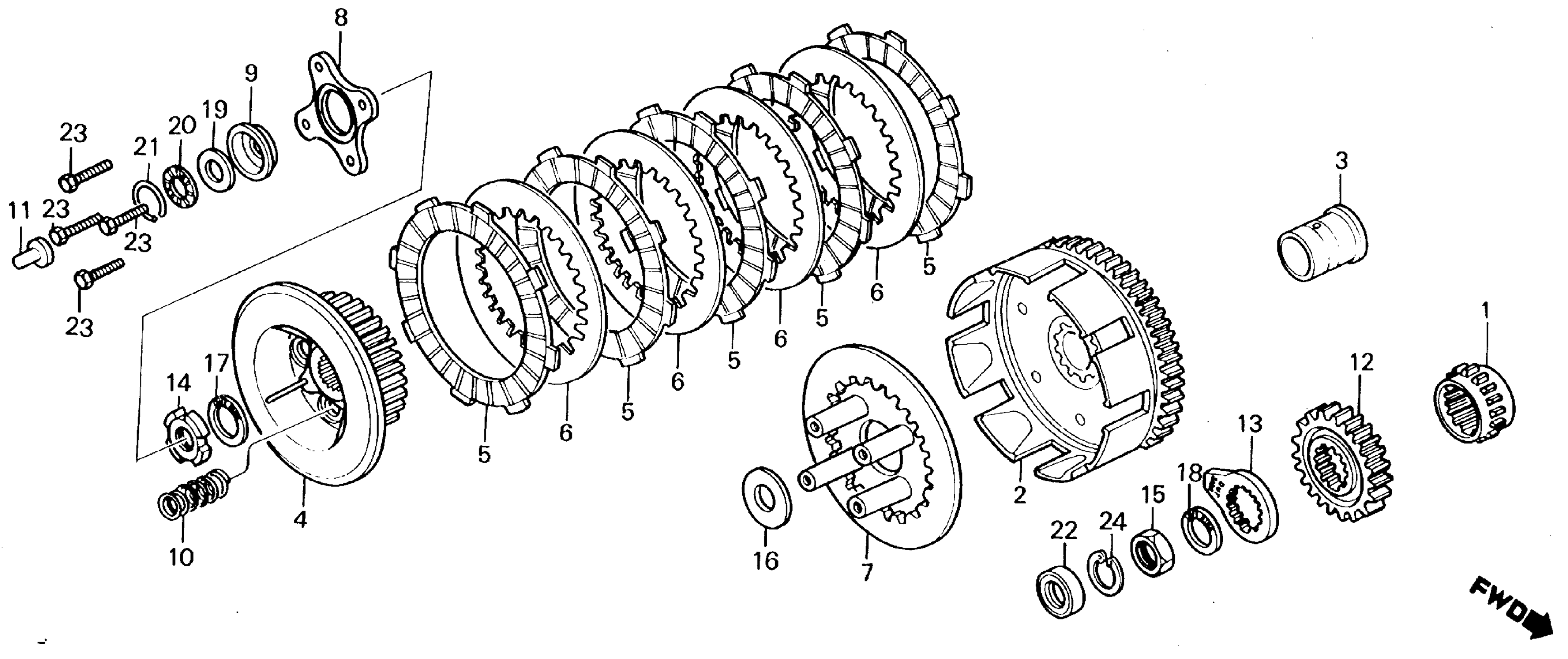

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, TIMING (19T)

14312-KK0-000

Unavailable

2

CLUTCH (OUTER)

22100-KK1-010

Unavailable

3

GUIDE, CLUTCH (OUTER) This part replaces 22116-KK0-000.

22116-KR0-010

Unavailable

3

GUIDE, CLUTCH (OUTER) This part replaces 22116-KR0-000.

22116-KR0-010

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-KR0-010

Unavailable

4

CENTER, CLUTCH

22120-KK1-000

Unavailable

5

DISK, CLUTCH FRICTION This part replaces 22201-KE1-000.

22201-MS6-620

$14.71

5

DISK, CLUTCH FRICTION This part replaces 22201-KG0-980.

22201-MS6-620

$14.71

5

DISK, CLUTCH FRICTION

22201-MS6-620

$14.71

6

PLATE, CLUTCH This part replaces 22321-KF0-000.

22321-KF0-770

$13.39

6

PLATE, CLUTCH

22321-KF0-770

$13.39

7

PLATE, CLUTCH PRESSURE This part replaces 22350-KF0-000.

22350-KW3-000

$63.46

7

PLATE, CLUTCH PRESSURE

22350-KW3-000

$63.46

8

PLATE, CLUTCH LIFTER This part replaces 22361-KR0-000.

22361-KW3-000

Unavailable

8

PLATE, CLUTCH LIFTER

22361-KW3-000

Unavailable

9

COLLAR, CLUTCH LIFTER

22362-KK0-000

Unavailable

10

SPRING, CLUTCH

22401-KF0-010

$5.01

11

PIN, CLUTCH LIFTER

22820-KR0-000

Unavailable

12

GEAR, PRIMARY DRIVE (20T)

23121-KK1-000

Unavailable

13

ROTOR, PULSE

30220-KK0-000

Unavailable

14

NUT, LOCK (16MM)

90231-KB5-720

$4.36

14

NUT, LOCK (16MM) This part replaces 90231-KR3-000.

90231-KB5-720

$4.36

15

NUT, LOCK (18MM)

90235-428-000

Unavailable

16

WASHER (20X37X2)

90404-KK0-000

$4.04

17

WASHER (16MM) This part replaces 90434-KE1-000.

90434-KPS-900

$1.81

17

WASHER (16MM) This part replaces 90434-KN6-930.

90434-KPS-900

$1.81

18

WASHER, LOCK

90432-KF0-000

$8.65

19

WASHER, THRUST (12MM) (TOYO)

90452-147-003

$3.37

19

WASHER, THRUST (12MM) (TOMUSON)

90452-147-006

$3.61

20

BEARING, NEEDLE (12MM)

91001-147-003

$11.31

20

BEARING, NEEDLE (12MM) (TOMUSON)

91001-147-006

$12.14

21

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.80

22

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-000.

91201-HM3-A61

$2.80

22

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-003.

91201-HM3-A61

$2.80

22

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-004.

91201-HM3-A61

$2.80

22

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-005.

91201-HM3-A61

$2.80

22

OIL SEAL (14X22X5) (ARAI) This part replaces 91203-KK0-003.

91201-HM3-A61

$2.80

23

BOLT, HEX. (6X22) This part replaces 92022-06022-0A.

92101-06022-0A

$1.41

23

BOLT, HEX. (6X22)

92101-06022-0A

$1.41

24

CIRCLIP (OUTER) (35MM)

94510-35150

Unavailable
