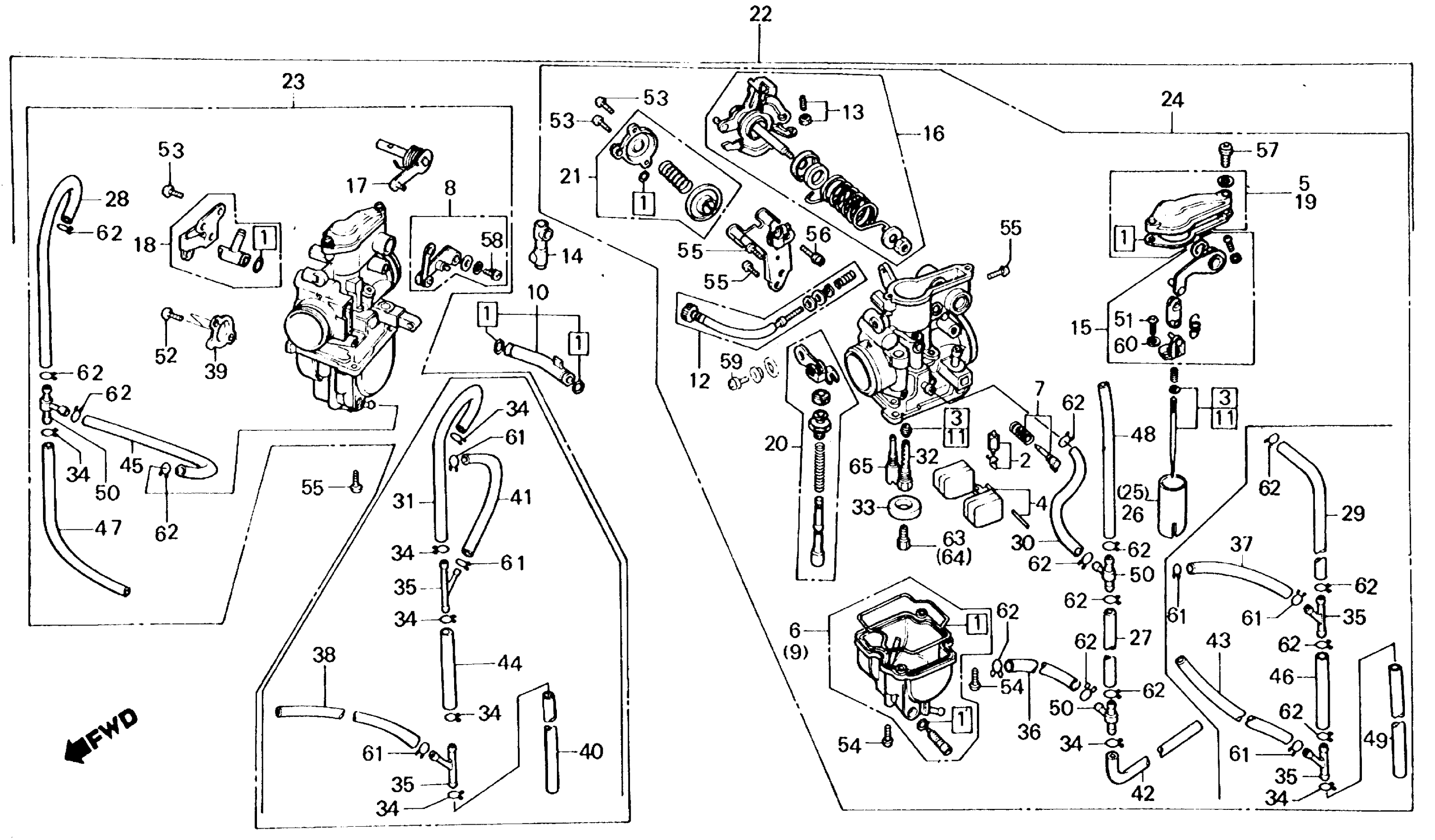

Honda XL250RA (87) MOTORCYCLE, JPN, VIN# JH2MD110-HK300001 CARBURETOR 86-87 Diagram

#

Description
Price

1

GASKET SET

16010-KF0-305

$37.66

1

GASKET SET This part replaces 16010-KL4-761.

16010-KF0-305

$37.66

2

VALVE SET, FLOAT This part replaces 16011-KG0-891.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, PRIMARY JET

16012-KT4-751

Unavailable

4

FLOAT SET

16013-KG0-891

Unavailable

5

TOP SET

16014-KF0-004

Unavailable

6

CHAMBER SET, FLOAT

16015-KL4-771

Unavailable

7

SCREW SET (NOT AVAILABLE)

16016-MG2-004

Unavailable

10

JOINT SET, FUEL

16026-KF0-004

Unavailable

11

NEEDLE SET, SECONDARY JET

16027-KL4-004

Unavailable

12

SCREW SET

16028-KF0-004

Unavailable

13

SCREW SET

16029-KG0-004

Unavailable

14

HOLDER SET, ADJ.

16030-MK5-004

Unavailable

15

ARM SET, PRIMARY LINK

16031-KF0-004

Unavailable

16

LINK SET, PRIMARY THROTTLE

16032-KT4-671

Unavailable

17

LINK SET, SECONDARY THROTTLE

16035-KG0-004

Unavailable

18

JOINT SET, FUEL

16037-MG3-004

Unavailable

20

JOINT SET, FUEL

16042-KK0-771

$14.52

20

VALVE SET, STARTER

16046-KL3-791

Unavailable

21

VALVE SET, AIR CUT

16048-KG0-891

Unavailable

22

CARBURETOR ASSY. (NOT AVAILABLE)

16100-KT4-771

Unavailable

23

CARBURETOR ASSY. 1

16101-KT4-672

Unavailable

24

CARBURETOR ASSY. 2

16102-KT4-771

Unavailable

25

VALVE, SECONDARY THROTTLE

16111-KE5-004

Unavailable

26

VALVE, PRIMARY THROTTLE

16111-KL3-771

Unavailable

27

PIPE, AIR VENT

16143-KE5-004

Unavailable

28

TUBE

16143-KL4-771

Unavailable

30

TUBE

16144-KL4-771

Unavailable

32

HOLDER, NEEDLE JET This part replaces 16165-KF0-771.

16165-KL3-671

Unavailable

32

HOLDER, NEEDLE JET

16165-KL3-671

Unavailable

33

HOLDER, JET

16168-KF0-004

Unavailable

34

CLIP, TUBE

16179-KE5-004

Unavailable

36

TUBE

16191-KL4-771

Unavailable

39

COVER, AIR CUT VALVE (NOT AVAILABLE)

16193-KB4-671

Unavailable

42

PIPE, R. AIR VENT

16195-KE8-004

Unavailable

45

TUBE

16198-KL4-771

Unavailable

47

TUBE

16195-KL4-405

Unavailable

47

TUBE This part replaces 16198-ML6-671.

16195-KL4-405

Unavailable

48

PIPE, L. AIR VENT

16195-KE8-405

Unavailable

48

PIPE, L. AIR VENT This part replaces 16199-KE8-004.

16195-KE8-405

Unavailable

50

JOINT, FUEL TUBE (NOT AVAILABLE)

16958-MG9-000

Unavailable

51

SCREW, PAN (3X8)

93500-03008-0H

$1.49

51

SCREW, PAN (3X8) This part replaces 93500-03008-1H.

93500-03008-0H

$1.49

52

SCREW, PAN (4X8)

93500-04008-0H

$1.49

53

SCREW, PAN (4X10)

93500-04010-0H

$1.49

54

SCREW, PAN (4X14)

93500-04014-0H

$1.49

55

SCREW, PAN (5X12)

93500-05012-0H

$1.49

56

SCREW-WASHER (4X10)

93892-04010-08

$1.49

56

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.49

57

SCREW-WASHER (4X16)

93892-04016-08

$1.49

57

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

58

SCREW-WASHER (4X20)

93892-04020-08

Unavailable

58

SCREW-WASHER (4X20) This part replaces 93892-04020-18.

93892-04020-08

Unavailable

59

SCREW-WASHER (5X14)

93892-05014-08

$1.49

59

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.49

60

WASHER, SPRING (3MM)

94111-03800

$1.49

62

CLIP, TUBE (B10)

95002-02100

$1.90

63

JET, MAIN (#95) | (Optional).

99101-GHB-0950

$8.77

63

JET, MAIN (#95) | (Optional). This part replaces 99101-393-0950.

99101-GHB-0950

$8.77

64

JET, MAIN (#105)

99101-GHB-1050

$6.40

64

JET, MAIN (#105) This part replaces 99101-393-1050.

99101-GHB-1050

$6.40

64

JET, MAIN (#98) | (Optional).

99101-GHB-0980

$6.40

64

JET, MAIN (#98) | (Optional). This part replaces 99101-393-0980.

99101-GHB-0980

$6.40

65

JET, SLOW (#42)

99103-MG3-0420

Unavailable
