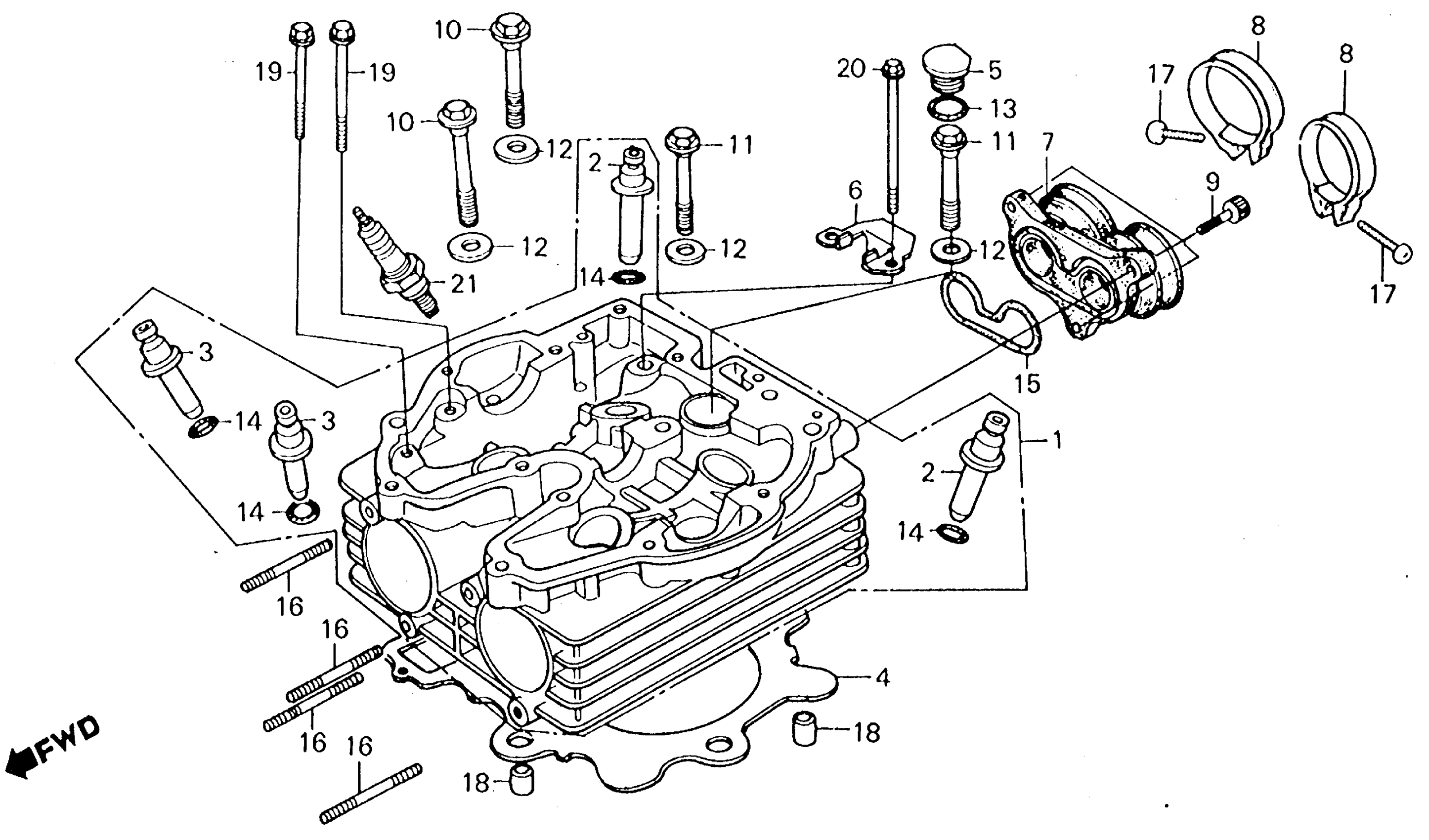

Honda XL250RA (85) MOTORCYCLE, JPN, VIN# JH2MD110-FK100003 TO JH2MD110-FK104428 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD (NOT AVAILABLE) | Use up to Engine SN 5108345 This part replaces 12200-KL4-000.

12200-KL4-010

Unavailable

1

CYLINDER HEAD (NOT AVAILABLE) | Use from Engine SN 5108346

12200-KL4-010

Unavailable

2

GUIDE, VALVE

12231-KK0-305

Unavailable

3

GUIDE, EX. VALVE

12241-KK0-305

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-KK1-003.

12251-KR6-003

Unavailable

4

GASKET, CYLINDER HEAD

12251-KR6-003

Unavailable

5

CAP, CYLINDER HEAD HOLE (NOT AVAILABLE)

12345-KK0-000

Unavailable

6

PLATE, TENSIONER SETTING This part replaces 14515-KK0-000.

14515-KK0-010

Unavailable

6

PLATE, TENSIONER SETTING

14515-KK0-010

Unavailable

7

INSULATOR, CARBURETOR

16211-KL4-000

$90.80

8

BAND, INSULATOR

16223-KS5-000

$14.20

8

BAND, INSULATOR This part replaces 16223-357-010.

16223-KS5-000

$14.20

9

BOLT, SOCKET (6X22)

90001-KK0-000

Unavailable

10

BOLT, FLANGE (10X81)

90081-KK0-000

$12.30

11

BOLT, FLANGE (10X72)

90082-KK0-000

Unavailable

12

WASHER (10MM) This part replaces 90410-KE5-000.

90410-KR0-000

$2.67

12

WASHER (10MM)

90410-KR0-000

$2.67

13

O-RING (15.8X2.5) (ARAI)

91301-MC7-003

$4.52

14

O-RING (10X1.6)

91301-200-000

$3.01

15

O-RING, CARBURETOR INSULATOR (ARAI)

91302-KK1-003

Unavailable

16

BOLT, STUD (6X28) This part replaces 90038-250-000.

92900-06028-0B

$1.89

16

BOLT, STUD (6X28) This part replaces 90051-200-000.

92900-06028-0B

$1.89

16

BOLT, STUD (6X28) This part replaces 92700-06035-0B.

92900-06028-0B

$1.89

16

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.89

16

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

16

BOLT, STUD (6X28)

92900-06028-0B

$1.89

16

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.89

17

SCREW, PAN (5X20)

93500-05020-0A

$1.49

18

PIN A, DOWEL (12X20)

94301-12200

$2.29

19

BOLT, FLANGE (6X80) This part replaces 96000-06080-00.

96001-06080-07

$2.23

19

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

$2.23

19

BOLT, FLANGE (6X80)

96001-06080-07

$2.23

20

BOLT, FLANGE (6X90) This part replaces 96000-06090-00.

96001-06090-00

$1.95

20

BOLT, FLANGE (6X90)

96001-06090-00

$1.95

21

SPARK PLUG (DPR8Z) (NGK) | (Optional).

98061-58616

$3.21

21

SPARK PLUG (X24GPR-U) (DENSO) | (Optional).

98061-58626

$3.39

21

SPARK PLUG (DPR9Z) (NGK)

98061-59616

$3.21

21

SPARK PLUG (X27GPR-U) (DENSO)

98061-59626

$3.39
