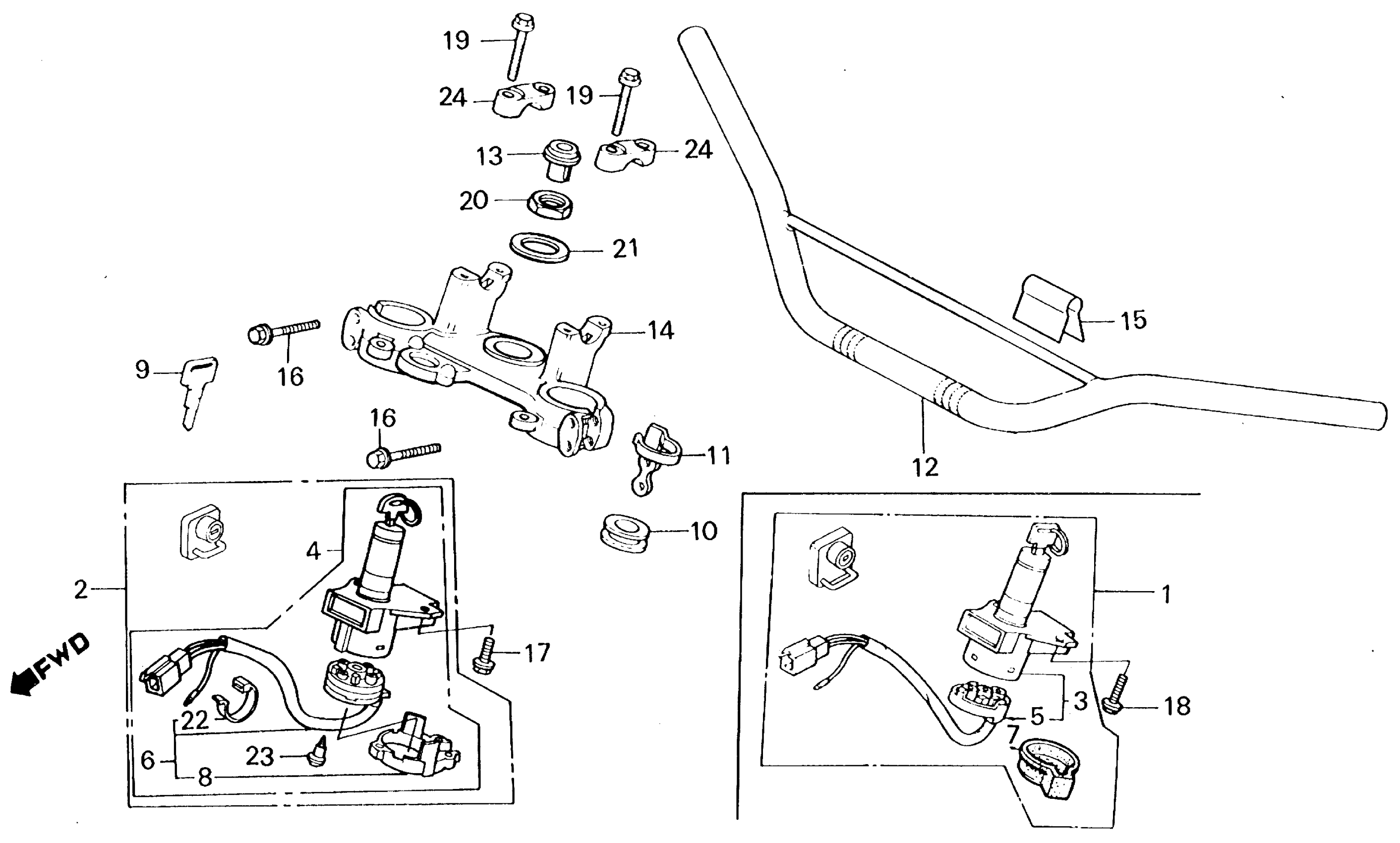

Honda XL250RA (84) MOTORCYCLE, JPN, VIN# JH2MD110-EK000009 TO JH2MD110-EK002307 HANDLEBAR Diagram

#

Description
Price

2

LOCK SET

35010-MG2-000

Unavailable

4

SWITCH ASSY., COMBINATION & LOCK

35100-MG2-000

Unavailable

5

BASE, CONTACT (NOT AVAILABLE) This part replaces 35101-KB7-007.

35101-KB7-017

Unavailable

5

BASE, CONTACT

35101-KB7-017

Unavailable

7

COVER, SWITCH

35102-KB7-007

Unavailable

9

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-KB7-810.

35121-KW3-771

$10.10

9

KEY, BLANK (TYPE1) | (Optional).

35121-KW3-771

$10.10

9

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-KB7-810.

35122-KW3-771

$10.10

9

KEY, BLANK (TYPE2) | (Optional).

35122-KW3-771

$10.10

10

GUIDE, CABLE (INNER)

45466-KA4-000

$6.51

11

GUIDE, BRAKE CABLE TOP

45469-KG0-000

Unavailable

12

HANDLEBAR (NOT AVAILABLE)

53100-KL4-000

Unavailable

13

CAP, STEERING STEM

53208-MC4-000

$5.33

14

BRIDGE, FORK TOP

53230-KL4-670

Unavailable

15

LABEL, STARTING PROCEDURE

87133-KL3-670

Unavailable

16

BOLT, FLANGE (8X45)

90103-KF0-000

$3.81

18

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

18

BOLT, FLANGE (8X19) This part replaces 90105-MA6-000.

90104-MJ1-000

$6.31

19

BOLT, FLANGE (8X36)

90111-362-000

$4.80

20

NUT, STEERING STEM

90304-425-000

$9.69

21

WASHER, STEERING STEM This part replaces 90503-KK0-000.

90503-425-000

$4.21

21

WASHER, STEERING STEM This part replaces 90503-428-870.

90503-425-000

$4.21

21

WASHER, STEERING STEM

90503-425-000

$4.21

24

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13
