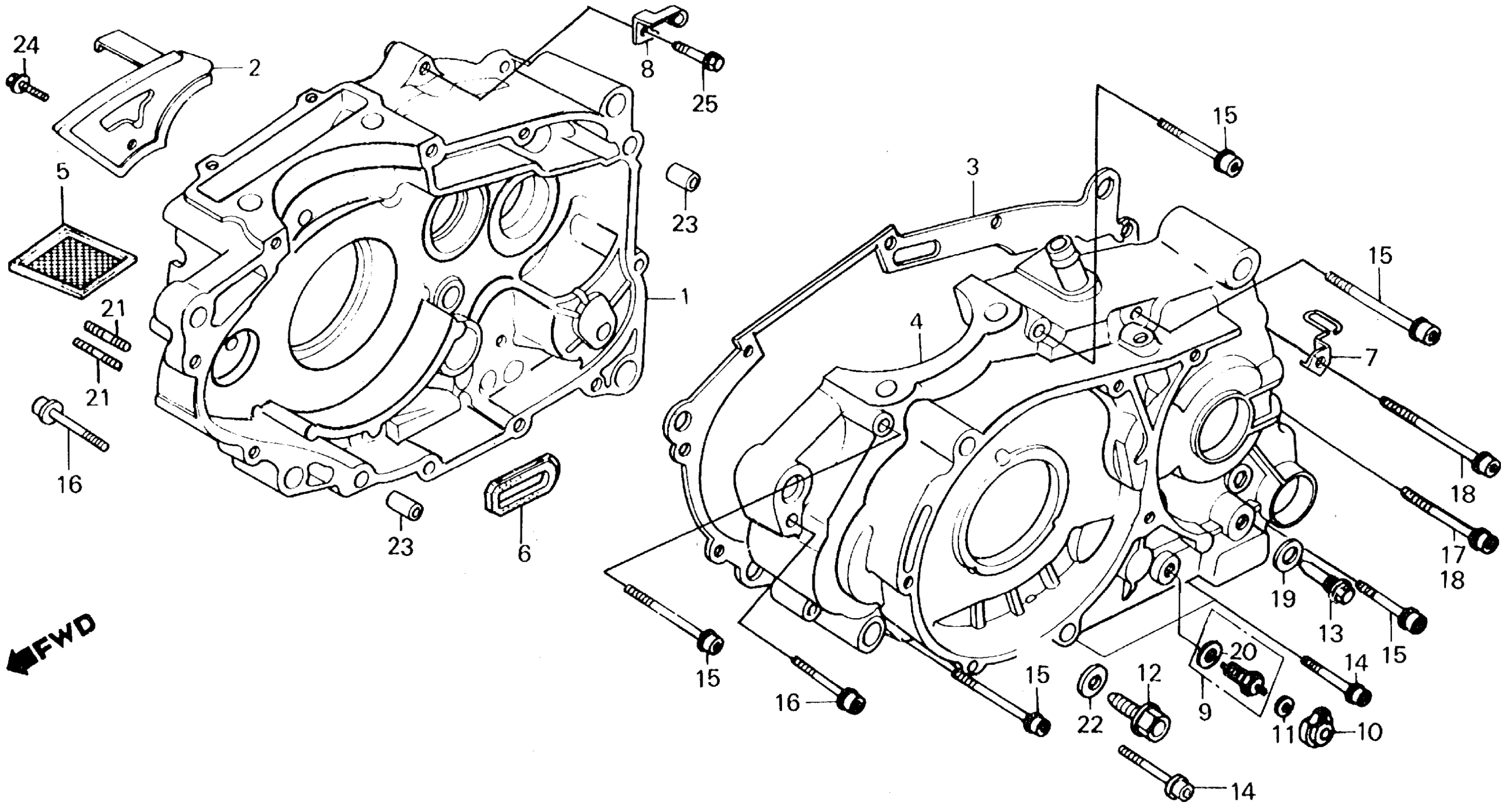

Honda XL250RA (84) MOTORCYCLE, JPN, VIN# JH2MD110-EK000009 TO JH2MD110-EK002307 CRANKCASE Diagram

CRANKCASE, R. This part replaces 11100-KL4-000.

11100-KL4-010

Unavailable

PLATE, BREATHER (NOT AVAILABLE)

11110-KK0-000

Unavailable

GASKET, CRANKCASE This part replaces 11191-KL4-000.

11191-KL4-306

Unavailable

CRANKCASE, L.

11200-KL4-000

Unavailable

SCREEN, OIL FILTER

15421-KK0-000

$7.70

RECEIVER, CLUTCH CABLE

22825-KK0-000

Unavailable

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-413-003.

35600-413-023

$20.82

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-413-013.

35600-413-023

$20.82

SWITCH ASSY., NEUTRAL (TOYO)

35600-413-023

$20.82

GUIDE, NEUTRAL SWITCH

35601-KL4-000

Unavailable

WASHER C, PARKING BRAKE

47134-567-000

$2.51

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.51

BOLT, GEARSHIFT RETURN SPRING STOPPER This part replaces 90021-KK0-003.

90021-KW3-010

$7.36

BOLT, GEARSHIFT RETURN SPRING STOPPER This part replaces 90021-KW3-000.

90021-KW3-010

$7.36

BOLT, GEARSHIFT RETURN SPRING STOPPER

90021-KW3-010

$7.36

BOLT, FLANGE SOCKET (6X55)

90091-KK1-000

Unavailable

BOLT, FLANGE SOCKET (6X70)

90092-KK1-000

Unavailable

BOLT, FLANGE SOCKET (6X35)

90092-MG3-000

$3.69

BOLT, FLANGE SOCKET (6X80) (NOT AVAILABLE)

90093-KE5-000

Unavailable

BOLT, FLANGE SOCKET (6X90)

90093-KK1-000

Unavailable

WASHER, SEAL (10MM)

90441-329-000

$3.60

BOLT 2, STUD (6X25)

92900-06025-0B

$1.73

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X16) This part replaces 96000-06016-07.

96001-06016-07

$1.49

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
