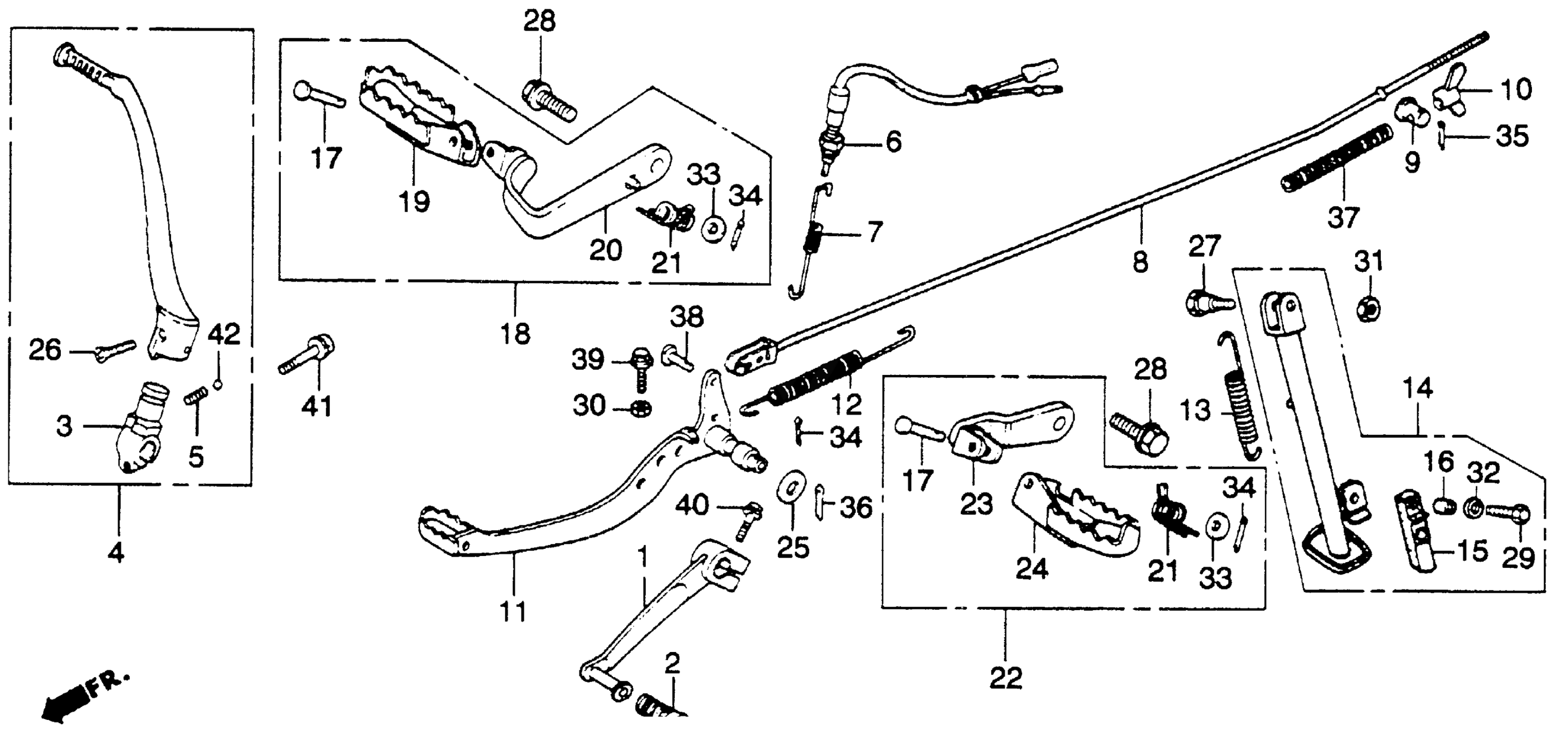

Honda XL250RA (83) MOTORCYCLE, JPN, VIN# JH2MD030-DM100001 TO JH2MD030-DM104157 FOOTPEGS + GEARSHIFT BRAKE PEDALS + STANDS 82-83 Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-KB7-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

JOINT, KICK ARM (NOT AVAILABLE)

28241-428-871

Unavailable

4

ARM, KICK STARTER This part replaces 28300-428-871.

28300-KB7-910

Unavailable

5

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

6

SWITCH ASSY., RR. STOP (TOYO) (NOT AVAILABLE)

35350-KB7-000

Unavailable

7

SPRING, STOP SWITCH This part replaces 35357-KB7-000.

35357-KB7-910

Unavailable

8

ROD, RR. BRAKE This part replaces 43451-KB7-000.

43451-KB8-000

Unavailable

9

JOINT, BRAKE ARM

43453-MC4-000

Unavailable

10

NUT, BRAKE ADJUST

43459-434-000

$15.27

11

PEDAL, BRAKE (NOT AVAILABLE)

46510-KB7-000

Unavailable

12

SPRING, BRAKE PEDAL This part replaces 46511-KB7-000.

46511-KB7-910

Unavailable

13

SPRING, SIDE STAND This part replaces 50535-429-000.

50535-KN5-670

$6.54

14

BAR ASSY., SIDE STAND (NOT AVAILABLE) This part replaces 50540-MC4-670.

50540-KL3-670

Unavailable

15

RUBBER, STAND

50548-356-700

$10.50

16

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

17

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

17

PIN, STEP BAR JOINT

50603-033-010

$3.30

18

ARM ASSY., R. FOOTPEG

50610-KB7-000

Unavailable

19

STEP, R.

50612-169-000

Unavailable

20

ARM, R. FOOTPEG (NOT AVAILABLE)

50615-KB7-000

Unavailable

21

SPRING, FOOTPEG RETURN

50617-MA0-770

$5.80

22

ARM ASSY., L. STEP

50620-KB7-000

Unavailable

23

ARM, L. STEP

50624-KB7-000

Unavailable

24

STEP, L.

50642-169-000

Unavailable

25

BUSH, WASHER

53312-657-000

$6.70

26

BOLT, KICK ARM

90101-329-000

$3.67

27

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

28

BOLT, FOOTPEG SETTING

90130-429-000

Unavailable

29

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

29

BOLT, HEX. (6X28) This part replaces 92000-06028-0A.

92101-06028-0A

$1.49

29

BOLT, HEX. (6X28) This part replaces 92100-06028.

92101-06028-0A

$1.49

29

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

30

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

31

NUT, HEX. (10MM)

94031-10000

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49

33

WASHER, PLAIN (8MM)

94101-08000

$1.49

34

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

34

PIN, COTTER (1.6X25)

94201-16250

$1.49

35

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

35

PIN, COTTER (2.0X22)

94201-20220

$1.49

35

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

35

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

35

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

35

PIN, COTTER (2.0X35)

94201-20350

$1.49

35

PIN, COTTER (2.0X22)

94201-29220

$1.49

36

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

36

PIN, COTTER (3.0X45)

94201-30450

$1.49

37

SPRING A, BRAKE ROD

95014-73100

$1.49

38

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

39

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

39

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

40

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

40

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

41

BOLT, FLANGE (8X28) This part replaces 95700-08028.

95701-08028-00

$1.49

41

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

41

BOLT, FLANGE (8X28) This part replaces 95700-08028-10.

95701-08028-00

$1.49

41

BOLT, FLANGE (8X28)

95701-08028-00

$1.49

41

BOLT, FLANGE (8X28) This part replaces 95900-08028-00.

95701-08028-00

$1.49

42

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
