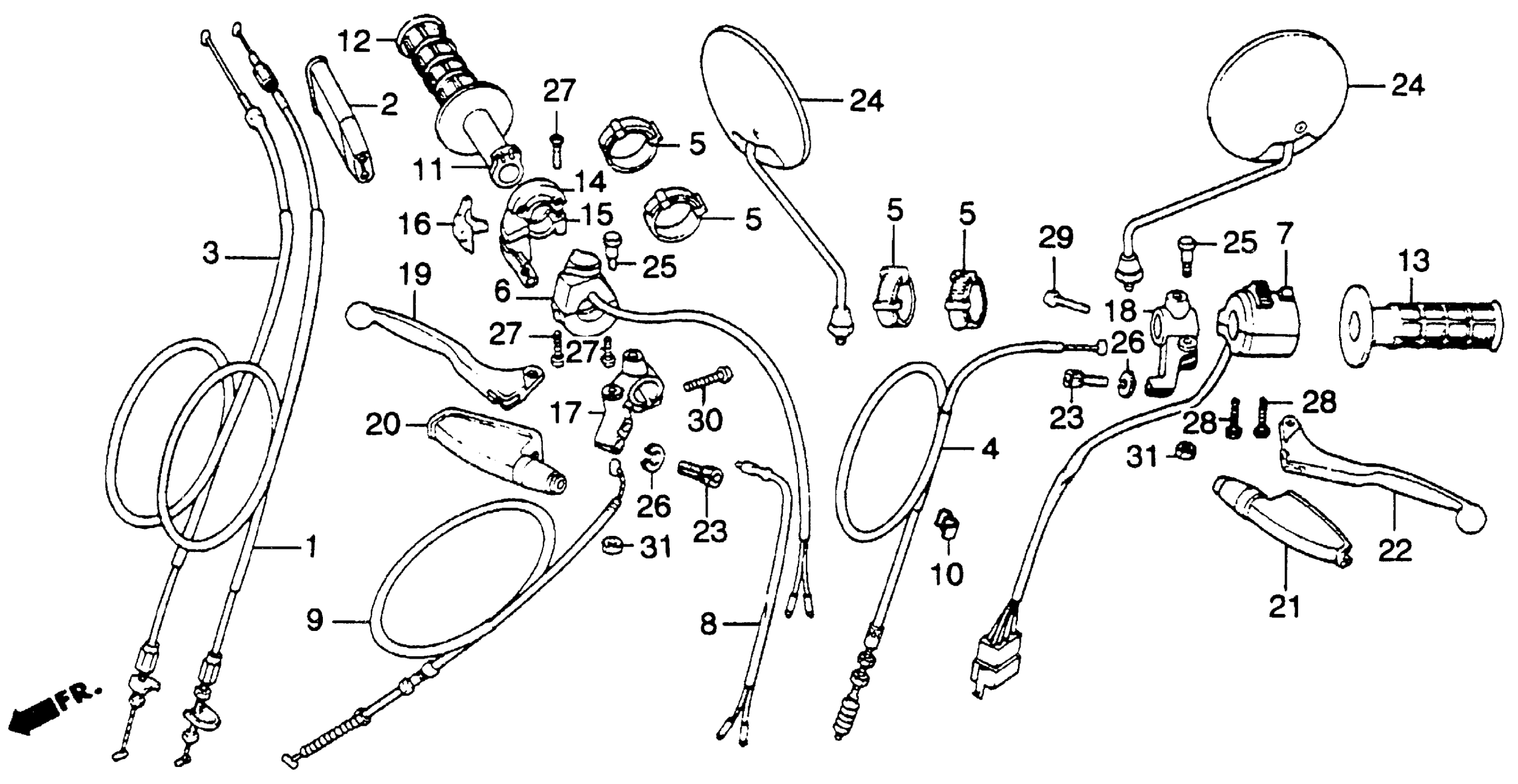

Honda XL250RA (83) MOTORCYCLE, JPN, VIN# JH2MD030-DM100001 TO JH2MD030-DM104157 CONTROL LEVERS + SWITCHES + CABLES 82-83 Diagram

#

Description
Price

1

CABLE A, THROTTLE This part replaces 17910-KB7-000.

17910-KB7-940

Unavailable

1

CABLE A, THROTTLE

17910-KB7-940

Unavailable

2

COVER, THROTTLE CABLE

17913-KB7-000

$10.60

3

CABLE B, THROTTLE This part replaces 17920-KB7-000.

17920-KB7-405

Unavailable

3

CABLE B, THROTTLE

17920-KB7-405

Unavailable

4

CABLE, CLUTCH This part replaces 22870-KB7-000.

22870-KB7-910

Unavailable

4

CABLE, CLUTCH

22870-KB7-910

Unavailable

5

BAND B1, CABLE

32161-404-000

$2.23

6

SWITCH ASSY., ENGINE STOP

35130-KB7-003

Unavailable

7

SWITCH ASSY., TURN SIGNAL (TOYO) (NOT AVAILABLE)

35200-KB7-781

Unavailable

8

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

8

SWITCH ASSY., FR. STOP This part replaces 35350-197-000.

35340-GAN-620

$19.20

9

CABLE, FR. BRAKE

45450-KB7-000

Unavailable

10

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

10

CLIP, FR. BRAKE CABLE This part replaces 45465-341-700.

45465-270-000

$4.94

11

PIPE, THROTTLE GRIP This part replaces 53141-429-000.

53141-429-010

$22.40

11

PIPE, THROTTLE GRIP

53141-429-010

$22.40

12

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

13

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

14

HOUSING, THROTTLE (UPPER)

53167-KB7-000

$42.32

15

HOUSING, THROTTLE (LOWER) (NOT AVAILABLE)

53168-KB7-000

Unavailable

16

SLIDER, THROTTLE CABLE

53169-KB7-000

$7.91

17

BRACKET, R. HANDLEBAR

53171-KB7-000

Unavailable

18

BRACKET, L. HANDLEBAR

53172-310-010

$56.00

19

LEVER, R. HANDLEBAR

53175-KB7-000

$27.80

20

COVER, R. HANDLEBAR

53176-428-010

$10.00

21

COVER, L. HANDLEBAR

53177-430-000

$11.00

22

LEVER, L. HANDLEBAR

53178-KB7-000

$30.39

23

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

24

MIRROR This part replaces 88110-KB7-000.

88110-KB7-010

Unavailable

24

MIRROR

88110-KB7-010

Unavailable

25

BOLT, HANDLE LEVER PIVOT

90114-428-870

$4.06

26

NUT, FIXING

90321-315-670

$7.31

26

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

27

SCREW, PAN (5X20)

93500-05020-0A

$1.49

28

SCREW, PAN (5X30)

93500-05030-0A

$1.49

29

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

30

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

30

SCREW, PAN (6X28)

93500-06028-0A

$1.49

31

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM)

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
