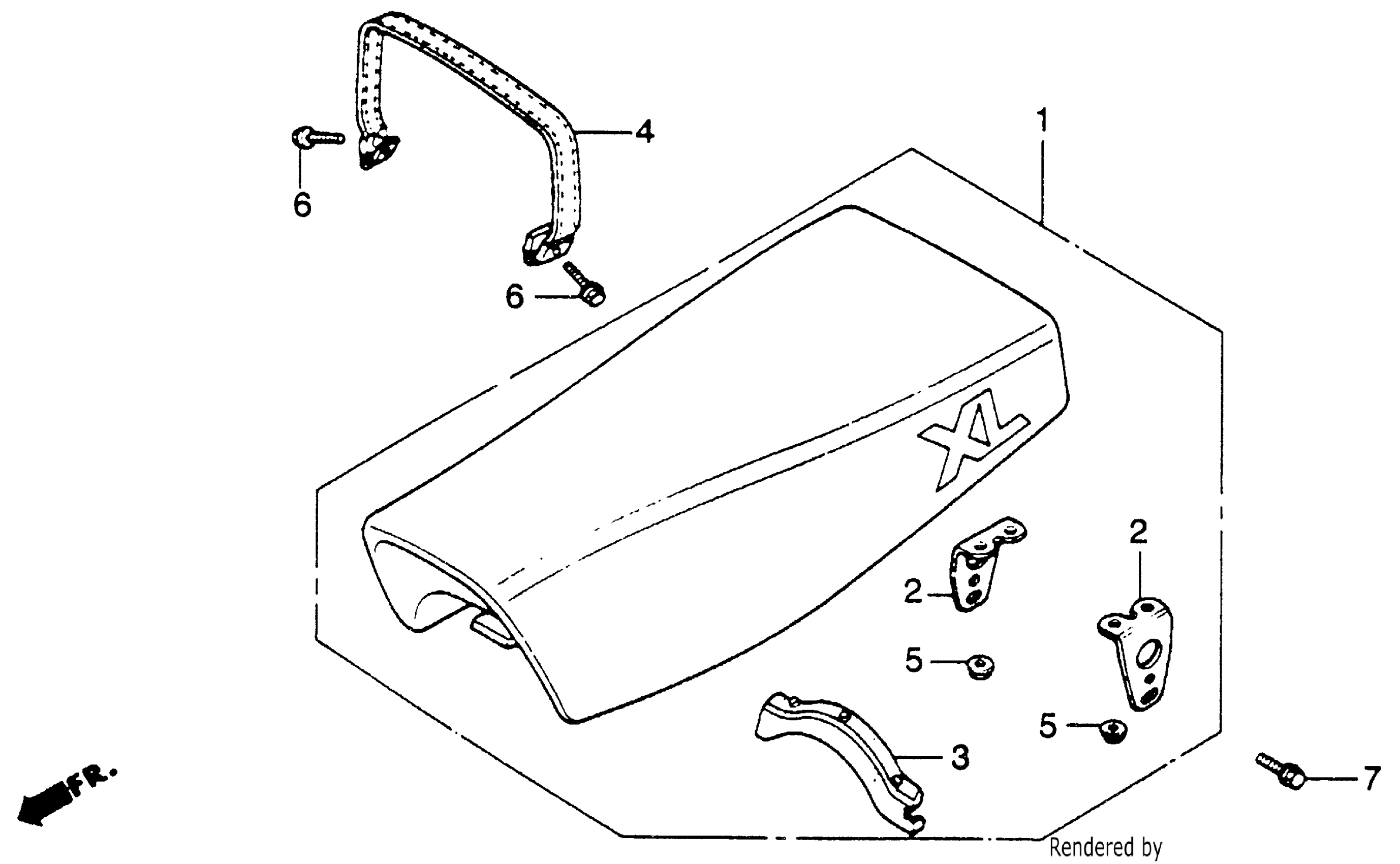

Honda XL250RA (82) MOTORCYCLE, JPN, VIN# JH2MD030-CM000002 TO JH2MD030-CM007566 SEAT 82-83 Diagram

#

Description

Price

1

SEAT ASSY., DOUBLE (NOT AVAILABLE) This part replaces 77200-KB7-670.

77200-MC4-670

Unavailable

2

STAY, SEAT SETTING (NOT AVAILABLE)

77205-MC4-000

Unavailable

3

RUBBER, SEAL

77207-MC4-000

Unavailable

4

SEAT BELT (NOT AVAILABLE)

77210-KB7-670

Unavailable

5

NUT, FLANGE (6MM)

94050-06080

$0.59

6

BOLT, FLANGE (6X22) This part replaces 95700-06022-08.

95701-06022-08

$1.64

6

BOLT, FLANGE (6X22)

95701-06022-08

$1.64

7

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.64

7

BOLT, FLANGE (8X16)

95701-08016-00

$1.64
