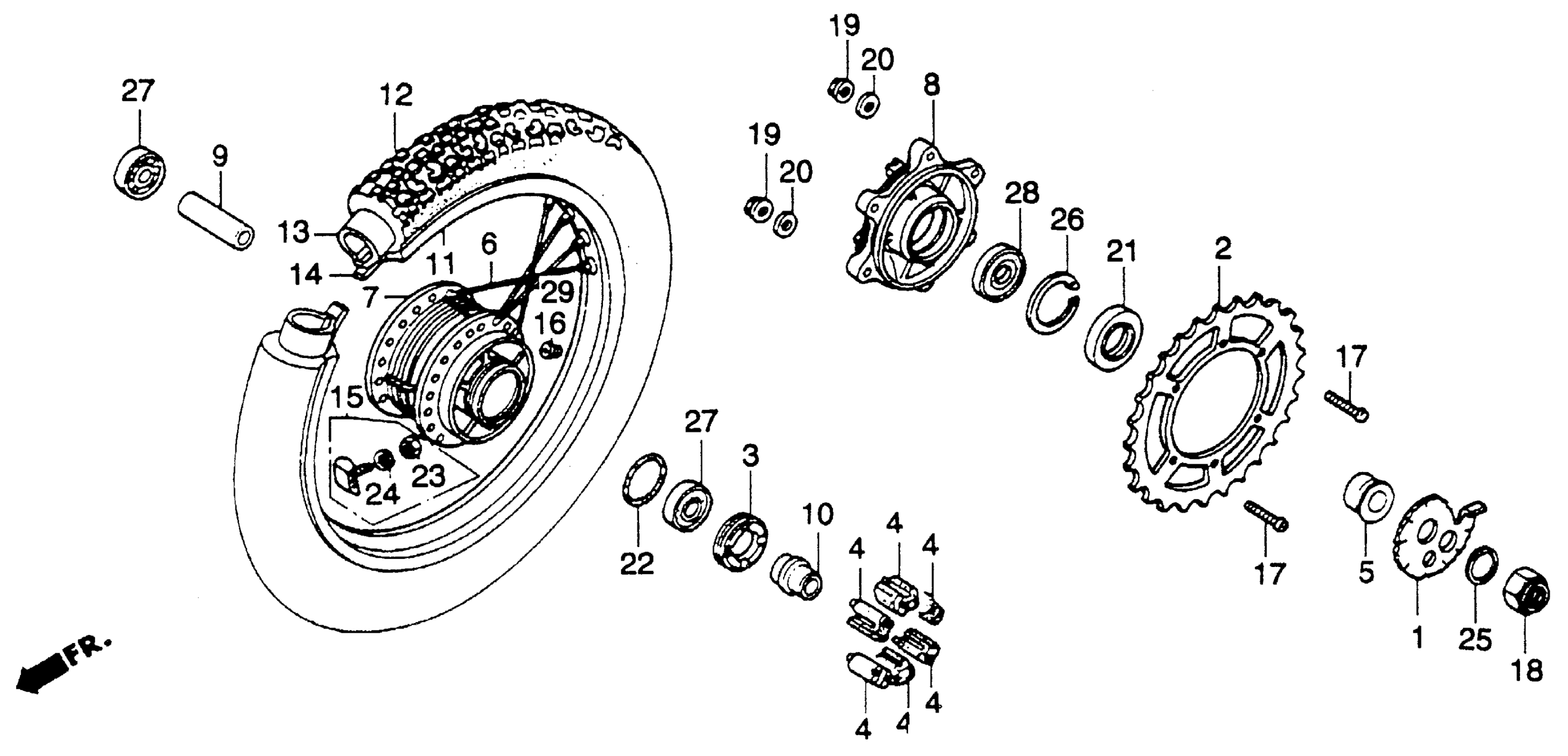

Honda XL250RA (82) MOTORCYCLE, JPN, VIN# JH2MD030-CM000002 TO JH2MD030-CM007566 REAR WHEEL 82-83 Diagram

#

Description
Price

1

ADJUSTER, L. CHAIN

40545-KB7-000

Unavailable

2

SPROCKET, FINAL DRIVEN (47T) (NOT AVAILABLE)

41201-KB7-670

Unavailable

3

RETAINER, RR. WHEEL BEARING

41231-MC4-000

Unavailable

4

RUBBER, RR. WHEEL DAMPER

41241-KB7-000

$11.02

5

COLLAR, RR. WHEEL

42312-MC4-000

Unavailable

6

SPOKE SET BS (8X160.5)

426A0-MC4-000

Unavailable

7

HUB, RR. WHEEL

42601-KB7-000

Unavailable

8

FLANGE, FINAL DRIVEN

42611-KB7-000

Unavailable

9

COLLAR, RR. AXLE DISTANCE

42620-KAZ-000

Unavailable

9

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MC4-000.

42620-KAZ-000

Unavailable

9

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MK5-680.

42620-KAZ-000

Unavailable

10

COLLAR B, RR. AXLE DISTANCE This part replaces 42625-MC4-000.

42625-MAN-620

$19.64

11

RIM, RR. WHEEL (2.15X17) (NOT AVAILABLE)

42701-MC4-003

Unavailable

12

TIRE (4.60-17) (4PR) This part replaces 42711-MC4-671.

42711-MC4-005

Unavailable

12

TIRE, RR. (4.60-17) (4PR) (INOUE)

42711-MC4-672

Unavailable

13

TUBE, TIRE (5.10-17) (INOUE) This part replaces 08400-37100.

42712-MA0-005

Unavailable

13

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-KB7-902.

42712-MA0-005

Unavailable

13

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MA0-003.

42712-MA0-005

Unavailable

13

TUBE, TIRE (5.10-17) (INOUE)

42712-MA0-005

Unavailable

13

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MC4-005.

42712-MA0-005

Unavailable

13

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MC4-009.

42712-MA0-005

Unavailable

13

TUBE, TIRE (120/90-17) (BS)

42712-MN9-003

Unavailable

13

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-003.

42712-MA0-005

Unavailable

13

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-004.

42712-MA0-005

Unavailable

14

FLAP, TIRE (2.15X17) (INOUE)

42713-MA0-005

Unavailable

14

FLAP, TIRE (17) (INOUE)

42713-102-005

$6.54

14

FLAP, TIRE (17) (INOUE) This part replaces 42713-102-009.

42713-102-005

$6.54

15

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

16

CAP, RIM HOLE

42717-329-000

$4.21

17

BOLT, DRIVEN SPROCKET FIXING

90128-428-020

$7.87

18

NUT, AXLE (16MM)

90305-MA0-003

$7.31

19

NUT, FLANGE (8MM)

90309-428-731

$3.35

20

WASHER (8MM)

90465-MC4-000

$2.51

21

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.98

21

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-005.

91252-MC4-013

$6.98

21

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

22

O-RING (54X2) This part replaces 91302-317-700.

91307-MB0-003

$3.23

22

O-RING (54X2) This part replaces 91307-MB0-000.

91307-MB0-003

$3.23

22

O-RING (54X2)

91307-MB0-003

$3.23

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

WASHER, SPRING (8MM)

94111-08000

$1.49

25

WASHER, SPRING (16MM)

94111-16000

$1.49

26

CIRCLIP (INNER) (47MM)

94520-47000

$2.34

26

CIRCLIP (INNER) (47MM) (NOT AVAILABLE)

94521-47000

$2.39

26

CIRCLIP (INNER) (47MM) This part replaces 94524-47000.

94521-47000

$2.39

27

BEARING, RADIAL BALL (6203U)

96140-62030-10

$11.91

28

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

29

SPOKE SET BS (8X160)

97820-69160-Q0

$3.86
