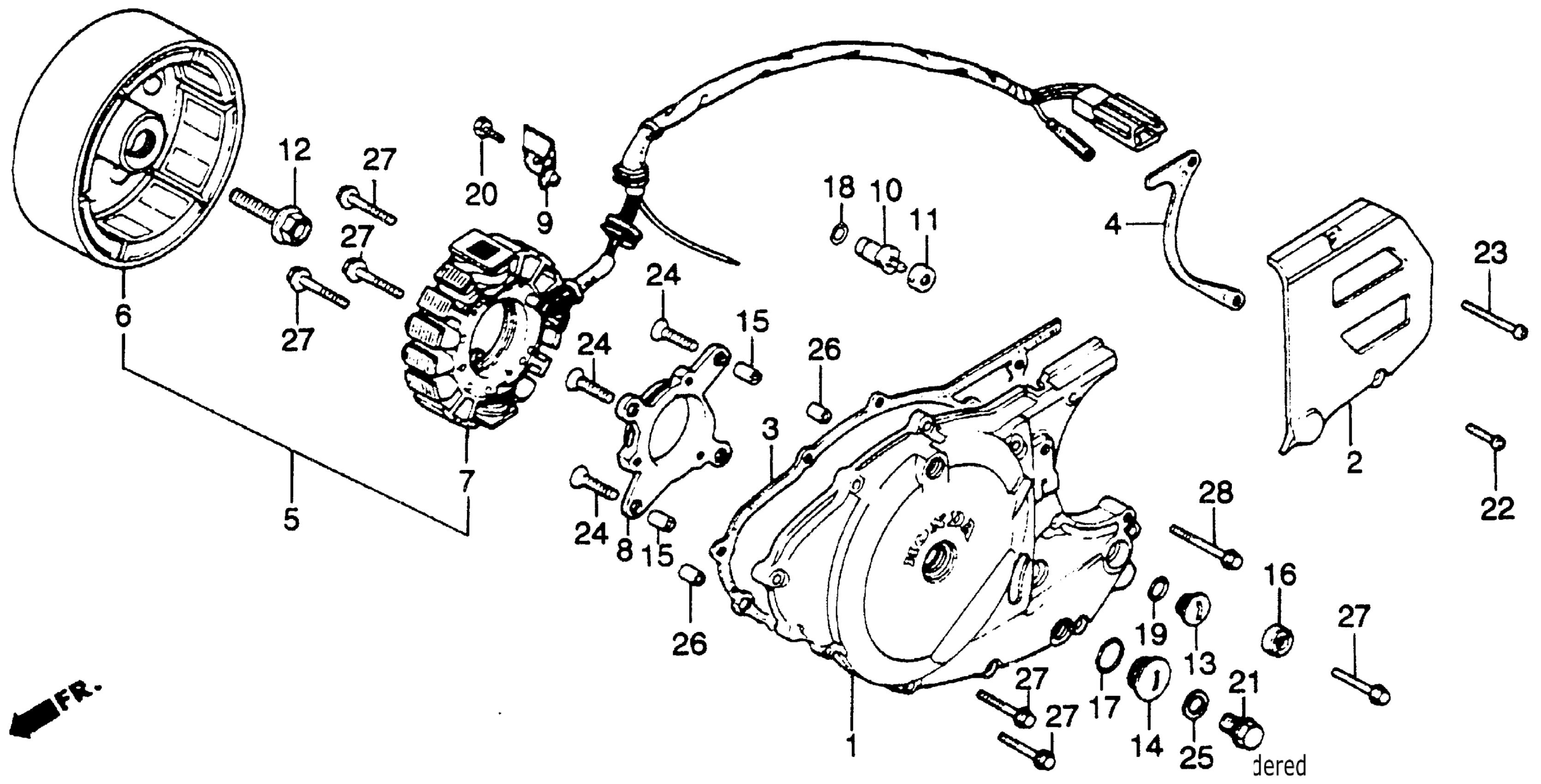

Honda XL250RA (82) MOTORCYCLE, JPN, VIN# JH2MD030-CM000002 TO JH2MD030-CM007566 CRANKCASE COVER 82-83 Diagram

#

Description
Price

1

COVER, L. CASE (NOT AVAILABLE)

11341-KB7-000

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11351-428-900

Unavailable

3

GASKET, L. CRANKCASE COVER This part replaces 11395-429-000.

11395-429-306

Unavailable

3

GASKET, L. CRANKCASE COVER

11395-429-306

Unavailable

4

GASKET, R. COVER This part replaces 11396-428-300.

11396-428-306

Unavailable

5

ALTERNATOR ASSY.

31100-KB7-004

Unavailable

6

ROTOR

31110-KB7-004

Unavailable

7

STATOR (DENSO) This part replaces 31120-KB7-004.

31120-KB7-415

Unavailable

7

STATOR (DENSO) This part replaces 31120-KB7-405.

31120-KB7-415

Unavailable

7

STATOR

31120-KB7-415

Unavailable

8

SPACER, STATOR (NOT AVAILABLE)

31125-471-700

Unavailable

9

CLAMP, CABLE

32111-428-000

Unavailable

10

CONTACT ASSY., NEUTRAL SWITCH

35750-028-000

Unavailable

11

SPACER, NEUTRAL SWITCH (NOT AVAILABLE)

35752-329-310

Unavailable

12

BOLT, FLANGE (12X50)

90023-471-000

$13.00

13

CAP, ALTERNATOR

90084-471-000

Unavailable

14

CAP (30MM) This part replaces 90087-471-000.

90087-MR1-000

$19.89

15

PIN, DOWEL (8X5) (NOT AVAILABLE)

90701-471-000

Unavailable

16

OIL SEAL (12X25X7)

91201-362-000

$5.55

17

O-RING (27X2.0)

91301-028-000

$2.92

17

O-RING (27X2) (ARAI) This part replaces 91305-KF0-000.

91305-KF0-003

$2.92

17

O-RING (27X2.0)

91305-KF0-003

$2.92

18

O-RING (7X1.7)

91301-473-003

$2.72

18

O-RING (6.8X1.9) This part replaces 91302-HA0-004.

91306-PJ4-000

$3.01

18

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

19

O-RING (13.8X2.5)

91303-MG7-003

$3.12

19

O-RING (13.8X2.5)

91303-377-000

$3.42

19

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

20

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

21

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

22

SCREW, PAN (6X18) | Use up to Engine SN 5010398 This part replaces 93500-06018.

93500-06018-0A

$1.49

22

SCREW, PAN (6X18) | Use up to Engine SN 5010398

93500-06018-0A

$1.49

22

BOLT, FLANGE (6X18) | Use from Engine SN 5010399 This part replaces 96000-06018-00.

96001-06018-00

$1.80

22

BOLT, FLANGE (6X18) | Use from Engine SN 5010399

96001-06018-00

$1.80

23

SCREW, PAN (6X40) | Use up to Engine SN 5010398 This part replaces 93500-06040.

93500-06040-0A

$1.49

23

SCREW, PAN (6X40) | Use up to Engine SN 5010398

93500-06040-0A

$1.49

23

BOLT, FLANGE (6X40) | Use from Engine SN 5010399 This part replaces 96000-06040-00.

96001-06040-00

$2.16

23

BOLT, FLANGE (6X40) | Use from Engine SN 5010399

96001-06040-00

$2.16

24

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

24

SCREW, FLAT (6X20)

93600-06020-0A

$1.49

25

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

26

PIN A, DOWEL (10X16)

94301-10160

$2.28

27

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

27

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

28

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

28

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
