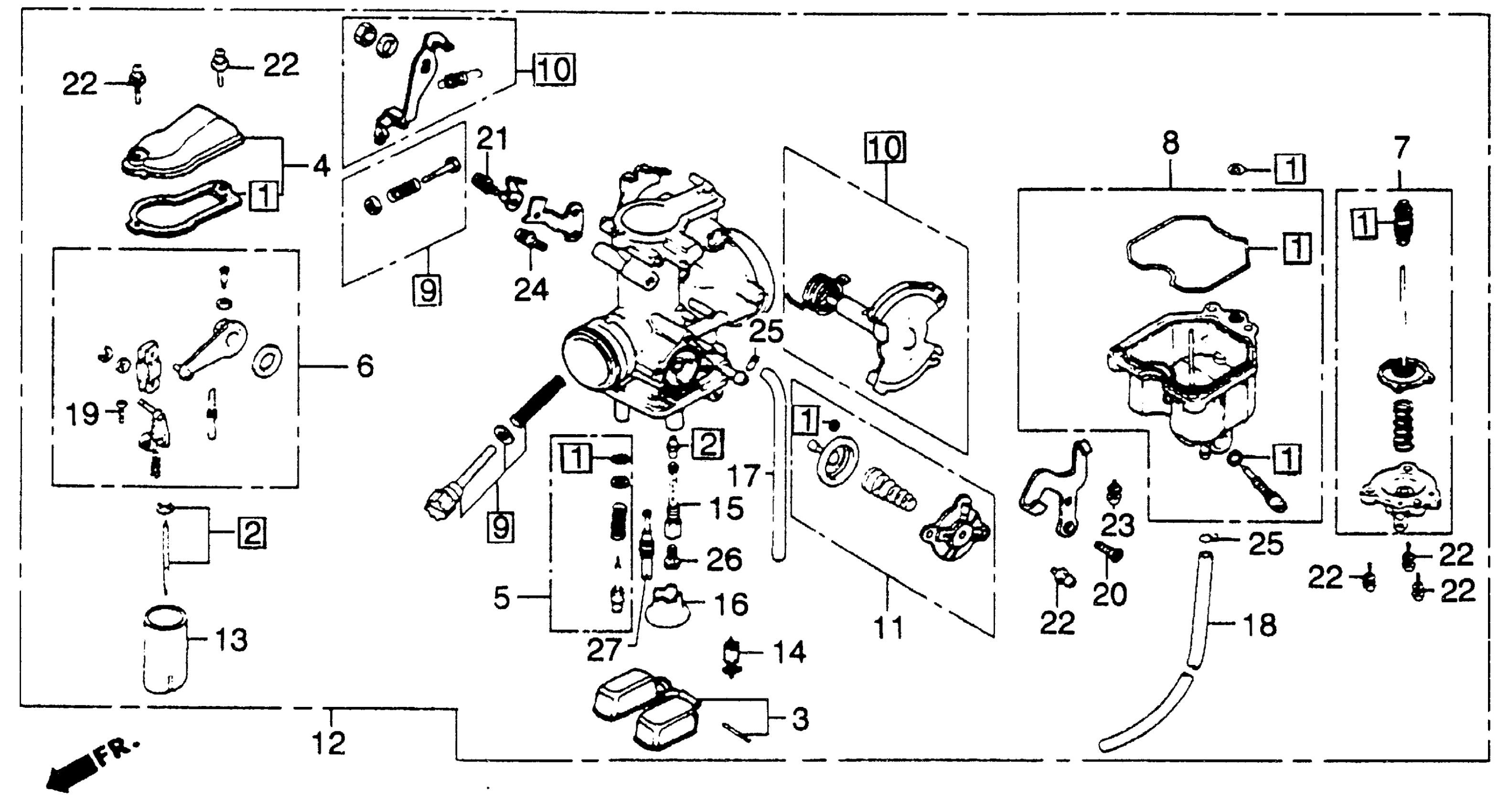

Honda XL250RA (82) MOTORCYCLE, JPN, VIN# JH2MD030-CM000002 TO JH2MD030-CM007566 CARBURETOR 82-83 Diagram

#

Description
Price

1

GASKET SET

16010-428-671

Unavailable

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-KB7-671

Unavailable

3

FLOAT SET

16013-439-921

$76.36

4

TOP SET

16014-KCE-771

Unavailable

4

TOP SET This part replaces 16014-KR6-004.

16014-KCE-771

Unavailable

4

TOP SET This part replaces 16014-385-680.

16014-KCE-771

Unavailable

5

SCREW SET A

16016-KC2-970

$25.35

5

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

6

ARM SET, LINK

16018-428-671

$117.16

7

DIAPHRAGM SET, PUMP (NOT AVAILABLE)

16021-KB7-671

Unavailable

8

CHAMBER SET, FLOAT

16015-428-771

Unavailable

8

CHAMBER SET, FLOAT This part replaces 16023-426-003.

16015-428-771

Unavailable

9

SCREW SET B (NOT AVAILABLE)

16028-435-771

Unavailable

10

LINK SET, THROTTLE (NOT AVAILABLE)

16032-KB7-004

Unavailable

11

VALVE SET, AIR CUT This part replaces 16048-KB7-004.

16048-KB7-901

$149.08

11

VALVE SET, AIR CUT

16048-KB7-901

$149.08

12

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-KB7-671.

16100-KB7-673

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-KB7-672.

16100-KB7-673

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE)

16100-KB7-673

Unavailable

13

VALVE, THROTTLE This part replaces 16111-428-671.

16111-471-004

Unavailable

13

VALVE, THROTTLE

16111-471-004

Unavailable

14

VALVE, FLOAT

16155-397-971

$41.45

15

HOLDER, NEEDLE JET

16165-473-004

Unavailable

16

HOLDER, JET

16168-382-014

$9.81

17

TUBE, FUEL This part replaces 16198-HB5-405.

16199-KG4-405

$9.49

17

TUBE, FUEL This part replaces 16199-355-701.

16199-KG4-405

$9.49

18

TUBE, FUEL This part replaces 16199-402-004.

16199-KG4-405

$9.49

19

SCREW, PAN (3X8)

93500-03008-0H

$1.49

20

SCREW, FLAT (5X10)

93600-05010-0H

$1.49

21

SCREW-WASHER (4X8)

93892-04008-08

$1.49

22

SCREW-WASHER (4X12)

93892-04012-08

$1.49

23

SCREW-WASHER (4X16)

93892-04016-08

$1.49

24

SCREW-WASHER (5X10)

93892-05010-08

$1.49

25

CLIP, TUBE (B7)

95002-02070

$1.80

26

JET (#110) This part replaces 99101-GHB-1100.

99101-MBA-1100

$9.11

26

JET (#110) This part replaces 99101-393-1100.

99101-MBA-1100

$9.11

27

JET, SLOW (#38) This part replaces 99103-KA3-0380.

99103-KBA-0380

$13.18

27

JET, SLOW (#38)

99103-KBA-0380

$13.18

27

JET, SLOW (#38) This part replaces 99103-440-0380.

99103-KBA-0380

$13.18
