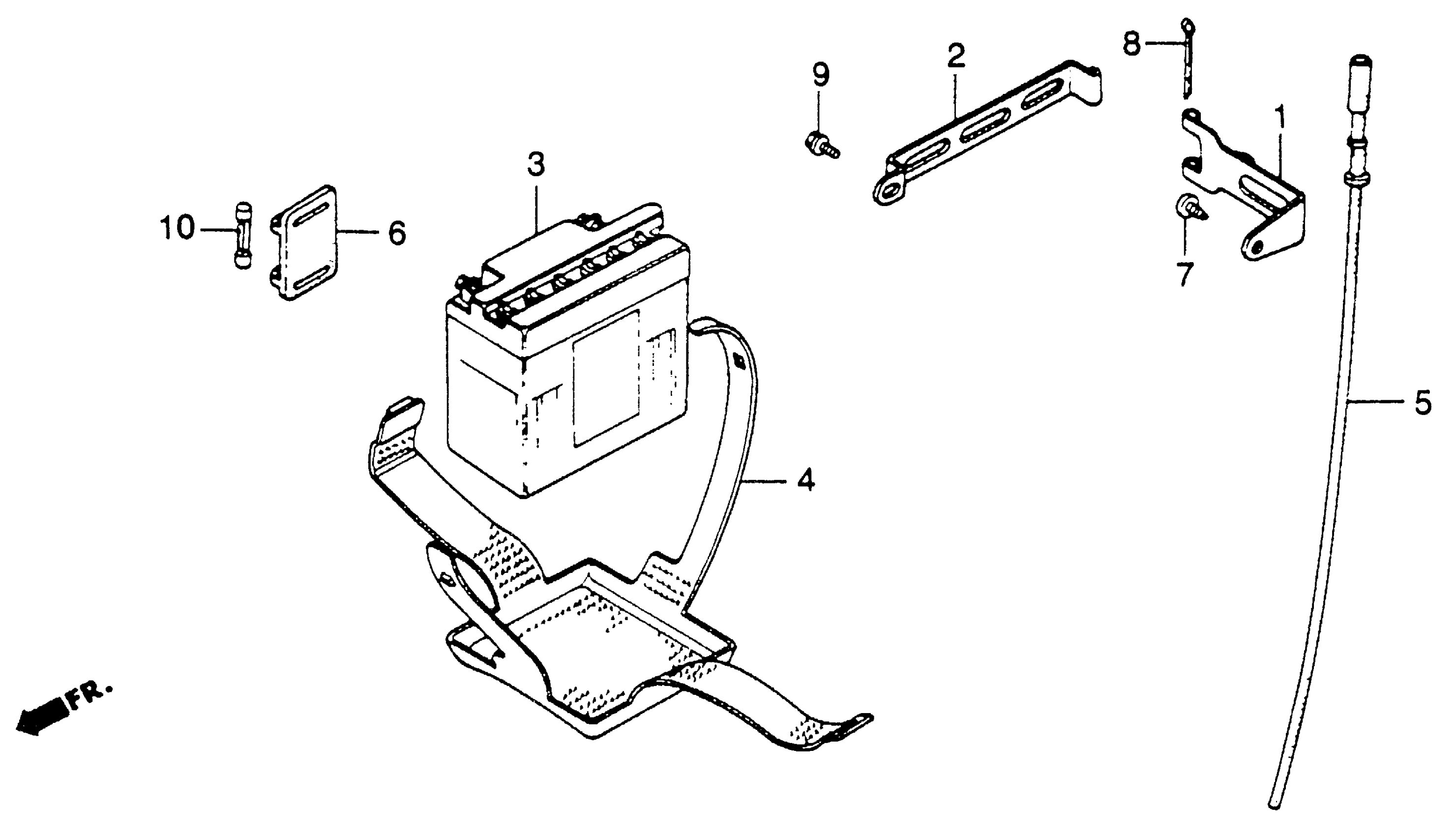

Honda XL250RA (82) MOTORCYCLE, JPN, VIN# JH2MD030-CM000002 TO JH2MD030-CM007566 BATTERY 82-83 Diagram

HINGE A, BATTERY

17233-KB7-000

Unavailable

HINGE B, BATTERY (NOT AVAILABLE)

17234-KB7-000

Unavailable

BATTERY (YB3L-A) This part replaces 31500-KY0-981.

31500-KY0-981AH

Unavailable

BATTERY (YB3L-A) This part replaces 31500-MC4-671.

31500-KY0-981AH

Unavailable

BATTERY (YB3L-A) This part replaces 31500-MC4-672.

31500-KY0-981AH

Unavailable

BATTERY (YB3L-A) This part replaces 31500-MC4-673.

31500-KY0-981AH

Unavailable

BAND, BATTERY SETTING

31502-KB7-003

Unavailable

TUBE, BATTERY BREATHER (NOT AVAILABLE)

31503-KB7-000

Unavailable

CASE, FUSE (NOT AVAILABLE)

38205-115-000

Unavailable

SCREW, TAPPING (6X16)

93903-36220

$1.49

PIN, COTTER (3.0X35) This part replaces 94201-03350.

94201-30350

$1.49

PIN, COTTER (3.0X35)

94201-30350

$1.49

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

BOLT, FLANGE (6X10) This part replaces 95700-06010-18.

95700-06010-08

$1.61

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

FUSE A (10A)

98200-11000

$1.80
