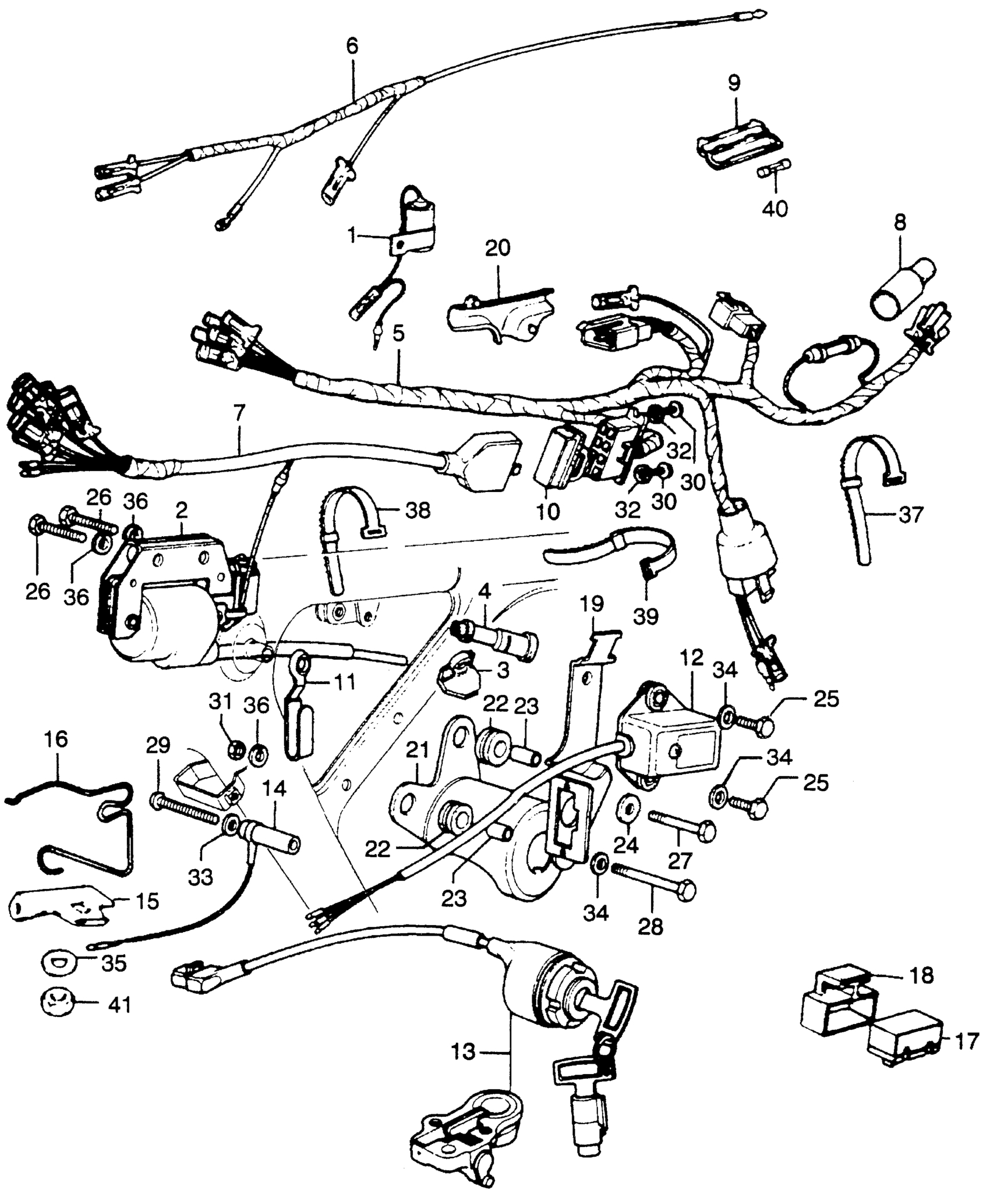

Honda XL250K2A MOTORCYCLE, JPN, VIN# XL250-3000001 WIRE HARNESS Diagram

CONDENSER ASSY.

30250-329-305

Unavailable

COIL, IGNITION This part replaces 30500-356-003.

30500-950-405

$118.02

COIL, IGNITION

30500-950-405

$118.02

CAP ASSY. B, NOISE SUPPRESSOR (NOT AVAILABLE)

30710-356-000

Unavailable

WIRE HARNESS A (NOT AVAILABLE)

32100-329-010

Unavailable

WIRE HARNESS B (NOT AVAILABLE)

32105-329-010

Unavailable

COVER, WIRE HARNESS CONNECTOR

32108-046-000

Unavailable

CASE, FUSE (10A) (NOT AVAILABLE)

32120-329-000

Unavailable

COVER, CONNECTOR (NOT AVAILABLE)

32138-329-300

Unavailable

CLIP, WIRE HARNESS (NOT AVAILABLE)

32171-329-000

Unavailable

REGULATOR ASSY., POINTLESS (KOKUSAN)

33140-121-003

Unavailable

LOCK SET (NOT AVAILABLE)

35010-361-007

Unavailable

LOCK SET (NOT AVAILABLE) This part replaces 35011-356-305.

35010-361-007

Unavailable

RESISTOR (NOT AVAILABLE)

35400-329-671

Unavailable

STAY, RESISTOR (NOT AVAILABLE)

35403-356-670

Unavailable

CLAMP A, TACHOMETER CABLE (NOT AVAILABLE)

37262-356-000

Unavailable

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-107-670

Unavailable

BRACKET, MAIN SWITCH *NH1* (BLACK) (NOT AVAILABLE)

50375-329-000B

Unavailable

BRACKET, MAIN SWITCH *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50375-356-000B.

50375-329-000B

Unavailable

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

SCREW, PAN (5X55)

93500-05055-0A

$1.20

SCREW, TAPPING (4X8) (NOT AVAILABLE)

93901-24110

Unavailable

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

WASHER, PLAIN (4MM)

94101-04000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (10MM)

94101-10000

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

BAND B1, CABLE

95014-62100

$1.64

BAND B2, CABLE HARNESS

95014-62200

$2.11

BAND B3, CABLE HARNESS

95014-62300

$2.25

FUSE A (10A)

98200-11000

$1.80

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

NUT, HEX. (10MM)

94030-10000

$1.49

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49
