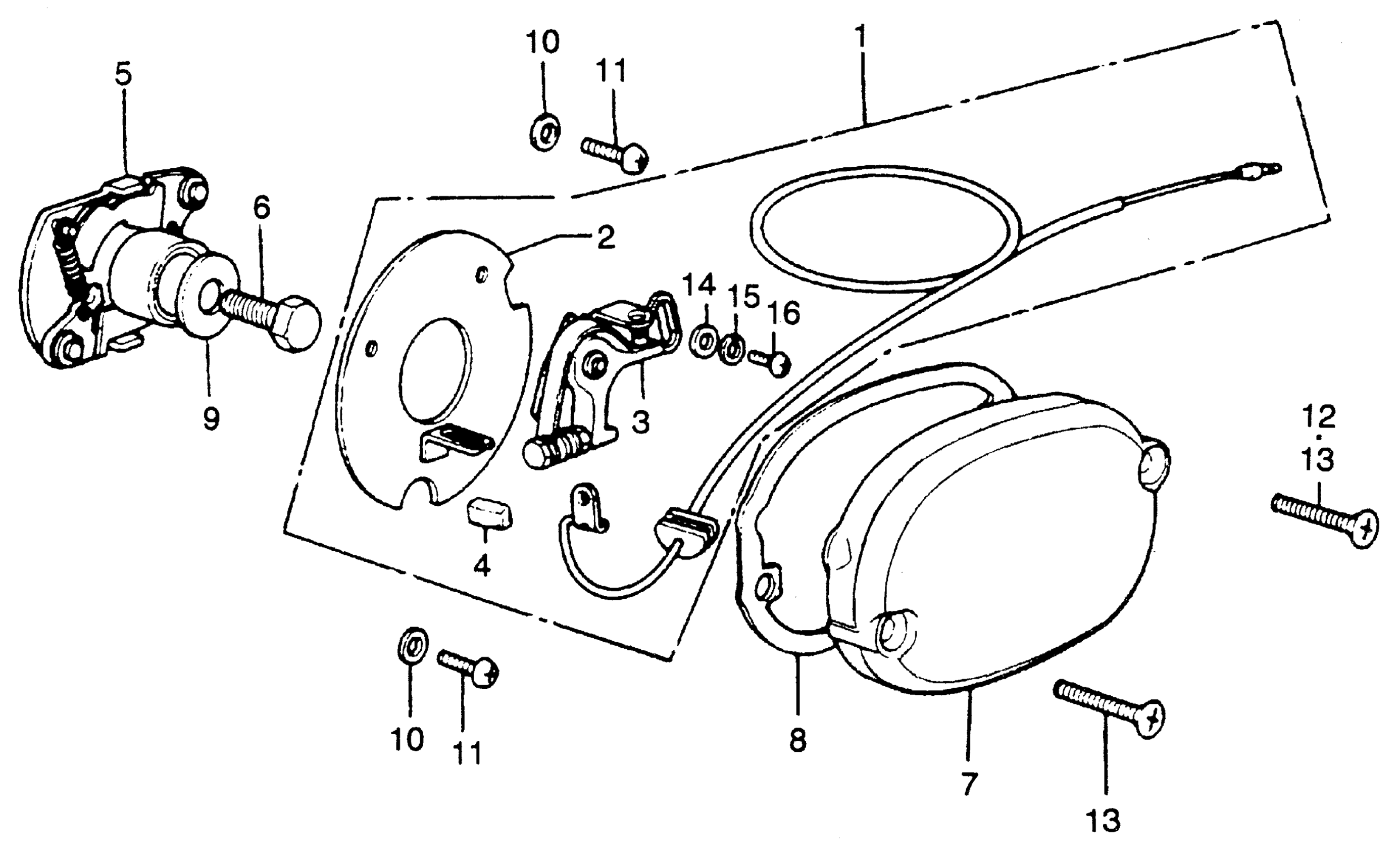

Honda XL250K2A MOTORCYCLE, JPN, VIN# XL250-3000001 POINTS + ADVANCER Diagram

#

Description
Price

1

POINTS ASSY. (DENSO) (NOT AVAILABLE)

30200-329-004

Unavailable

2

PLATE, POINTS BASE (DENSO)

30201-329-004

Unavailable

3

POINTS (DENSO)

30202-107-004

$43.04

3

POINTS (TOYO)

30202-107-154

$27.89

4

FELT, OIL (KOKUSAN) (NOT AVAILABLE) This part replaces 30205-028-004.

30205-028-003

Unavailable

5

ADVANCER ASSY., SPARK (DENSO)

30220-329-024

Unavailable

6

BOLT, SPARK ADVANCER SETTING (NOT AVAILABLE)

30225-246-004

Unavailable

7

COVER, POINTS (NOT AVAILABLE)

30370-329-700

Unavailable

8

GASKET, POINTS COVER This part replaces 30372-329-000.

30372-329-306

Unavailable

8

GASKET, POINTS COVER

30372-329-306

Unavailable

9

WASHER, GEARSHIFT DRUM STOPPER (NOT AVAILABLE) This part replaces 90417-035-303.

90417-302-000

Unavailable

10

WASHER (5MM)

90482-028-000

$2.09

11

SCREW, PAN (5X10)

93500-05010-0A

$1.49

12

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

13

SCREW, OVAL (5X22)

93700-05022-0B

$1.49

14

WASHER, PLAIN (4MM)

94101-04000

$1.49

15

WASHER, SPRING (4MM)

94111-04000

$1.49

16

SCREW, PAN (4X6) This part replaces 99500-04006-0A.

93500-04006-0A

$1.49

16

SCREW, PAN (4X6) This part replaces 99500-04007-0A.

93500-04006-0A

$1.49
