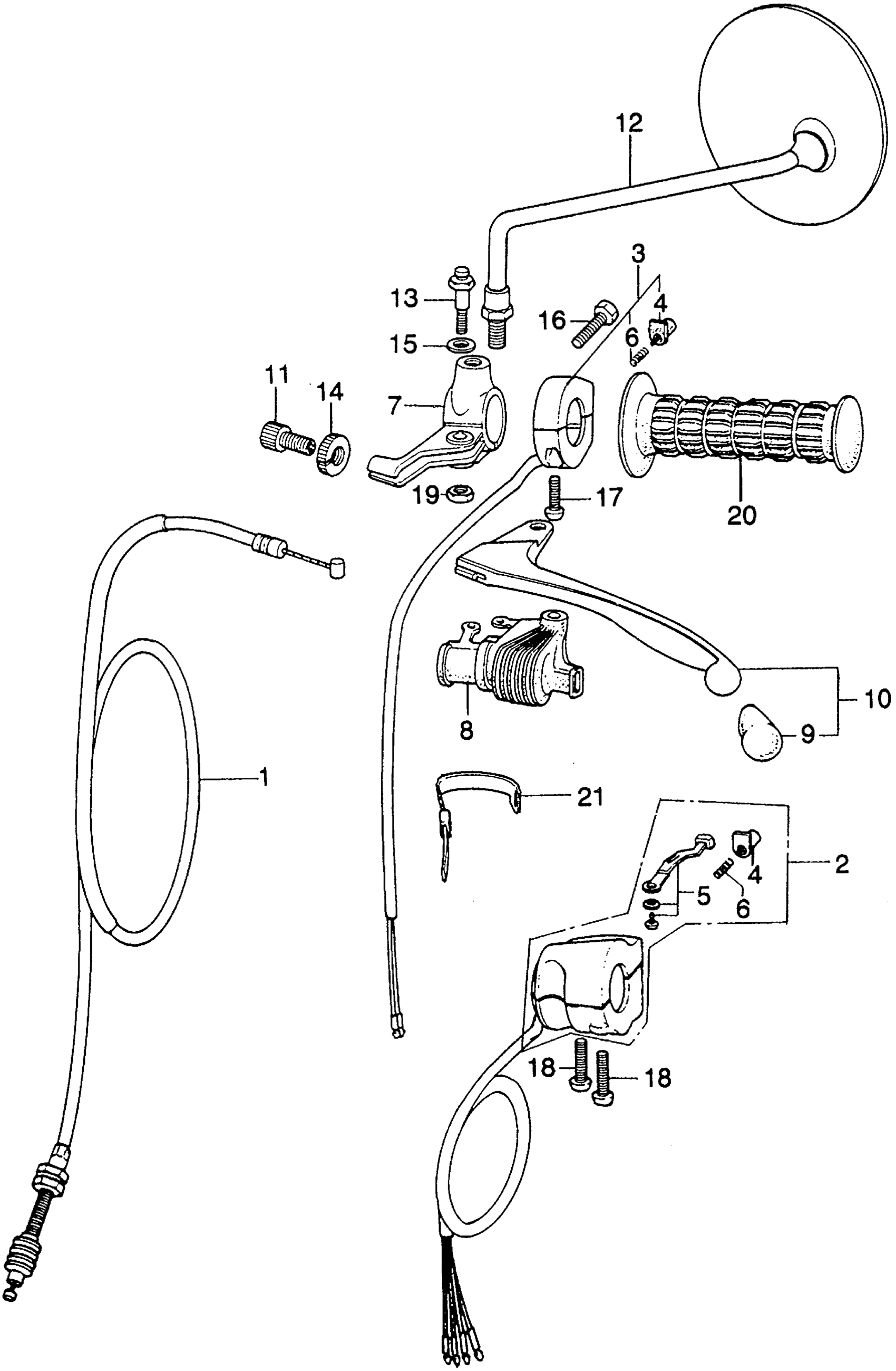

Honda XL250K2A MOTORCYCLE, JPN, VIN# XL250-3000001 LEFT SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, CLUTCH

22870-KB4-000

$37.61

1

CABLE, CLUTCH This part replaces 22870-329-000.

22870-KB4-000

$37.61

1

CABLE, CLUTCH This part replaces 22870-356-000.

22870-KB4-000

$37.61

1

CABLE, CLUTCH This part replaces 22870-400-000.

22870-KB4-000

$37.61

2

SWITCH ASSY., TURN SIGNAL & HORN (NOT AVAILABLE)

35200-356-701

Unavailable

7

BRACKET, L. HANDLEBAR

53172-310-010

$56.00

8

COVER, L. CONTROL LEVER

53179-329-000

$15.07

10

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

10

LEVER, L. HANDLE

53178-369-700

$28.35

10

LEVER, L. HANDLE This part replaces 53190-329-000.

53178-369-700

$28.35

10

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

11

BOLT, CLUTCH CABLE ADJUSTING

53192-312-000

$7.91

12

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-074-000.

88220-329-730

Unavailable

12

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-329-730.

88220-329-730

Unavailable

13

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.75

14

NUT, FIXING

90321-315-670

$7.31

14

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

16

BOLT, HEX. (6X25) This part replaces 93000-06025.

93101-06025-0A

$1.49

16

BOLT, HEX. (6X25) This part replaces 93000-06025-0A.

93101-06025-0A

$1.49

16

BOLT, HEX. (6X25)

93101-06025-0A

$1.49

17

BOLT, HEX. (6X25) This part replaces 93000-06025.

93101-06025-0A

$1.49

17

BOLT, HEX. (6X25) This part replaces 93000-06025-0A.

93101-06025-0A

$1.49

17

BOLT, HEX. (6X25)

93101-06025-0A

$1.49

19

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

20

GRIP, L. HANDLE

53166-362-000

$15.86

21

BAND B1, CABLE

95014-62100

$1.64
