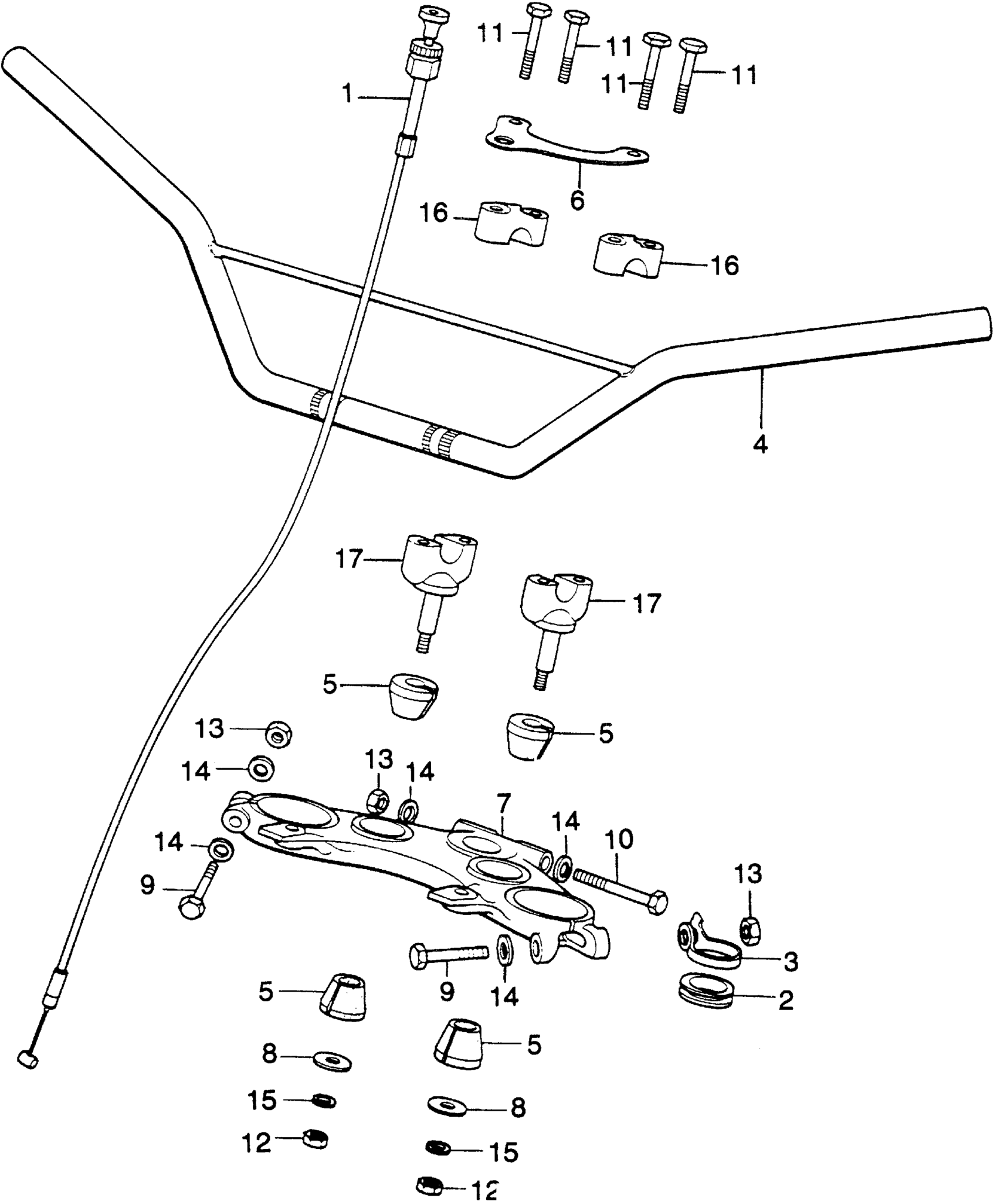

Honda XL250K2A MOTORCYCLE, JPN, VIN# XL250-3000001 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

CABLE, CHOKE

17950-356-700

Unavailable

2

GUIDE, CABLE (INNER)

45466-329-000

$2.95

3

GUIDE A, FR. BRAKE CABLE (NOT AVAILABLE)

45467-329-000

Unavailable

4

HANDLEBAR (NOT AVAILABLE)

53100-329-700

Unavailable

5

RUBBER, HANDLEBAR CUSHION

53133-303-000

$6.04

6

PLATE, HOLDER (NOT AVAILABLE)

53137-329-690

Unavailable

7

BRIDGE SET, FORK TOP (NOT AVAILABLE) This part replaces 53230-340-000.

53230-340-305

Unavailable

7

BRIDGE SET, FORK TOP (NOT AVAILABLE)

53230-340-305

Unavailable

8

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

9

BOLT, HEX. (8X56) | Use from Frame SN 3000021 This part replaces 92000-08056-0B.

92101-08056-0B

Unavailable

9

BOLT, FLANGE (8X54) (NOT AVAILABLE) | Use up to Frame SN 3000020

90127-369-000

Unavailable

10

BOLT, FLANGE (8X72) (NOT AVAILABLE)

90124-458-000

Unavailable

11

BOLT, FLANGE (8X36)

90111-362-000

$4.80

11

BOLT, FLANGE (8X36) This part replaces 93000-08036-0B.

90111-362-000

$4.80

13

NUT, HEX. (8MM)

94001-08020-0S

$1.49

13

NUT, FLANGE (8MM) This part replaces 90303-369-000.

94050-08020

$1.91

13

NUT, FLANGE (8MM)

94050-08020

$1.91

14

WASHER, FLAT (8MM) | Use from Frame SN 3000021

94102-08200

$1.49

16

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

17

HOLDER C2, HANDLEBAR

95014-33200

Unavailable
