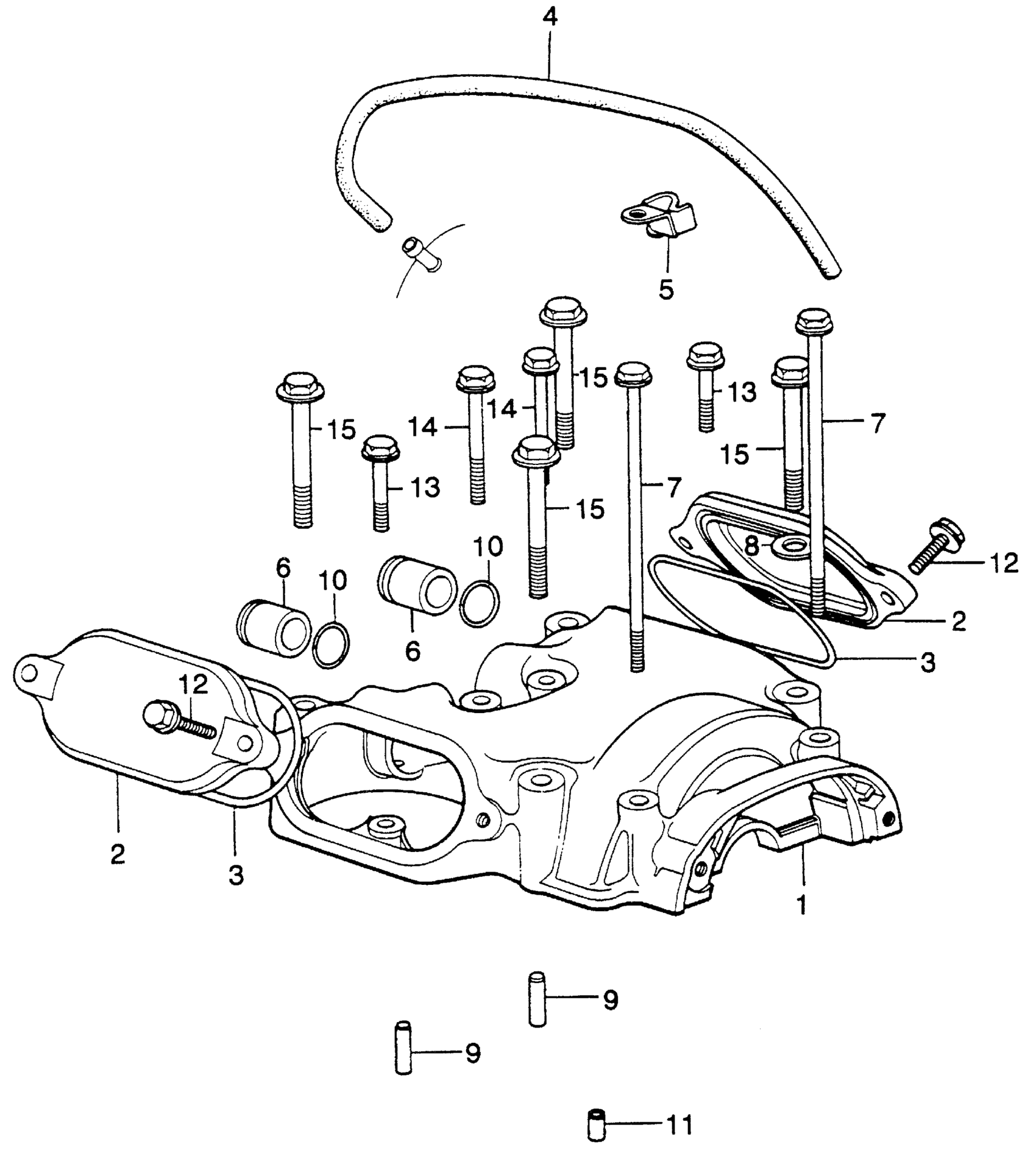

Honda XL250K2A MOTORCYCLE, JPN, VIN# XL250-3000001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12310-329-770

Unavailable

2

COVER, VALVE ADJ. (NOT AVAILABLE)

12351-329-770

Unavailable

3

GASKET, VALVE ADJ. CAP

12392-329-000

Unavailable

4

TUBE, POINT BREATHER (NOT AVAILABLE)

15772-356-000

Unavailable

5

CLAMP A, CABLE (NOT AVAILABLE) This part replaces 32111-333-000.

32117-371-000

Unavailable

6

PLUG, ROCKER ARM SHAFT (NOT AVAILABLE) This part replaces 90011-329-000.

90011-356-000

Unavailable

6

PLUG, ROCKER ARM SHAFT (NOT AVAILABLE)

90011-356-000

Unavailable

7

BOLT, FLANGE (6X130) This part replaces 90048-329-000.

95701-06130-00

$3.06

7

BOLT, FLANGE (6X130)

95701-06130-00

$3.06

8

WASHER, SEAL (8MM)

90441-286-000

$1.90

9

PIN, DOWEL (6X20.5) (NOT AVAILABLE)

90708-329-000

Unavailable

10

O-RING (16X1.9)

91306-329-000

$2.92

11

PIN A, DOWEL (6X10) (YAMADA)

94301-06100

$2.25

12

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

12

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

13

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

13

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

13

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

13

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

14

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

14

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

14

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

14

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

15

BOLT, FLANGE (8X50) This part replaces 95700-08050-00.

95701-08050-00

$2.28

15

BOLT, FLANGE (8X50)

95701-08050-00

$2.28
