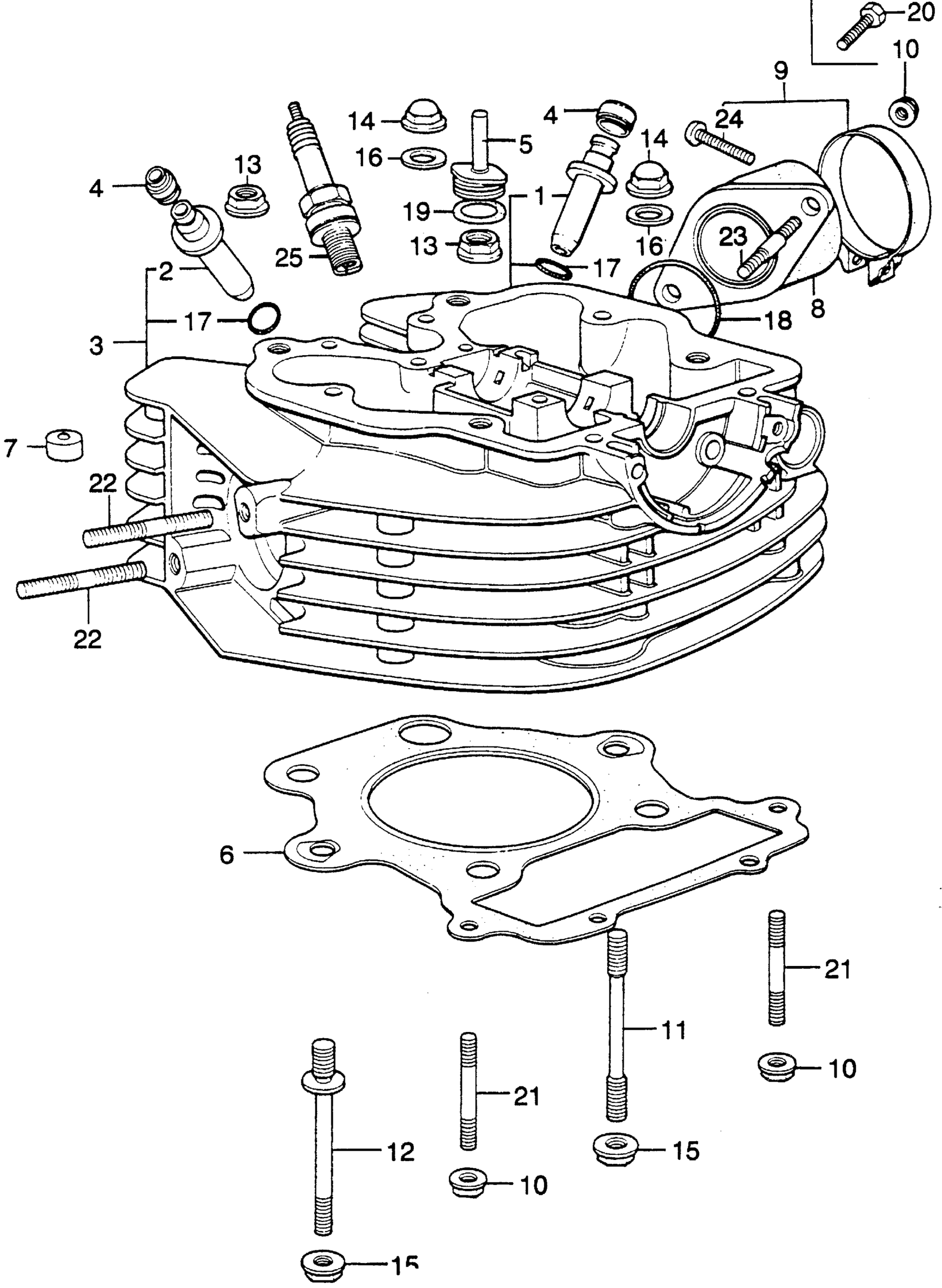

Honda XL250K2A MOTORCYCLE, JPN, VIN# XL250-3000001 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, EX. VALVE This part replaces 12021-329-300.

12021-329-405

Unavailable

1

GUIDE, EX. VALVE

12021-329-405

Unavailable

2

GUIDE, EX. VALVE (NOT AVAILABLE)

12023-329-310

Unavailable

3

CYLINDER HEAD

12200-329-770

Unavailable

4

SEAL, VALVE STEM (NIPPON) This part replaces 12209-323-005.

12209-333-005

$10.65

4

SEAL, VALVE STEM (NIPPON)

12209-333-005

$10.65

5

CAP, SEALING (NOT AVAILABLE)

12209-329-000

Unavailable

6

GASKET, CYLINDER HEAD

12251-329-306

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-329-770.

12251-329-306

Unavailable

8

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-329-020

Unavailable

9

BAND, INSULATOR

16223-KS5-000

$14.20

9

BAND, INSULATOR This part replaces 17255-329-000.

16223-KS5-000

$14.20

10

NUT, FLANGE (6MM)

94050-06000

$1.49

11

BOLT, CYLINDER FLANGE (8MM) (NOT AVAILABLE)

90032-329-770

Unavailable

12

BOLT, CYLINDER FLANGE (12X8) (NOT AVAILABLE)

90033-329-770

Unavailable

13

NUT, FLANGE (10MM) This part replaces 90201-329-000.

94050-10000

$1.59

13

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

13

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

13

NUT, FLANGE (10MM)

94050-10000

$1.59

14

NUT, FLANGE CAP (10MM)

90202-329-000

$3.67

15

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

15

NUT, FLANGE (8MM)

94050-08000

$1.49

15

NUT, FLANGE (8MM) This part replaces 94050-08000-0S.

94050-08000

$1.49

16

WASHER, SEAL (10MM)

90441-329-000

$3.60

17

O-RING (10X1.6)

91301-200-000

$3.01

18

O-RING (38X2.4) (NOT AVAILABLE)

91311-329-000

Unavailable

19

O-RING (15X3)

91326-590-010

Unavailable

20

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

21

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.89

21

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

21

BOLT, STUD (6X28)

92900-06028-0B

$1.89

21

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.89

22

BOLT, STUD (8X28) This part replaces 92700-08045.

92900-08028-0B

$2.16

22

BOLT, STUD (8X28) This part replaces 92700-08045-0B.

92900-08028-0B

$2.16

22

BOLT, STUD (8X28)

92900-08028-0B

$2.16

24

SCREW, PAN (5X20)

93500-05020-0G

$1.49

25

SPARK PLUG (D8EA) (NGK) This part replaces 98069-38710.

98069-58717

$2.44

25

SPARK PLUG (D7EA) (NGK) This part replaces 98069-57711.

98069-57717

$2.44

25

SPARK PLUG (D7EA) (NGK)

98069-57717

$2.44

25

SPARK PLUG (D7EA) (NGK) This part replaces 98069-57723.

98069-57717

$2.44

25

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

25

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58717-S.

98069-58717

$2.44

25

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58720.

98069-58717

$2.44

25

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58721.

98069-58717

$2.44

25

SPARK PLUG (D8EA) (NGK) This part replaces 98079-58721.

98069-58717

$2.44
