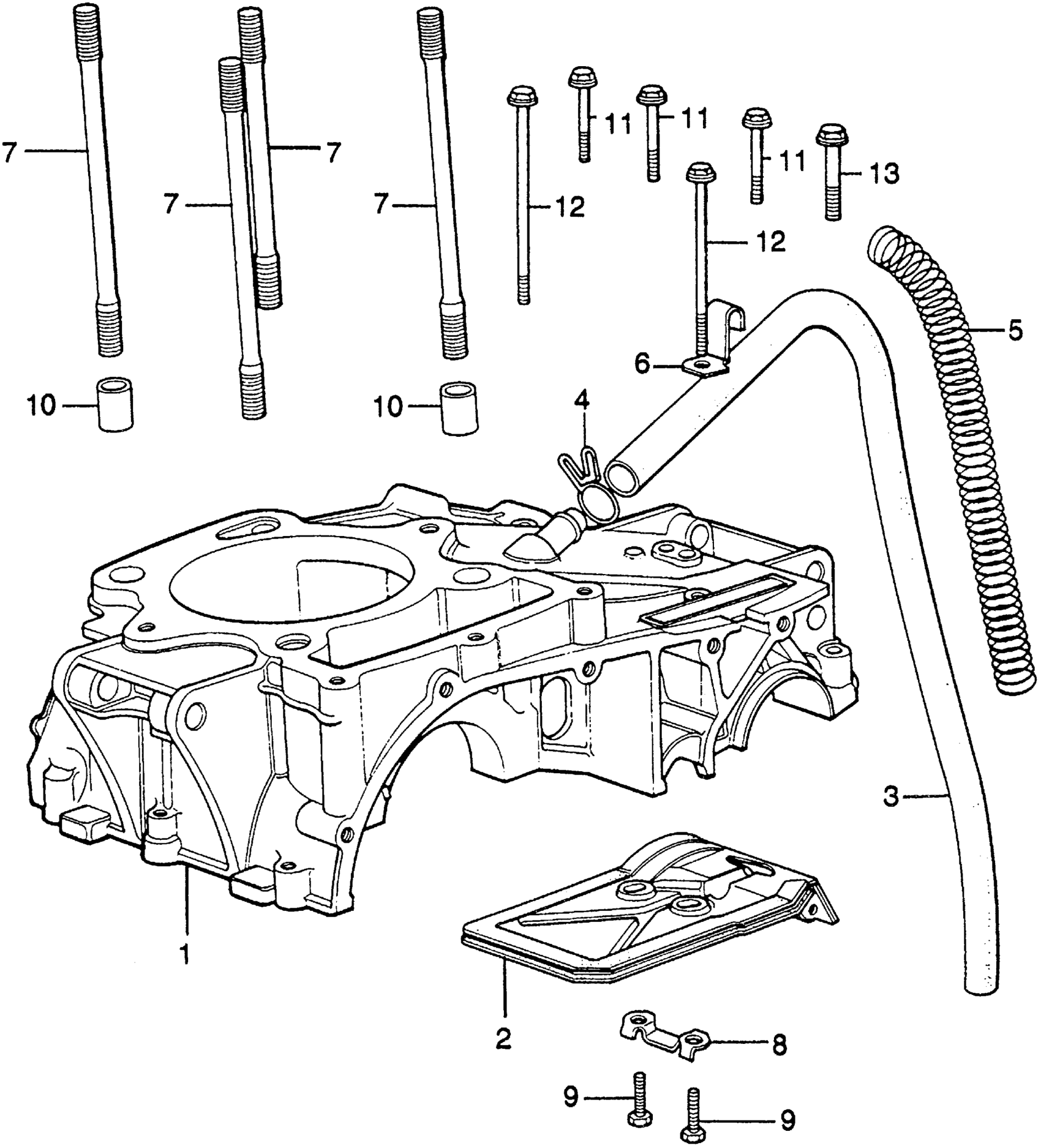

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 UPPER CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (UPPER)

11100-329-770

Unavailable

2

PLATE, BREATHER (NOT AVAILABLE)

11110-329-770

Unavailable

3

TUBE, BREATHER (NOT AVAILABLE)

15771-356-000

Unavailable

4

CLIP, BREATHER TUBE

15772-551-000

$2.05

4

CLIP, BREATHER TUBE (NOT AVAILABLE)

15772-551-680

$6.39

5

PROTECTOR, BREATHER TUBE (NOT AVAILABLE)

15773-356-000

Unavailable

6

CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)

32112-329-000

Unavailable

7

BOLT, CYLINDER STUD (10MM) (NOT AVAILABLE)

90031-329-000

Unavailable

8

WASHER (6MM) (NOT AVAILABLE)

90484-329-000

Unavailable

9

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

9

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

9

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

9

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

9

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

9

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

10

PIN, KNOCK (12X16)

94301-12160

$2.27

11

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

11

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

12

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.92

12

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

13

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

13

BOLT, FLANGE (8X40)

95701-08040-00

$1.49
