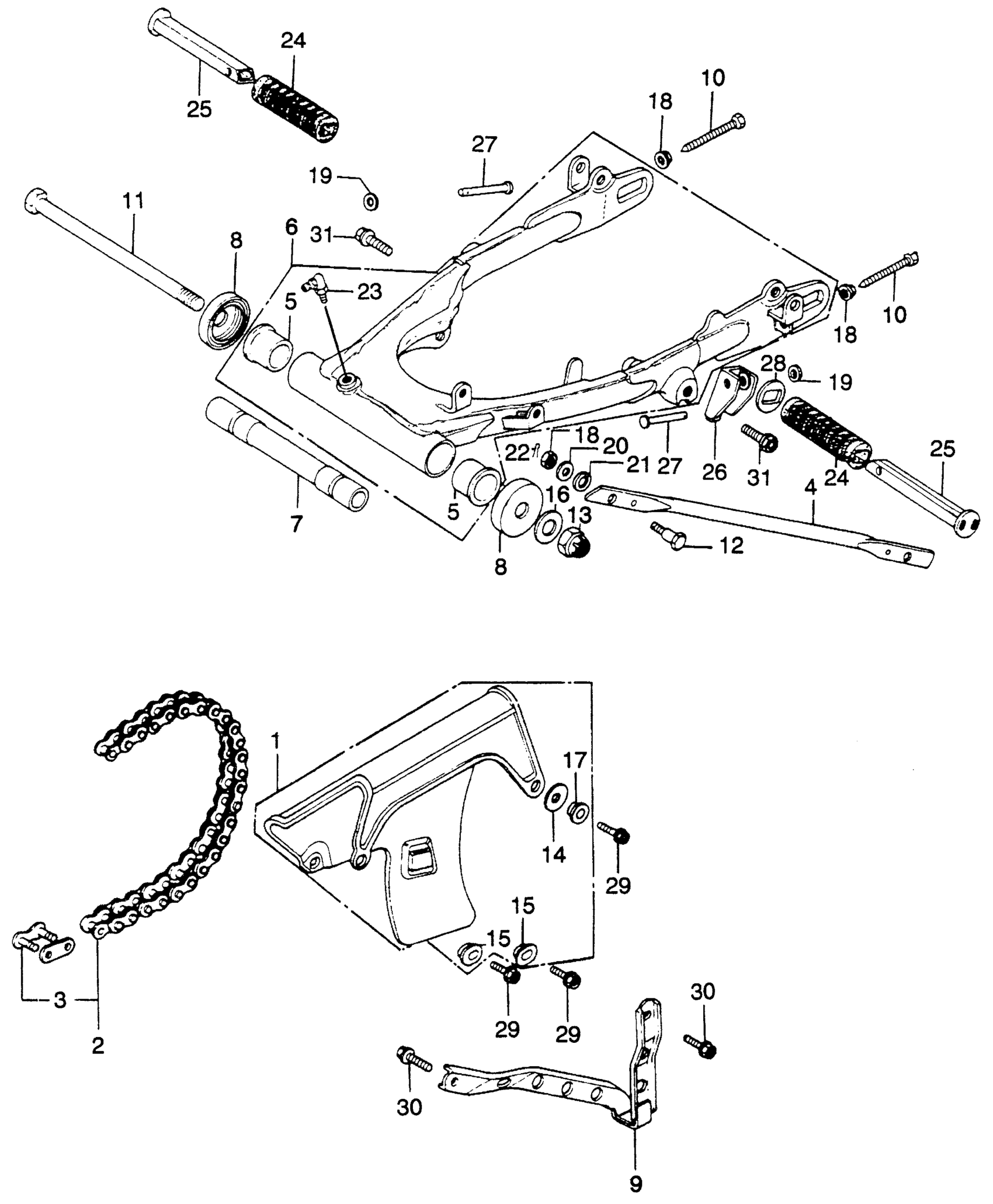

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 SWINGARM + DRIVE CHAIN K1-K2 Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-329-000

Unavailable

2

CHAIN, DRIVE This part replaces 40530-329-771.

40530-428-005

Unavailable

2

CHAIN, DRIVE This part replaces 40530-329-772.

40530-428-005

Unavailable

3

MASTER LINK (TAKASAGO)

40531-KA4-731

Unavailable

3

MASTER LINK (TAKASAGO) This part replaces 40531-329-771.

40531-KA4-731

Unavailable

4

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-357-020

Unavailable

5

BUSH, SWINGARM This part replaces 52108-356-006.

52109-KC1-003

$17.90

5

BUSH, SWINGARM

52109-KC1-003

$17.90

6

SWINGARM, RR. *NH1* (BLACK)

52100-329-770B

Unavailable

7

COLLAR, R. SWINGARM This part replaces 52141-356-000.

52141-356-010

$80.28

7

COLLAR, R. SWINGARM

52141-356-010

$80.28

7

COLLAR, L. SWINGARM (NOT AVAILABLE)

52142-356-000

Unavailable

8

CAP, DUST SEAL (NOK)

52144-356-005

$15.89

9

GUIDE, CHAIN (NOT AVAILABLE)

52156-356-000

Unavailable

10

BOLT, CHAIN ADJUSTING

90119-300-000

$8.73

11

BOLT, RR. SWINGARM PIVOT

90121-356-000

Unavailable

12

BOLT, RR. BRAKE STOPPER ARM

90133-028-010

Unavailable

13

NUT, LOCK (14MM)

90354-268-000

$6.48

14

WASHER (6X20)

90512-300-000

$3.83

15

WASHER (6X9)

90513-323-000

$1.69

16

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

16

WASHER (14X26)

90527-634-670

Unavailable

17

WASHER, NUMBER BRACKET SETTING

90563-045-000

$2.97

18

NUT, HEX. (8MM)

94001-08000-0S

$1.31

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

19

WASHER, PLAIN (6MM)

94101-06800

Unavailable

20

WASHER, PLAIN (8MM)

94101-08000

Unavailable

21

WASHER, SPRING (8MM)

94111-10000

$1.24

22

PIN, COTTER (2.0X35)

94201-20350

$1.01

24

RUBBER, PILLION STEP (NOT AVAILABLE)

50714-333-000

Unavailable

25

BAR B, PILLION STEP

95015-62000

$30.31

28

WASHER, FOOTPEG

95015-91000

$1.21

29

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$2.03

29

BOLT, FLANGE (6X12)

95701-06012-00

$2.03

30

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.04

30

BOLT, FLANGE (8X12)

95701-08012-00

$1.04
