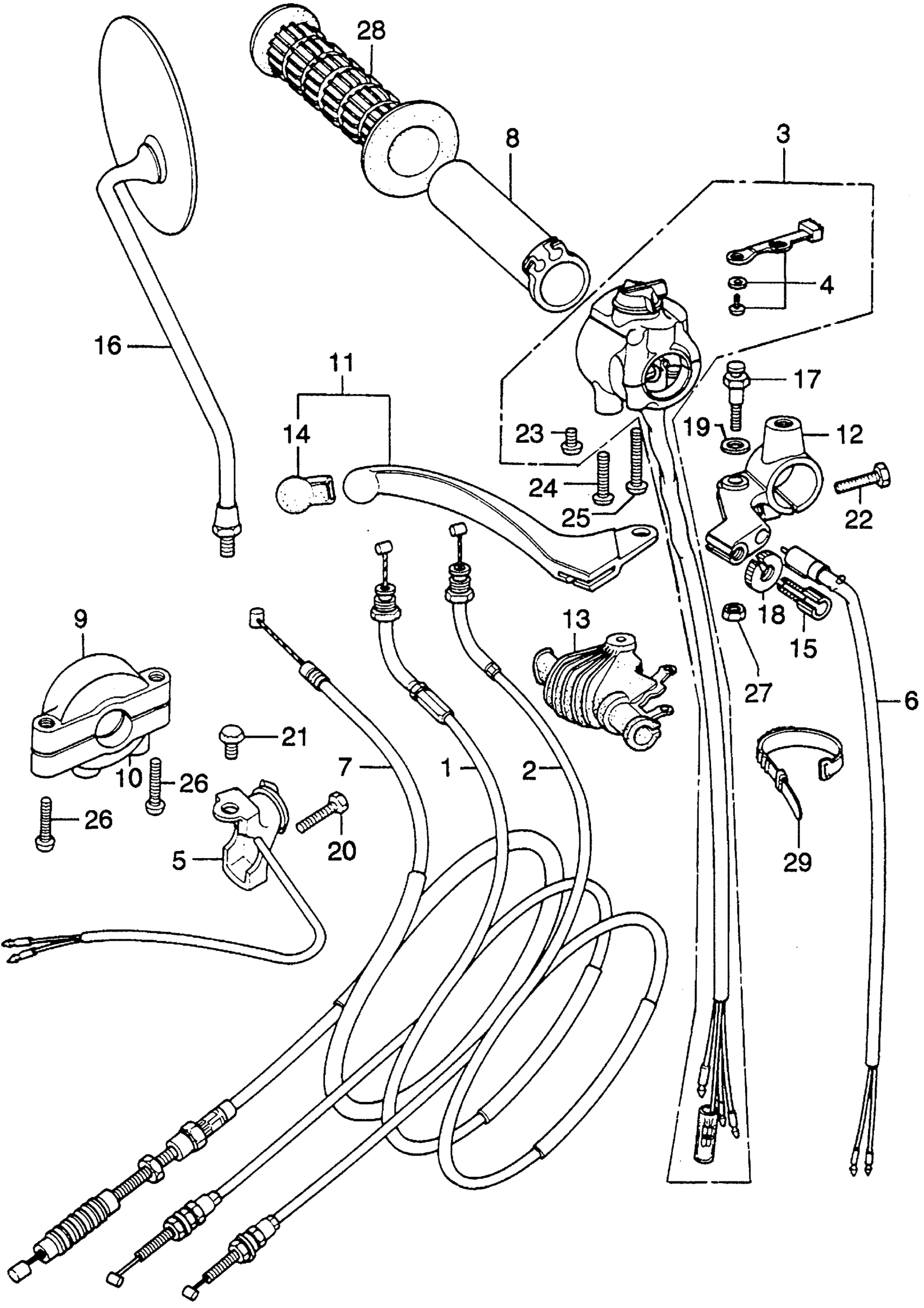

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 RIGHT HANDLE SWITCH + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE This part replaces 17910-356-000.

17910-385-000

Unavailable

1

CABLE A, THROTTLE

17910-385-000

Unavailable

2

CABLE B, THROTTLE This part replaces 17920-329-000.

17920-356-000

Unavailable

2

CABLE B, THROTTLE

17920-356-000

Unavailable

2

CABLE B, THROTTLE This part replaces 17920-385-000.

17920-356-000

Unavailable

3

SWITCH ASSY., LIGHTING STOP

35300-329-672

Unavailable

6

SWITCH ASSY., FR. STOP This part replaces 35330-391-690.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP This part replaces 35340-147-000.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP This part replaces 35340-329-000.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP This part replaces 35340-329-010.

35340-329-003

$17.46

7

CABLE, FR. BRAKE

45450-329-010

Unavailable

8

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-356-000

Unavailable

11

LEVER, R. HANDLEBAR This part replaces 53170-329-000.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53170-329-010.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53175-329-000.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53175-369-700.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

12

BRACKET, R. HANDLEBAR

53171-312-003

$52.94

13

COVER, R. CONTROL LEVER

53176-329-000

$12.41

15

BOLT, CLUTCH CABLE ADJUSTING

53192-312-000

$7.91

16

MIRROR, R. This part replaces 88110-074-000.

88110-329-730

Unavailable

16

MIRROR, R.

88110-329-730

Unavailable

17

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.75

18

NUT, FIXING

90321-315-670

$7.31

18

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

19

WASHER (7X12)

90501-310-000

$1.74

22

BOLT, HEX. (6X25) This part replaces 93000-06025.

93101-06025-0A

$1.49

22

BOLT, HEX. (6X25) This part replaces 93000-06025-0A.

93101-06025-0A

$1.49

22

BOLT, HEX. (6X25)

93101-06025-0A

$1.49

23

SCREW, PAN (5X6)

93500-05006-0A

$1.49

24

SCREW, PAN (5X25)

93500-05025-0A

$1.49

25

SCREW, PAN (5X32)

93500-05032-0A

$1.49

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

28

GRIP, R. HANDLE

53165-362-000

$15.86

29

BAND B1, CABLE

95014-62100

$1.64
