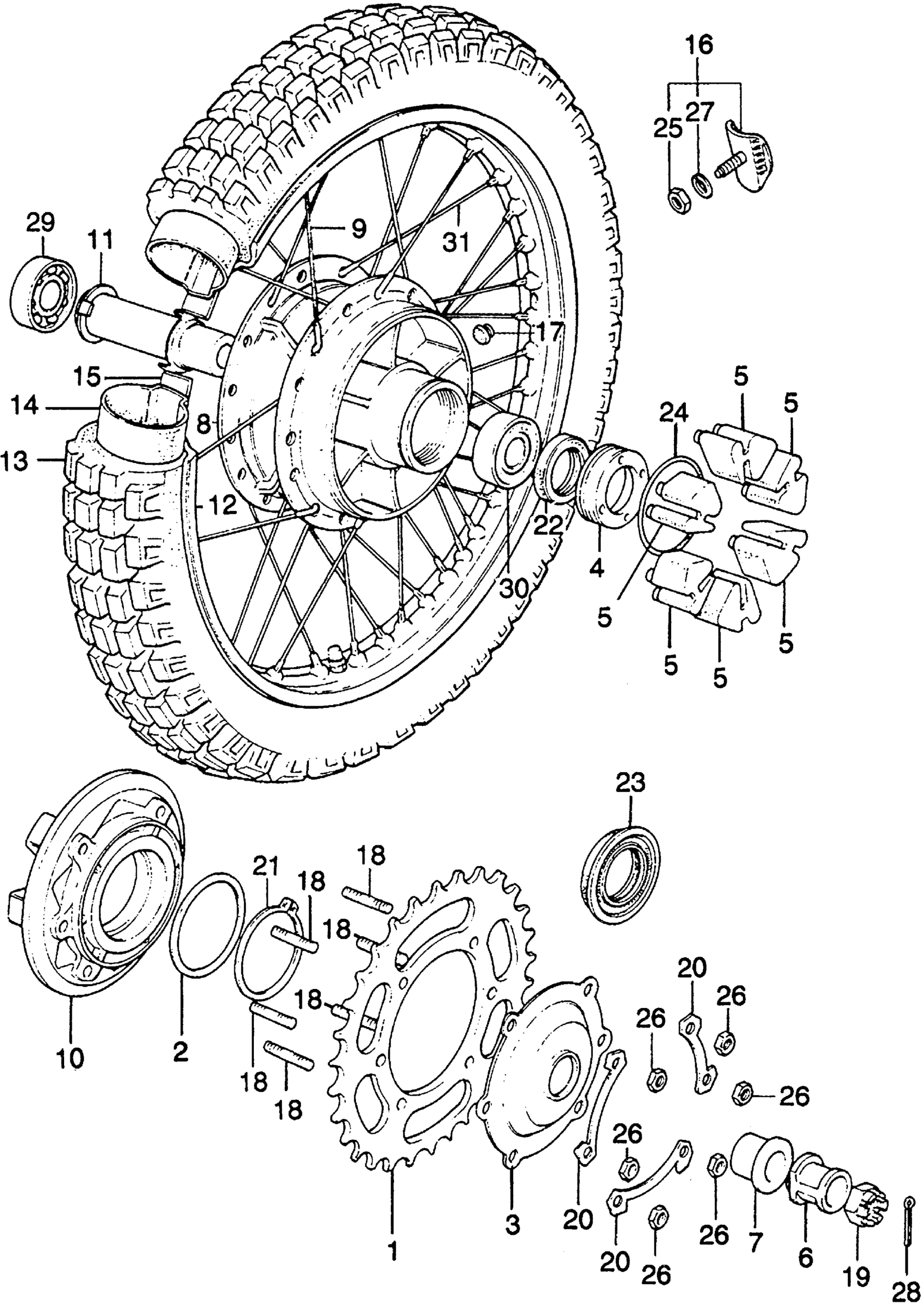

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (48T) (NOT AVAILABLE)

41201-329-000

Unavailable

1

SPROCKET, FINAL DRIVEN (51T)

41201-329-810

Unavailable

2

WASHER (66MM) (NOT AVAILABLE)

41202-329-010

Unavailable

4

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE)

41231-356-000

Unavailable

5

DAMPER, RR. WHEEL This part replaces 41242-329-010.

41242-356-000

Unavailable

5

DAMPER, RR. WHEEL

41242-356-000

Unavailable

6

COLLAR, RR. AXLE (NOT AVAILABLE)

42306-356-000

Unavailable

7

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-356-000

Unavailable

8

HUB, RR. WHEEL

42601-356-000

Unavailable

9

SPOKE B, RR. (8X159.5)

42607-356-000

Unavailable

10

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42615-356-000

Unavailable

11

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-329-000

Unavailable

12

RIM, RR. WHEEL (18) (DAIDO) | Use up to Frame SN 1060664

42701-329-003

Unavailable

12

RIM, RR. WHEEL (DAIDO) (NOT AVAILABLE) | Use from Frame SN 1060665 This part replaces 42701-357-000.

42701-385-741

Unavailable

12

RIM, RR. WHEEL (DAIDO) (NOT AVAILABLE) | Use from Frame SN 1060665 This part replaces 42701-381-003.

42701-385-741

Unavailable

12

RIM, RR. WHEEL (DAIDO) (NOT AVAILABLE) | Use from Frame SN 1060665

42701-385-741

Unavailable

13

TIRE, RR. (4.00-18) (NITTO) (NOT AVAILABLE) This part replaces 42711-329-671.

42711-329-672

Unavailable

13

TIRE, RR. (4.00-18) (NITTO) (NOT AVAILABLE)

42711-329-672

Unavailable

13

TIRE, RR. (4.00-18) (NITTO) (NOT AVAILABLE)

42711-340-006

Unavailable

13

TIRE, RR. (4.00-18) (NITTO) (NOT AVAILABLE) This part replaces 42711-356-671.

42711-329-672

Unavailable

14

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-312-003.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-340-006.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-374-003.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-425-003.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-435-003.

42712-KT1-673

$37.60

14

TUBE, TIRE (DUNLOP) (NOT AVAILABLE)

44712-300-004

$65.43

15

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

15

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-340-006.

42713-304-003

$6.69

16

STOPPER, BEAD (2.15B) (NOT AVAILABLE)

42715-329-000

Unavailable

17

CAP, RIM HOLE

42717-329-000

$4.21

18

BOLT, STUD (8X45)

90125-329-010

$3.26

19

NUT, RR. WHEEL AXLE

90306-329-770

$7.58

21

CIRCLIP (OUTER) (65MM)

90665-329-000

Unavailable

22

DUST SEAL (30X45X9.5)

91253-286-013

$6.81

23

DUST SEAL (65X85X7.5) (NOT AVAILABLE)

91256-356-005

Unavailable

24

O-RING (62X2)

91262-329-010

Unavailable

25

NUT, HEX. (8MM)

94001-08020-0S

$1.49

26

NUT, HEX. (8MM)

94030-08000

$1.49

27

WASHER, SPRING (8MM)

94111-08000

$1.49

28

PIN, COTTER (4.0X30)

94201-40300

$1.49

29

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

30

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03

31

SPOKE A, RR. (8X160.5)

42606-356-000

Unavailable
