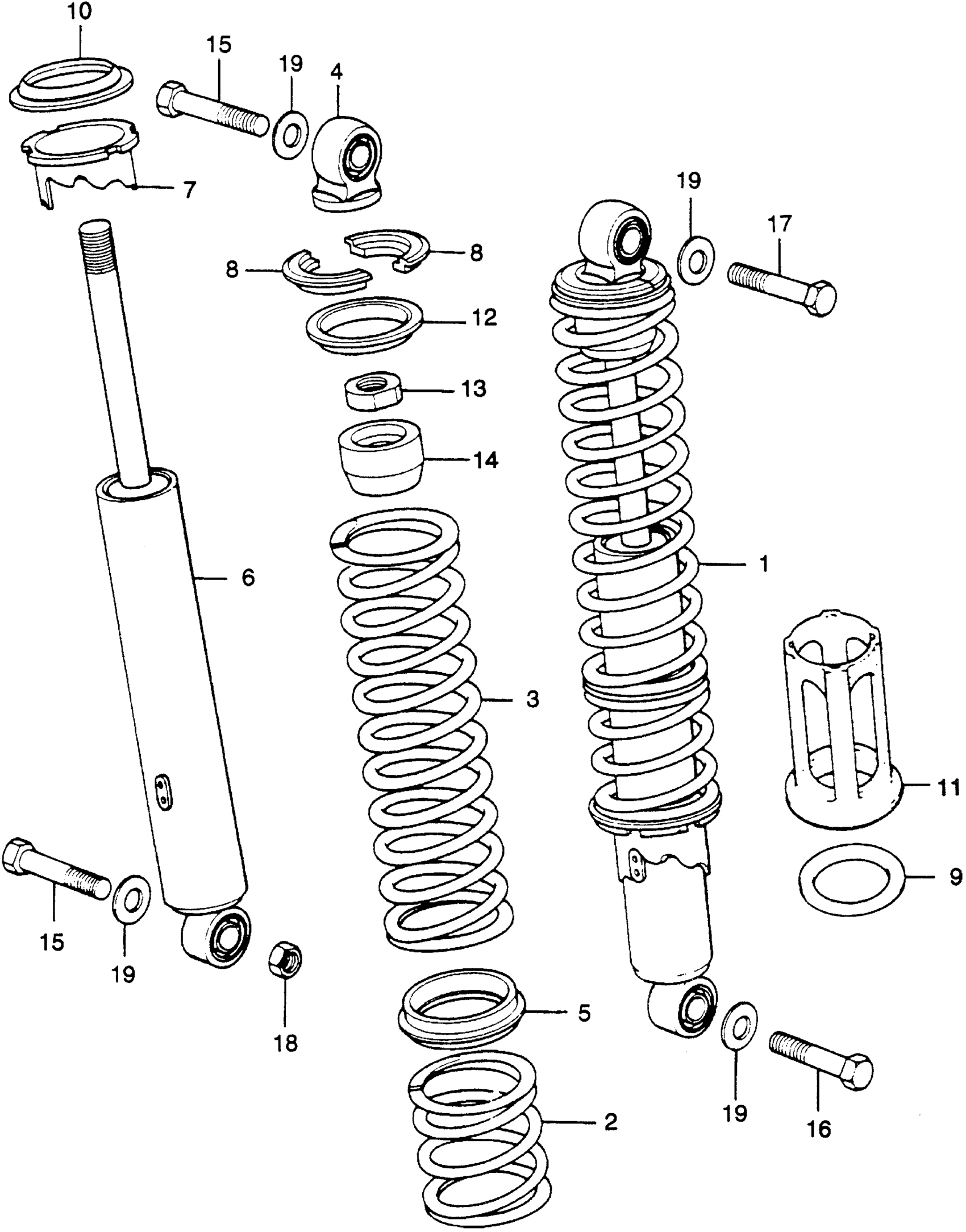

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-356-000

Unavailable

2

SPRING A, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-356-000

Unavailable

3

SPRING B, RR. SHOCK ABSORBER (NOT AVAILABLE)

52402-356-000

Unavailable

4

JOINT (UPPER) (NOT AVAILABLE)

52403-356-000

Unavailable

5

JOINT, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52404-356-000

Unavailable

6

DAMPER, RR. (NOT AVAILABLE)

52430-356-010

Unavailable

7

ADJUSTER, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52422-329-000

Unavailable

8

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.90

9

SPACER, RR. SHOCK ABSORBER (NOT AVAILABLE)

52457-356-000

Unavailable

11

GUIDE, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52458-356-000

Unavailable

12

SEAT, RR. SHOCK ABSORBER SPRING (SHOWA)

52459-312-003

Unavailable

13

NUT, LOCK (11MM) (NOT AVAILABLE)

52482-356-000

Unavailable

14

RUBBER, STOPPER (NOT AVAILABLE)

52517-356-000

Unavailable

16

BOLT, FLANGE (10X32) This part replaces 95800-10032-00.

95801-10032-00

$2.31

16

BOLT, FLANGE (10X32)

95801-10032-00

$2.31

17

BOLT, FLANGE (10X40) This part replaces 95800-10040-00.

95801-10040-00

$2.19

17

BOLT, FLANGE (10X40)

95801-10040-00

$2.19

19

WASHER, PLAIN (10MM)

94101-10000

$1.49
