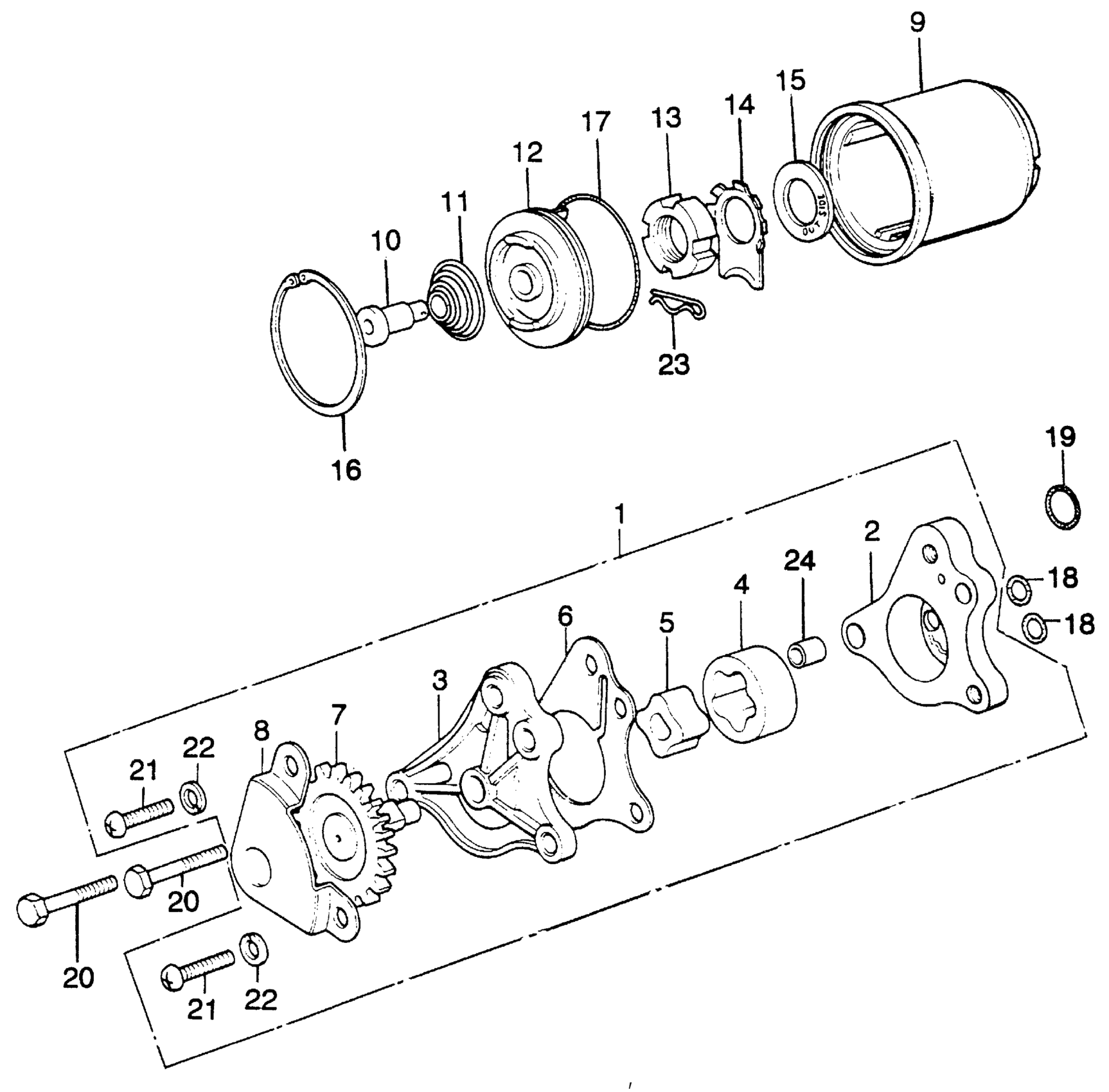

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL (NOT AVAILABLE)

15100-356-000

Unavailable

2

BODY, OIL PUMP

15111-329-010

Unavailable

3

COVER, OIL PUMP (NOT AVAILABLE)

15121-356-000

Unavailable

4

ROTOR, OIL PUMP (OUTER)

15122-329-010

$20.59

5

ROTOR, OIL PUMP (INNER)

15123-329-010

$17.36

6

GASKET, OIL PUMP COVER (NOT AVAILABLE)

15129-329-010

Unavailable

7

GEAR, OIL PUMP DRIVE (NOT AVAILABLE)

15131-356-000

Unavailable

8

PLATE, OIL PUMP SETTING (NOT AVAILABLE)

15197-329-000

Unavailable

9

ROTOR, OIL FILTER

15441-362-000

Unavailable

10

THROUGH, OIL (NOT AVAILABLE)

15445-356-000

Unavailable

11

SPRING, OIL THROUGH (NOT AVAILABLE)

15446-356-000

Unavailable

12

CAP, OIL FILTER (NOT AVAILABLE)

15450-329-000

Unavailable

13

NUT, LOCK (16MM)

90231-KCS-651

$4.21

13

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

14

WASHER, SPRING (16MM)

90431-292-000

$2.92

15

WASHER (16MM) (NOT AVAILABLE)

90481-292-000

Unavailable

16

CIRCLIP (INNER) (45MM)

90604-292-000

Unavailable

17

O-RING (39X1.8) (NOT AVAILABLE)

91310-329-000

Unavailable

18

O-RING (7X1.7)

91312-107-000

$3.18

19

O-RING (13X2.5)

91319-300-000

$5.07

20

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

20

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

21

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.49

21

SCREW, PAN (6X18)

93500-06018-0A

$1.49

22

WASHER, SPRING (6MM)

94111-06000

$1.49

23

PIN, LOCK (8MM)

94251-08000

$1.49

24

PIN A, DOWEL (8X10)

94301-08100

$2.25
