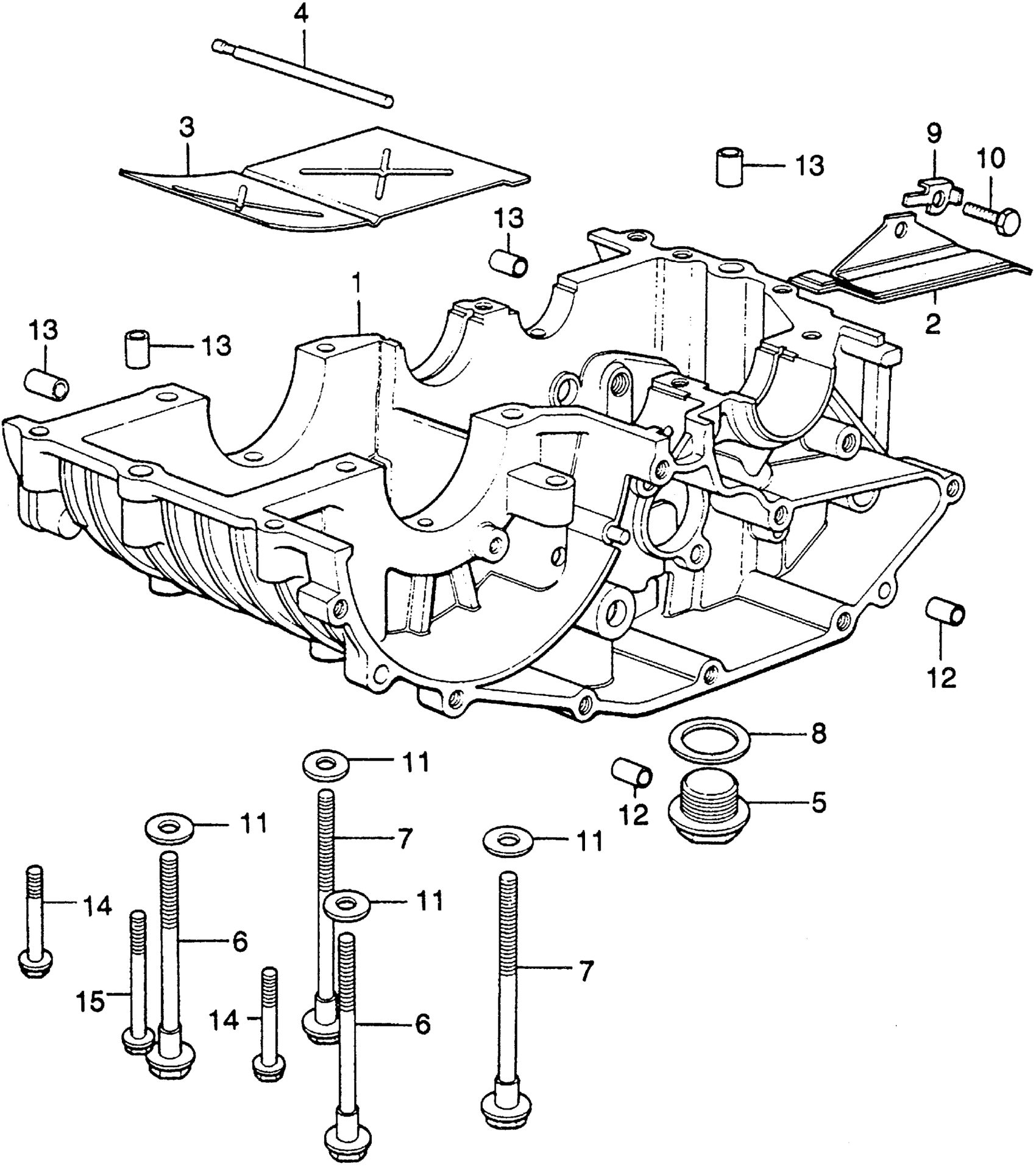

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 LOWER CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (LOWER) (NOT AVAILABLE) This part replaces 11200-329-010.

11200-329-770

Unavailable

1

CRANKCASE (LOWER) (NOT AVAILABLE)

11200-329-770

Unavailable

2

PROTECTOR, CASE (NOT AVAILABLE)

11353-329-000

Unavailable

3

SEPARATOR, OIL (NOT AVAILABLE)

11761-329-000

Unavailable

4

BAR, OIL SEPARATOR SETTING (NOT AVAILABLE)

11762-329-000

Unavailable

5

BOLT, DRAIN VALVE

90013-230-000

Unavailable

6

BOLT, UBS (8X97) (NOT AVAILABLE)

90086-333-000

Unavailable

7

BOLT, UBS (8X114) (NOT AVAILABLE)

90045-329-000

Unavailable

8

GASKET, DRAIN This part replaces 90407-205-000.

90407-367-690

$4.15

8

GASKET, DRAIN

90407-367-690

$4.15

9

WASHER, LOCK (6MM) (NOT AVAILABLE)

90434-329-000

Unavailable

10

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

12

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

13

PIN A, DOWEL (10X14)

94301-10140

$2.28

14

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

14

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

15

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

15

BOLT, FLANGE (6X55)

95701-06055-00

$2.16
