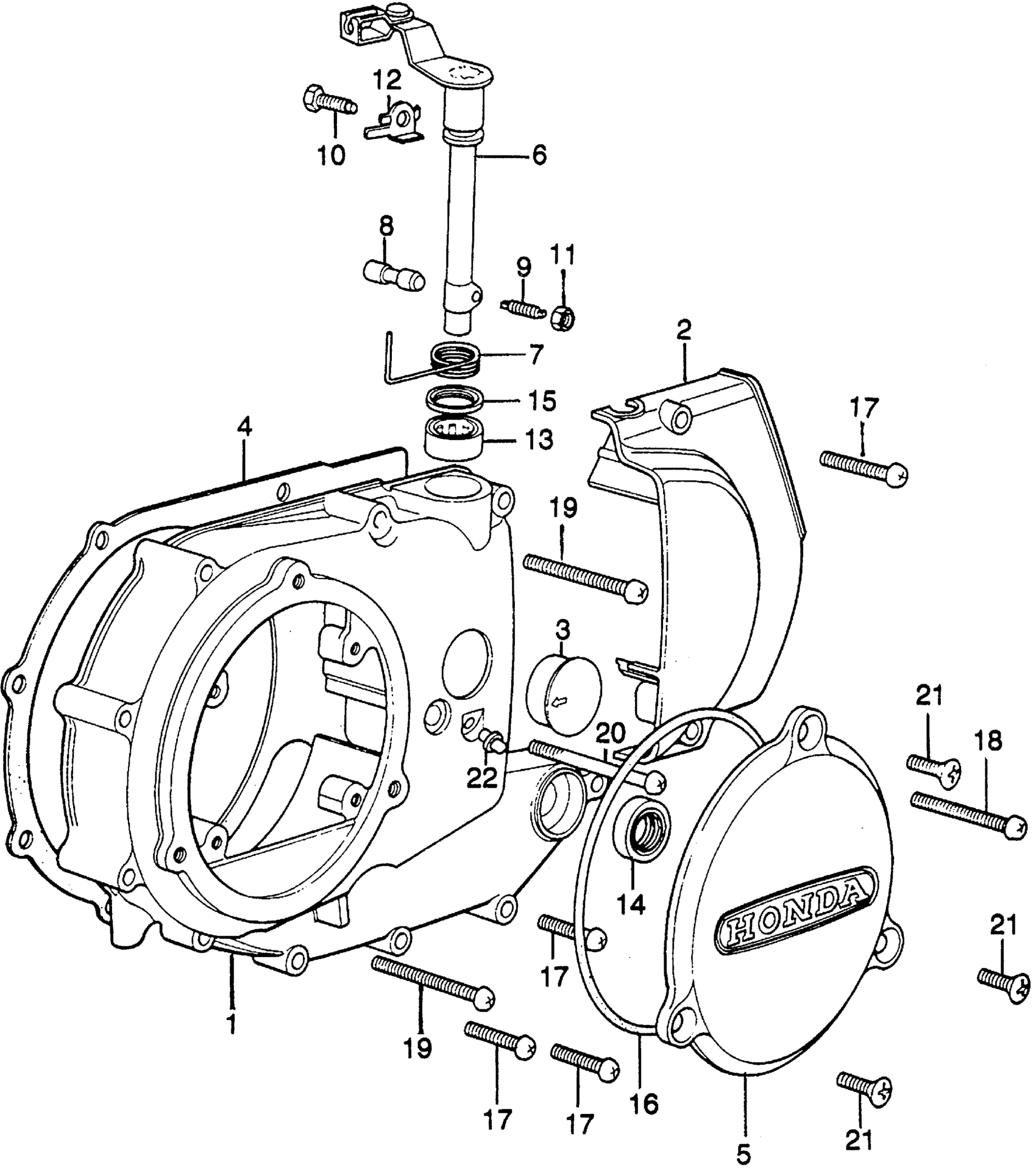

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE) This part replaces 11341-329-000.

11341-329-010

Unavailable

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-329-010

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11351-329-000

Unavailable

3

CAP, CLUTCH ADJ. HOLE

11391-329-000

Unavailable

4

GASKET, L. CRANKCASE COVER This part replaces 11395-329-000.

11395-329-306

Unavailable

4

GASKET, L. CRANKCASE COVER

11395-329-306

Unavailable

5

COVER, ALTERNATOR

11431-329-000

Unavailable

6

LEVER, CLUTCH (NOT AVAILABLE)

22810-356-000

Unavailable

7

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22815-329-000

Unavailable

8

PIECE, LIFTER ROD END (NOT AVAILABLE)

22841-329-000

Unavailable

9

SCREW, TAPPET ADJ. This part replaces 90012-200-000.

90012-333-000

$2.75

9

SCREW, TAPPET ADJ.

90012-333-000

$2.75

10

BOLT, KNOCK (6MM) (NOT AVAILABLE)

90017-329-000

Unavailable

11

NUT, TAPPET ADJ.

90206-KM3-000

$1.49

11

NUT, TAPPET ADJUSTING This part replaces 90206-246-000.

90206-KM3-000

$1.49

12

WASHER, LOCK (6MM) (NOT AVAILABLE)

90434-329-000

Unavailable

13

BEARING, NEEDLE (16MM) (NOT AVAILABLE)

91031-329-000

Unavailable

14

OIL SEAL (14X28X7) (ARAI) This part replaces 91206-286-005.

91206-286-013

$3.01

14

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

15

DUST SEAL (16X22X3.2) This part replaces 91206-329-000.

91251-964-000

$6.19

15

DUST SEAL (16X22X3.2) This part replaces 91206-329-154.

91251-964-000

$6.19

15

DUST SEAL (16X22X3.2)

91251-964-000

$6.19

16

O-RING (109X3) (NOT AVAILABLE)

91301-329-000

Unavailable

17

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

17

SCREW, PAN (6X32)

93500-06032-0A

$1.49

18

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

18

SCREW, PAN (6X50)

93500-06050-0A

$1.49

19

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

19

SCREW, PAN (6X55)

93500-06055-0A

$1.49

20

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

20

SCREW, PAN (6X60)

93500-06060-0A

$1.49

21

SCREW, OVAL (6X16)

93700-06016-0B

$1.49

21

SCREW, OVAL (6X16) This part replaces 93700-06016-02.

93700-06016-0B

$1.49

22

FITTING, GREASE (A.45)

96201-30001

$1.49
