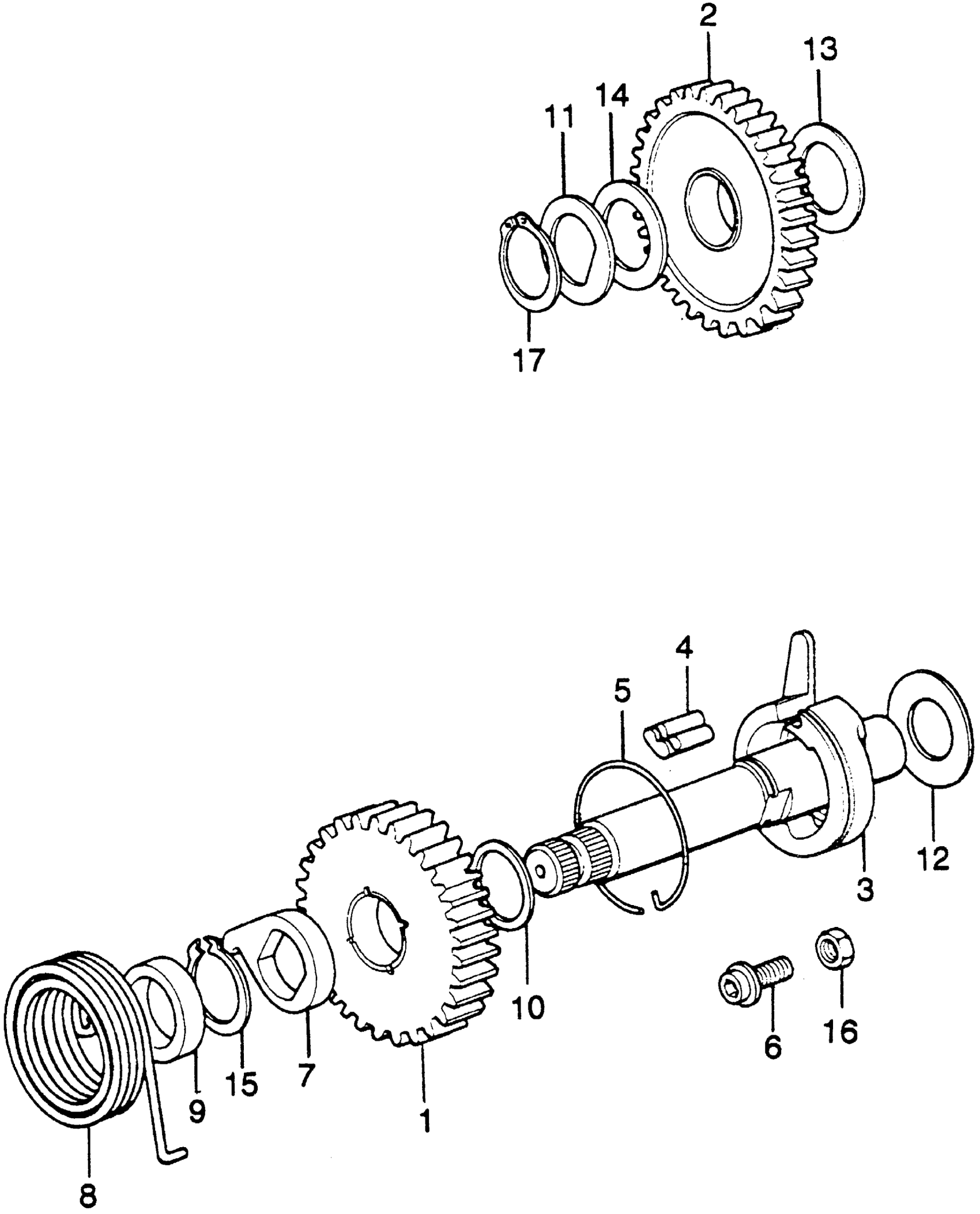

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 KICK STARTER Diagram

#

Description
Price

1

PINION, KICK STARTER (NOT AVAILABLE) This part replaces 28210-356-010.

28210-356-020

Unavailable

1

PINION, KICK STARTER

28210-356-020

Unavailable

2

GEAR, KICK STARTER IDLE (NOT AVAILABLE)

28221-356-010

Unavailable

3

SPINDLE, KICK STARTER (NOT AVAILABLE) This part replaces 28250-329-010.

28250-356-000

Unavailable

3

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-356-000

Unavailable

4

PAWL, KICK STARTER (NOT AVAILABLE)

28252-356-000

Unavailable

5

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28253-300-000

Unavailable

6

PIN, KICK STOPPER (NOT AVAILABLE)

28254-356-000

Unavailable

7

RETAINER, KICK STARTER SPRING

28258-329-000

Unavailable

8

SPRING, KICK STARTER (NOT AVAILABLE)

28261-329-000

Unavailable

9

COLLAR, KICK STARTER SPRING

28262-329-000

Unavailable

10

WASHER A, THRUST (22MM)

90452-504-010

Unavailable

11

WASHER, THRUST (20MM) (NOT AVAILABLE)

90453-329-000

Unavailable

12

WASHER (16MM) (NOT AVAILABLE)

90454-329-000

Unavailable

13

WASHER, THRUST (20MM)

90458-292-000

$3.54

14

WASHER, THRUST (20MM) (NOT AVAILABLE)

90458-329-010

Unavailable

15

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

16

NUT, HEX. (10MM)

94002-10000-0S

$4.06

17

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49
