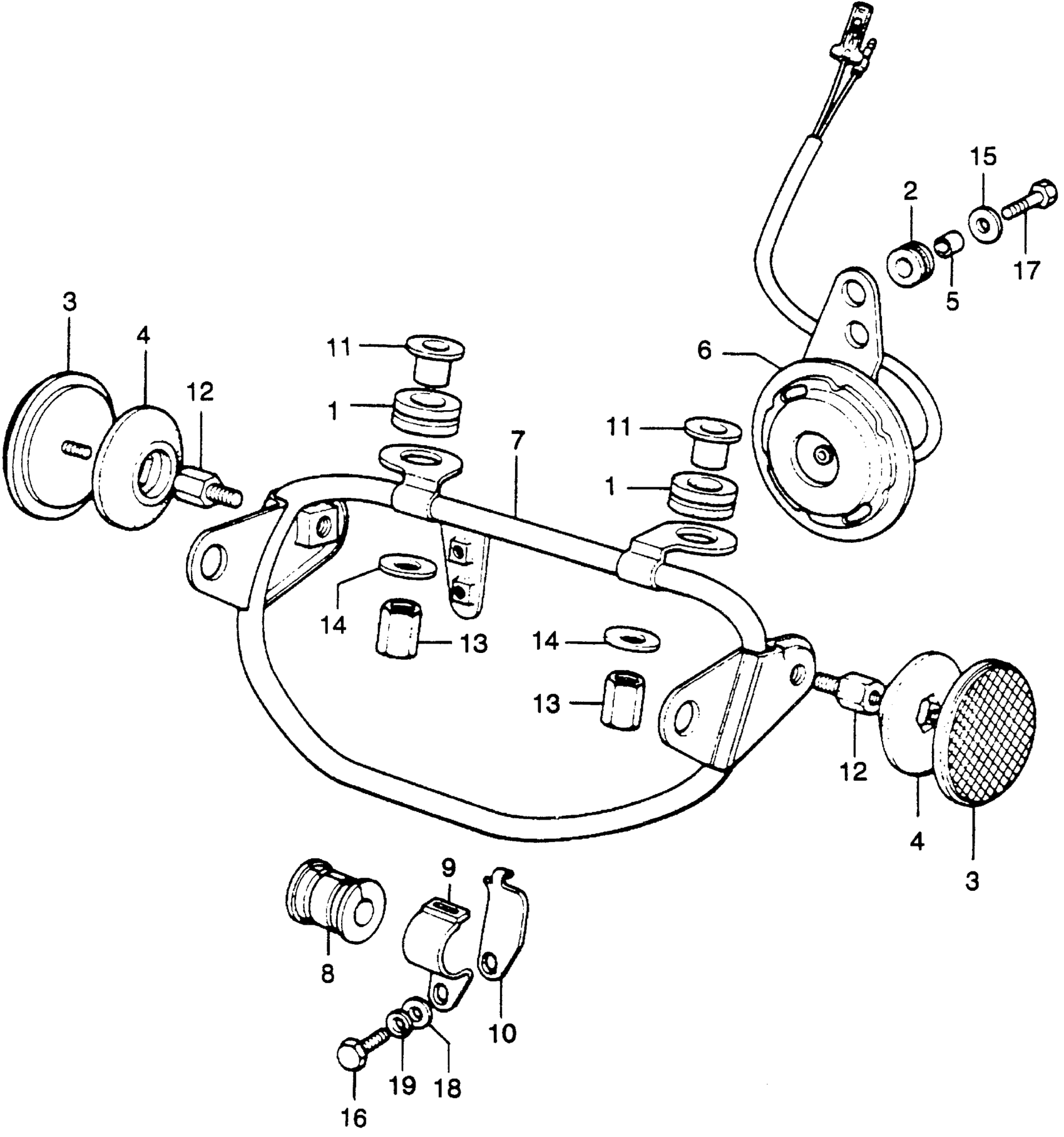

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 HEADLIGHT STAY + HORN Diagram

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.38

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

BASE, FR. REFLEX REFLECTOR (NOT AVAILABLE) | Use up to Frame SN 1054587

33743-329-670

Unavailable

COLLAR, STARTER MAGNETIC SWITCH SETTING (NOT AVAILABLE) | Use up to Frame SN 1054587

35851-292-000

Unavailable

HORN ASSY. (MITSUBA) (NOT AVAILABLE) | Use up to Frame SN 1054587

38100-329-014

Unavailable

STAY ASSY., HEADLIGHT *NH83L* (OFF BLACK) (NOT AVAILABLE)

61313-329-670CT

Unavailable

RUBBER, HEADLIGHT STAY (NOT AVAILABLE)

61316-329-010

Unavailable

STAY A, HEADLIGHT (LOWER) (NOT AVAILABLE)

61317-329-020

Unavailable

STAY B, HEADLIGHT (LOWER) (NOT AVAILABLE)

61318-329-010

Unavailable

COLLAR C, MOUNTING

80109-329-000

Unavailable

NUT (6X15)

90282-329-000

$4.67

WASHER (6.5X20)

90545-292-000

$1.77

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49
