Description

Price

NI

SHOE SET, BRAKE This part replaces 451A0-329-670.

06450-329-305

Unavailable

1

CAP, RIM HOLE

42717-329-000

$4.21

2

CAM, FR. BRAKE (NOT AVAILABLE)

45141-329-770

Unavailable

3

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-329-000

Unavailable

4

HUB, FR. WHEEL (NOT AVAILABLE)

44601-329-010

Unavailable

4

HUB, FR. WHEEL (NOT AVAILABLE)

44601-356-000

Unavailable

5

FLANGE, FR. SPOKE (NOT AVAILABLE)

44603-329-000

Unavailable

6

COLLAR, FR. AXLE DISTANCE

44620-286-000

Unavailable

7

RETAINER, GEAR BOX (NOT AVAILABLE)

44641-356-000

$16.41

8

RIM, FR. WHEEL (DAIDO) (NOT AVAILABLE) This part replaces 44701-356-000.

44701-385-405

Unavailable

8

RIM, FR. WHEEL (DAIDO) (NOT AVAILABLE)

44701-385-405

Unavailable

8

RIM, FR. WHEEL (DAIDO) (NOT AVAILABLE) This part replaces 44701-385-741.

44701-385-405

Unavailable

9

TIRE, FR. (2.75-21) (BS) (NOT AVAILABLE)

44711-329-671

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-KB1-911.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-006.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-400-004.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

11

FLAP, TIRE (1.4X21) (BS) (NA USE ALT:44713-MG7-003)

44713-329-003

Unavailable

11

FLAP, TIRE (21) (NITTO) (NOT AVAILABLE)

44713-331-671

Unavailable

12

BOX, SPEEDOMETER GEAR

44800-329-000

Unavailable

14

PANEL, FR. BRAKE

45100-329-770

Unavailable

16

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

17

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

18

ARM, FR. BRAKE

45410-329-770

Unavailable

19

SPRING, FR. BRAKE ARM RETURN (NOT AVAILABLE)

45435-329-000

Unavailable

20

NUT, FR. WHEEL AXLE (NOT AVAILABLE)

90305-329-000

Unavailable

21

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

22

WASHER (14MM)

90549-121-000

Unavailable

23

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

23

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

24

SCREW, FLAT (5X16)

93600-05016-0A

$1.49

25

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

25

SCREW, FLAT (6X16) (YAMADA)

93600-06016-0A

$1.49

26

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

PIN, COTTER (2.0X15)

94201-20150

$1.49

29

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

29

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

29

PIN, COTTER (2.0X22)

94201-20220

$1.49

29

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

29

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

29

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

29

PIN, COTTER (2.0X35)

94201-20350

$1.49

29

PIN, COTTER (2.0X22)

94201-29220

$1.49

30

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

30

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

31

SPOKE C, FR. (8X236)

44608-356-000

$2.67

32

SPOKE A ASSY., FR. (NOT AVAILABLE) This part replaces 44606-356-000.

44606-358-305

Unavailable

32

SPOKE A ASSY., FR. (NOT AVAILABLE)

44606-358-305

Unavailable

33

SPOKE B ASSY., FR. (NOT AVAILABLE) This part replaces 44607-356-000.

44607-358-305

Unavailable

33

SPOKE B ASSY., FR. (NOT AVAILABLE)

44607-358-305

Unavailable

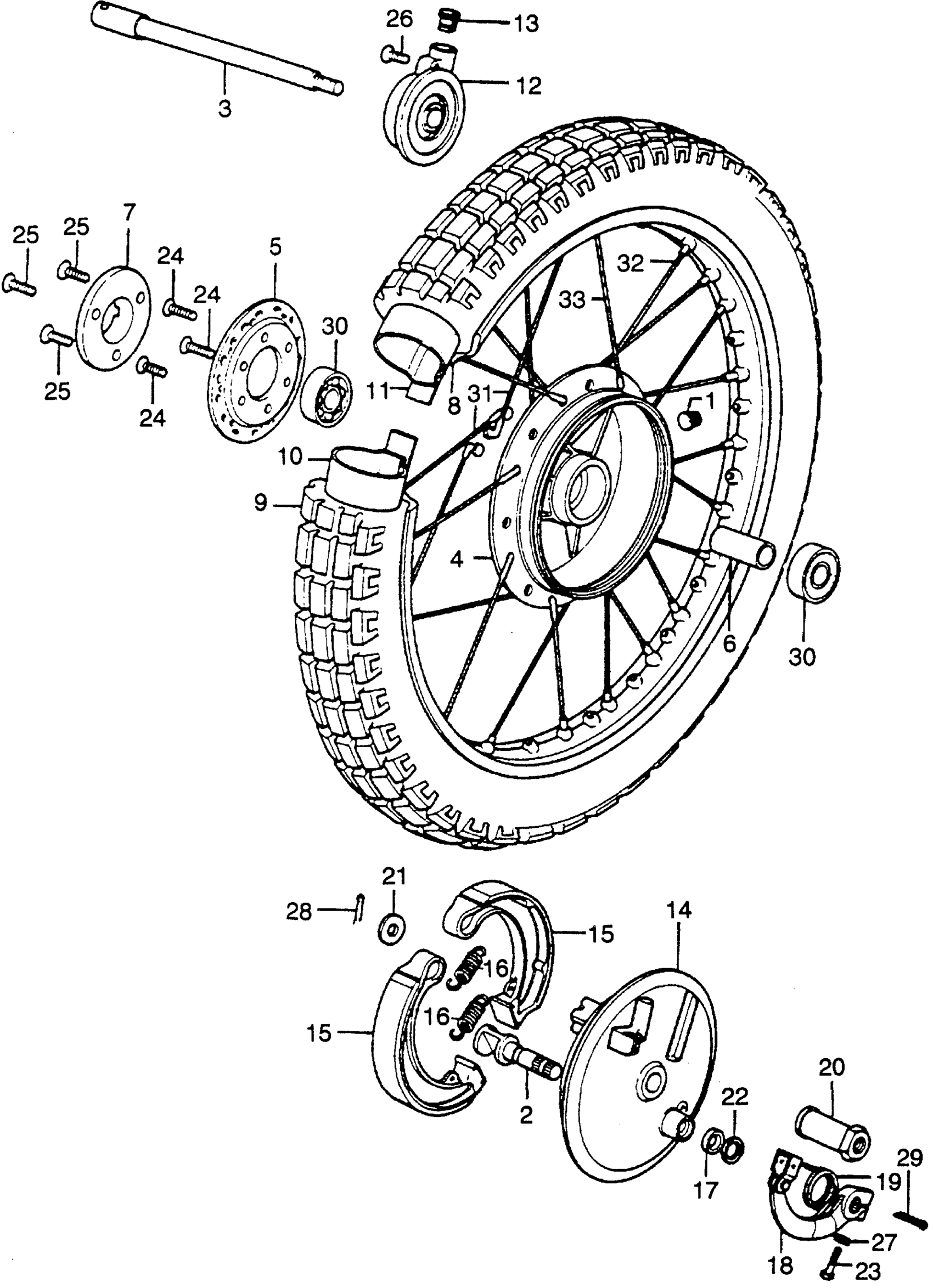

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 FRONT WHEEL Diagram
