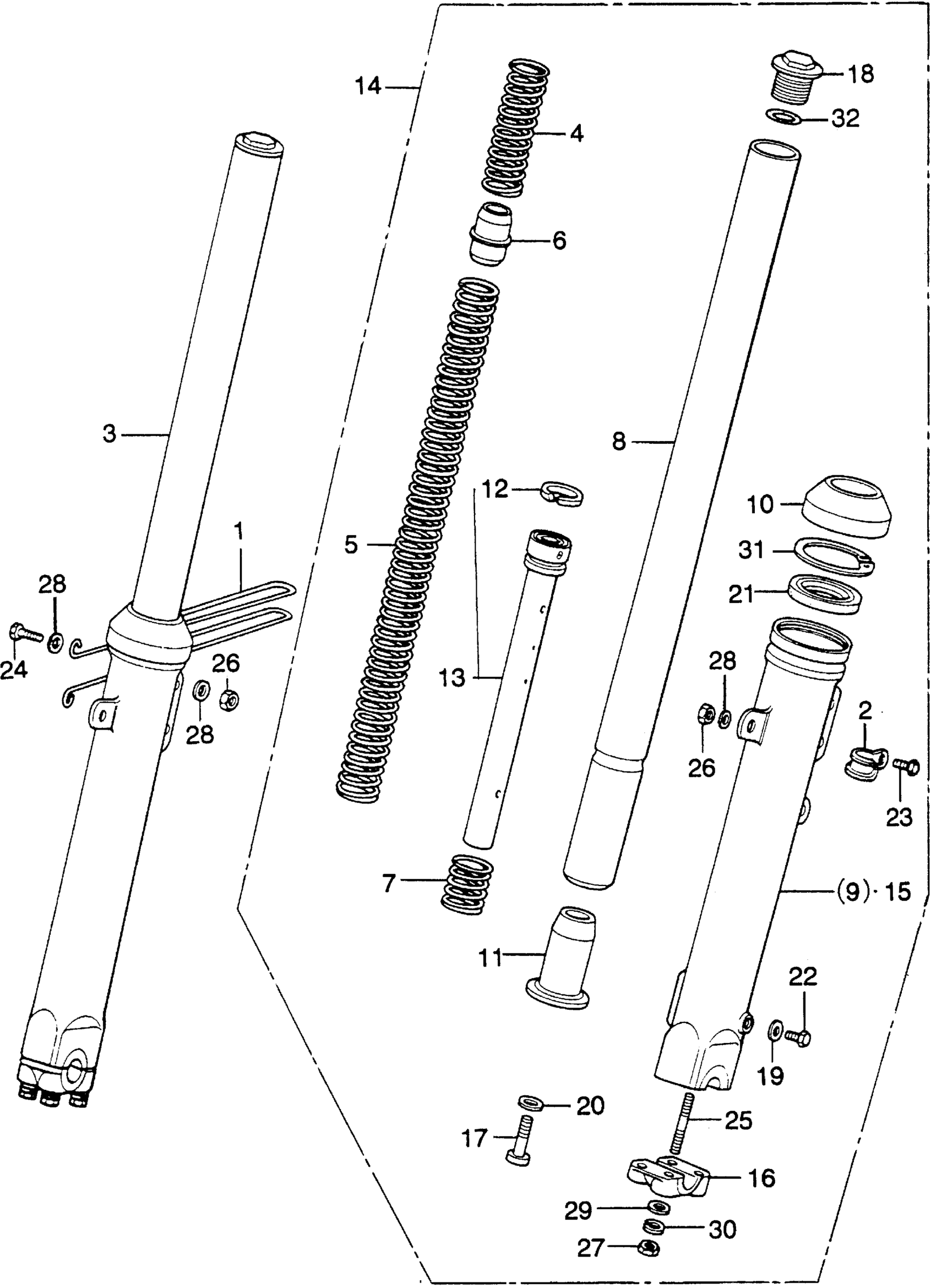

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 FRONT FORK Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-329-000

Unavailable

2

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-329-010

Unavailable

3

FORK ASSY., R. FR.

51400-356-010

Unavailable

4

SPRING A, FR. FORK (NOT AVAILABLE)

51401-329-010

Unavailable

4

SPRING A, FR. FORK

51401-356-000

Unavailable

5

SPRING B, FR. FORK (NOT AVAILABLE)

51402-356-000

Unavailable

6

WASHER (16MM) (NOT AVAILABLE)

90504-356-000

Unavailable

7

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

8

PIPE, FORK (NOT AVAILABLE)

51420-356-000

Unavailable

9

CASE, R. FORK (LOWER) (NOT AVAILABLE)

51421-340-300

Unavailable

10

DUST SEAL, FR. FORK This part replaces 51425-340-000.

91254-435-003

$15.40

10

DUST SEAL, FR. FORK

91254-435-003

$15.40

11

PIECE, OIL LOCK (NOT AVAILABLE) | Use up to Frame SN 1062419 This part replaces 51432-340-000.

51432-357-000

Unavailable

11

PIECE, OIL LOCK (NOT AVAILABLE)

51432-357-000

Unavailable

12

RING, PISTON

51437-329-010

$7.14

13

PIPE (LOWER) (NOT AVAILABLE)

51440-356-000

Unavailable

14

FORK ASSY., L. FR.

51500-356-010

Unavailable

15

CASE, L. FR. FORK (LOWER)

51521-356-300

Unavailable

16

HOLDER, FR. AXLE (NOT AVAILABLE)

51634-340-000

Unavailable

17

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

17

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

18

BOLT, FR. FORK

90123-300-000

$47.61

19

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

20

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

21

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

21

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

21

OIL SEAL (35X48X11) This part replaces 91255-300-025.

91255-KBH-003

$13.24

21

OIL SEAL (35X48X11) This part replaces 91255-300-033.

91255-KBH-003

$13.24

21

OIL SEAL (35X48X11) This part replaces 91255-323-013.

91255-KBH-003

$13.24

21

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

21

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

22

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

22

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

23

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

23

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

24

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

24

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

25

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

25

BOLT, STUD (8X50) This part replaces 92700-08050-30.

92900-08028-3B

$1.59

25

BOLT, STUD (8X50)

92900-08028-3B

$1.59

26

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (8MM)

94030-08000

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

WASHER, PLAIN (8MM)

94101-08000

$1.49

30

WASHER, SPRING (8MM)

94111-08000

$1.49

31

CIRCLIP (INNER) (48MM) (NOT AVAILABLE)

94521-48000

Unavailable

32

O-RING (23X2.8)

94608-50000

$1.49
