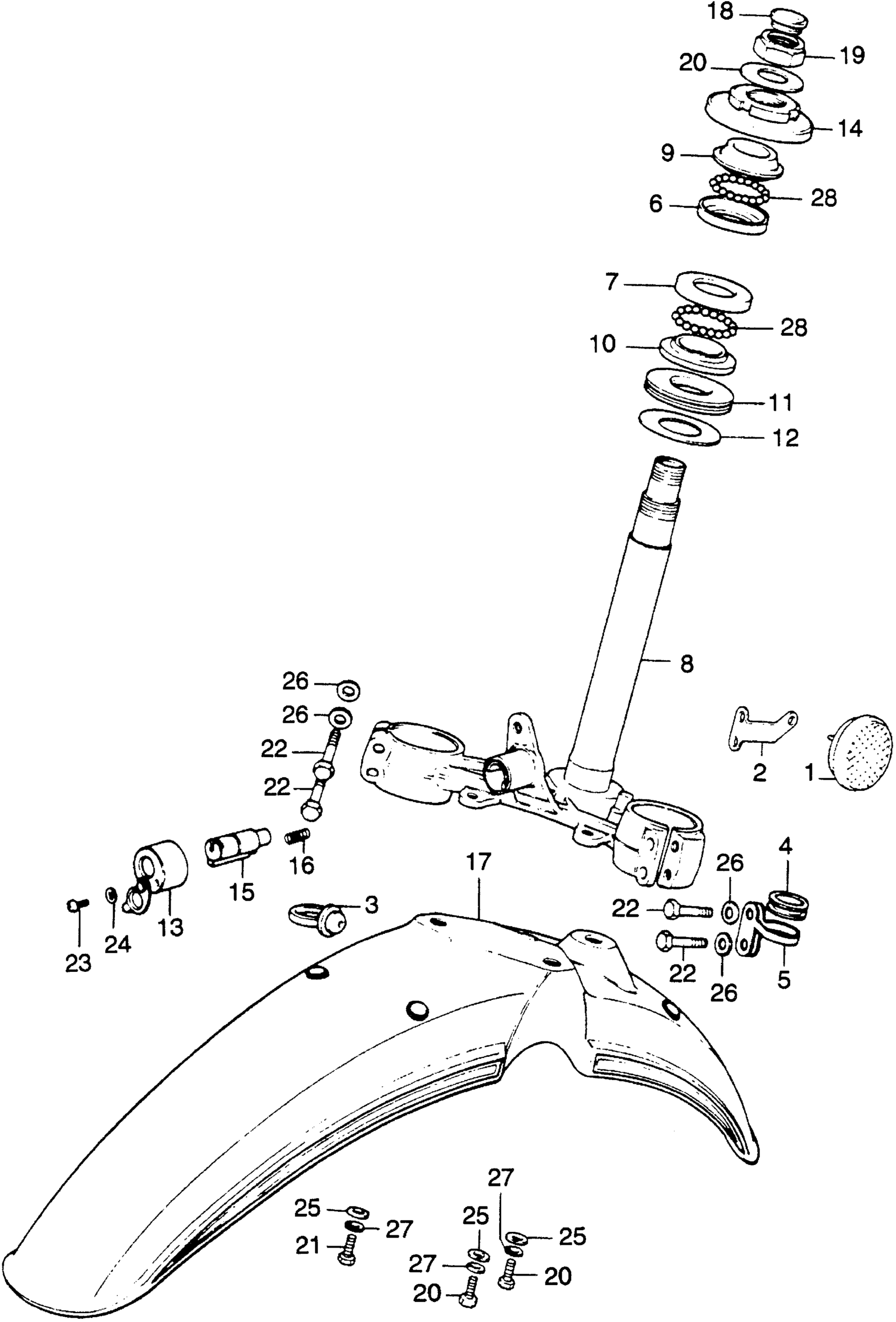

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 FRONT FENDER + STEERING STEM Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

2

STAY, FR. REFLEX REFLECTOR (NOT AVAILABLE)

33750-362-000

Unavailable

3

GROMMET, CABLE This part replaces 45451-283-000.

45451-367-690

$4.04

3

GROMMET, CABLE

45451-367-690

$4.04

4

GUIDE, CABLE (INNER)

45466-329-000

$2.95

5

GUIDE B, FR. BRAKE CABLE

45468-329-000

Unavailable

6

RACE, STEERING TOP BALL This part replaces 50301-200-315.

50301-268-010

$22.12

6

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

6

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

6

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

6

RACE, STEERING TOP BALL This part replaces 50302-200-000.

50301-268-010

$22.12

6

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$22.12

7

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

7

RACE, STEERING TOP BALL | Use up to Frame SN 1040295 This part replaces 50301-268-000.

50301-268-010

$22.12

7

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

7

RACE, STEERING BALL (UPPER) | Use up to Frame SN 1040295

50301-268-010

$22.12

7

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

7

RACE, STEERING TOP BALL | Use up to Frame SN 1040295 This part replaces 50301-268-305.

50301-268-010

$22.12

7

RACE, STEERING TOP BALL | Use up to Frame SN 1040295 This part replaces 50302-200-305.

50301-268-010

$22.12

8

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-329-020B

Unavailable

9

RACE, STEERING CONE (UPPER) (NOT AVAILABLE)

53211-200-305

Unavailable

10

RACE, STEERING CONE (LOWER)

53212-200-305

$19.80

11

DUST SEAL, STEERING HEAD

53214-200-000

$2.92

12

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.77

13

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-317-000

Unavailable

14

THREAD, STEERING HEAD TOP

53220-303-000

Unavailable

15

LOCK, HANDLEBAR

35010-230-010

Unavailable

15

LOCK, HANDLEBAR This part replaces 53600-230-000.

35010-230-010

Unavailable

15

LOCK, HANDLEBAR This part replaces 53600-230-004.

35010-230-010

Unavailable

16

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

17

FENDER, FR. *PB3C* (CANDY SAPPHIRE BLUE) (NOT AVAILABLE)

61100-329-020TZ

Unavailable

19

NUT, STEERING STEM (NOT AVAILABLE)

90304-329-000

Unavailable

20

WASHER, STEERING STEM (NOT AVAILABLE)

90503-222-000

Unavailable

21

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

21

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

22

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

22

BOLT, FLANGE (8X32)

95701-08032-00

$1.49

23

SCREW-WASHER (3X8) (NOT AVAILABLE)

90109-342-000

Unavailable

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
