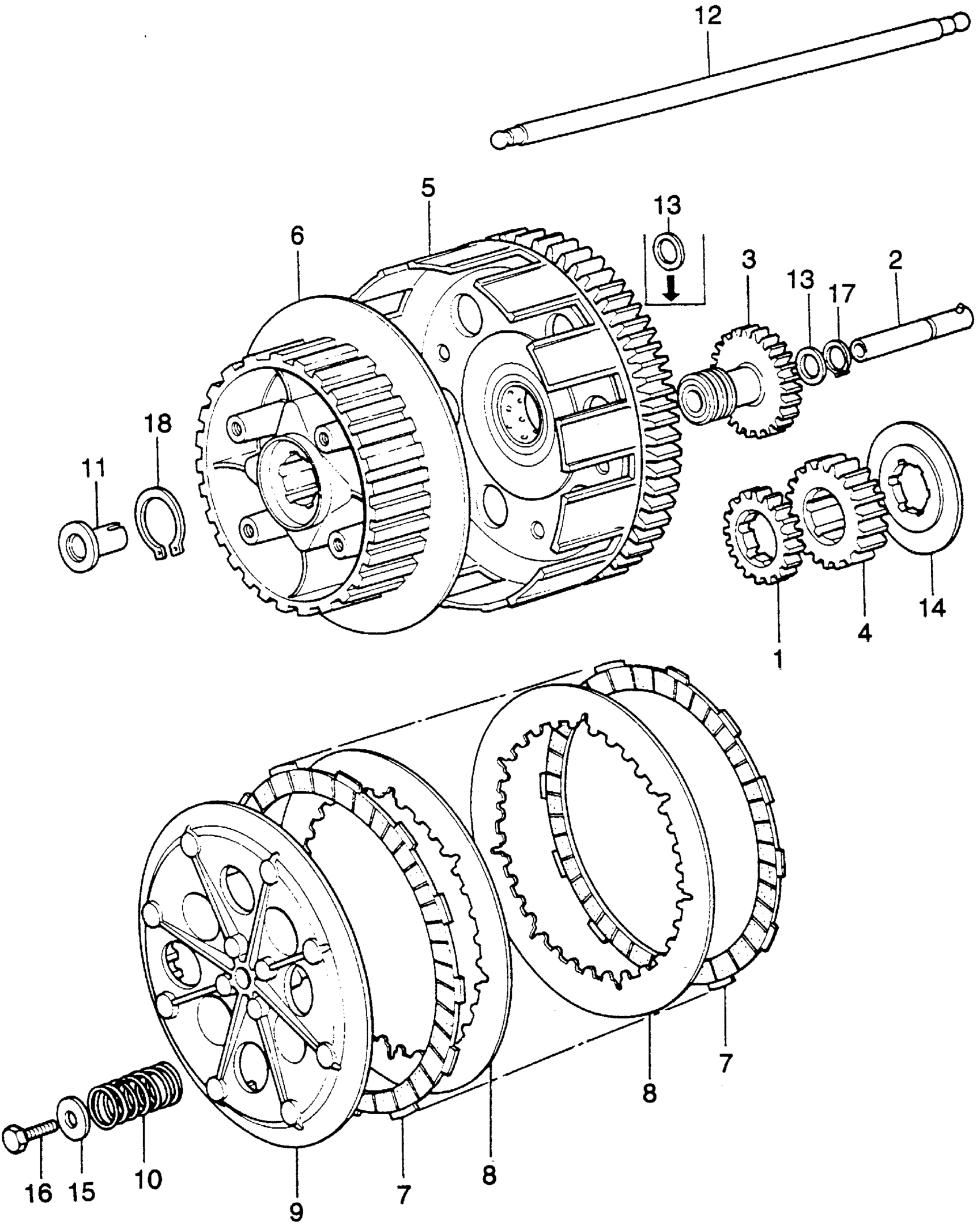

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 CLUTCH Diagram

#

Description
Price

1

GEAR, TACHOMETER IDLER DRIVE (NOT AVAILABLE)

12401-356-010

Unavailable

2

SHAFT, TACHOMETER IDLER (NOT AVAILABLE)

12410-329-000

Unavailable

3

PINION, TACHOMETER This part replaces 12420-329-000.

12420-329-700

Unavailable

3

PINION, TACHOMETER

12420-329-700

Unavailable

4

GEAR, PRIMARY DRIVE

13611-356-010

Unavailable

5

CLUTCH (OUTER) (NOT AVAILABLE)

22100-356-000

Unavailable

6

CENTER, CLUTCH (NOT AVAILABLE)

22120-329-010

Unavailable

7

DISK, CLUTCH FRICTION

22201-286-010

$19.81

8

PLATE B, CLUTCH

22321-329-000

$16.92

9

PLATE, CLUTCH PRESSURE

22350-329-000

Unavailable

10

SPRING, CLUTCH This part replaces 22401-268-000.

95014-75140

$3.06

10

SPRING, CLUTCH

95014-75140

$3.06

11

PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE)

22838-329-000

Unavailable

12

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-329-770

Unavailable

13

WASHER, THRUST (10MM) This part replaces 90412-329-000.

90412-KZL-840

$1.49

14

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90456-329-770

Unavailable

15

WASHER (6X19)

90481-259-000

Unavailable

16

BOLT, HEX. (6X20) (NOT AVAILABLE)

92020-06020

Unavailable

17

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

18

CIRCLIP (OUTER) (25MM)

94510-25000

$1.49
