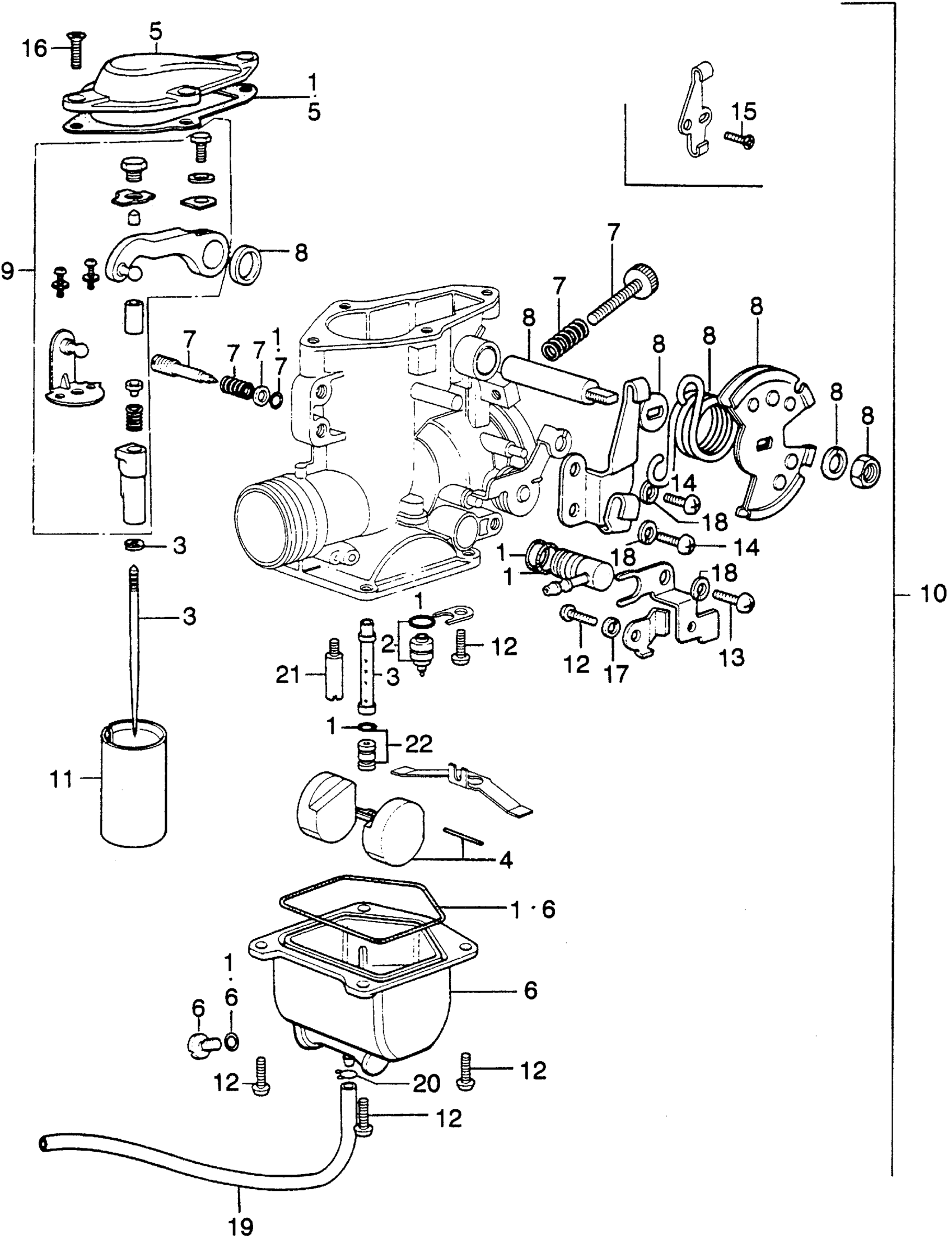

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-329-004.

16010-329-305

Unavailable

1

GASKET SET

16010-329-305

Unavailable

2

VALVE SET, FLOAT

16011-329-004

$44.11

3

NEEDLE SET, JET

16012-329-004

Unavailable

4

FLOAT SET

16013-329-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-329-004

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-329-004

Unavailable

7

SCREW SET (NOT AVAILABLE)

16016-329-004

Unavailable

8

LINK SET

16017-329-004

Unavailable

9

ARM SET, LINK (NOT AVAILABLE)

16018-329-004

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE)

16100-329-774

Unavailable

11

VALVE, THROTTLE (NOT AVAILABLE)

16111-329-004

Unavailable

12

SCREW, PAN (4X10)

93500-04010-0A

$1.49

12

SCREW, PAN (4X10)

93500-04010-0H

$1.49

13

SCREW, PAN (5X12)

93500-05012-0H

$1.49

15

SCREW, FLAT (5X12)

93600-05012-0A

$1.49

16

SCREW, OVAL (4X18) (NOT AVAILABLE)

93700-04018-0H

Unavailable

17

WASHER, SPRING (4MM)

94111-04000

$1.49

18

WASHER, SPRING (5MM)

94111-05000

$1.49

19

BULK HOSE, FUEL (3.5X3000) (3.5X300)

95001-35003-60M

$20.85

20

CLIP, TUBE (B7)

95002-02070

$1.80

21

JET, SLOW (#38) (NOT AVAILABLE)

99103-329-0380

Unavailable

21

JET, SLOW (#40) (NOT AVAILABLE)

99103-329-0400

Unavailable

21

JET, SLOW (#42) (NOT AVAILABLE)

99103-329-0420

Unavailable

21

JET, SLOW (#45) (NOT AVAILABLE)

99103-329-0450

Unavailable

21

JET, SLOW (#48) (NOT AVAILABLE)

99103-329-0480

Unavailable

21

JET, SLOW (#50) (NOT AVAILABLE)

99103-329-0500

Unavailable

22

JET SET, SECONDARY MAIN (#105) This part replaces 99154-286-1050.

99202-601-1050

$4.70

22

JET SET, SECONDARY MAIN (#110) (NOT AVAILABLE) This part replaces 99154-286-1100.

99202-601-1100

Unavailable

22

JET SET, SECONDARY MAIN (#115) This part replaces 99154-286-1150.

99202-601-1150

Unavailable

22

JET SET, SECONDARY MAIN (#105) This part replaces 99201-329-1050.

99202-601-1050

$4.70

22

JET SET, SECONDARY MAIN (#110) (NOT AVAILABLE) This part replaces 99201-329-1100.

99202-601-1100

Unavailable

22

JET SET, SECONDARY MAIN (#115) This part replaces 99201-329-1150.

99202-601-1150

Unavailable

22

JET SET, SECONDARY MAIN (#120) This part replaces 99201-329-1200.

99202-601-1200

Unavailable

22

JET SET, SECONDARY MAIN (#125) This part replaces 99201-329-1250.

99202-601-1250

Unavailable

22

JET MAIN #130 This part replaces 99201-329-1300.

99202-601-1300

Unavailable

22

JET SET, SECONDARY MAIN (#105)

99202-601-1050

$4.70

22

JET SET, SECONDARY MAIN (#105)

99202-601-1050

$4.70

22

JET SET, SECONDARY MAIN (#110) (NOT AVAILABLE)

99202-601-1100

Unavailable

22

JET SET, SECONDARY MAIN (#115)

99202-601-1150

Unavailable

22

JET SET, SECONDARY MAIN (#120)

99202-601-1200

Unavailable

22

JET SET, SECONDARY MAIN (#125)

99202-601-1250

Unavailable
