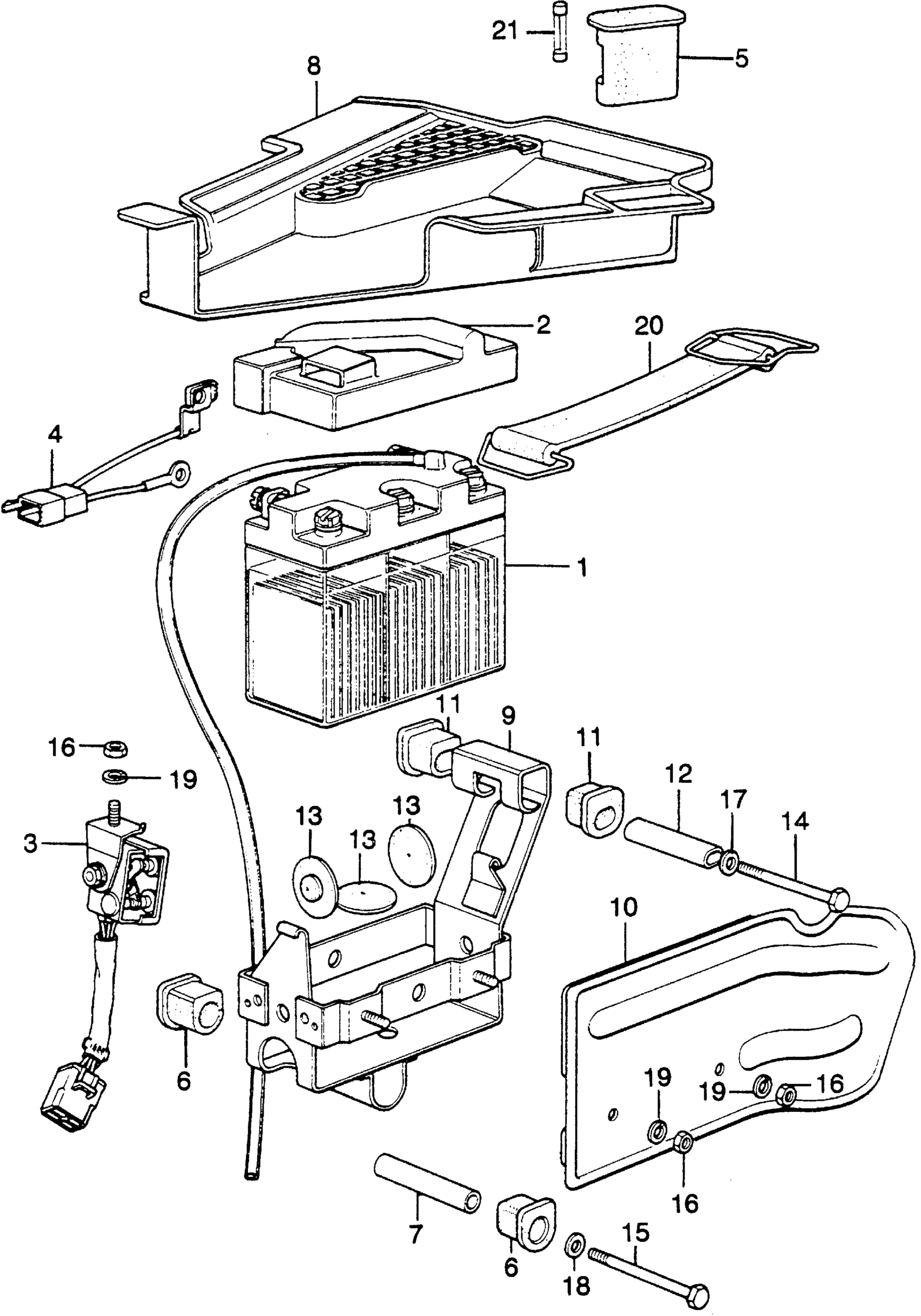

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 BATTERY Diagram

#

Description
Price

1

BATTERY (6N6-3B) This part replaces 31500-324-601.

31500-329-677AH

Unavailable

1

BATTERY (6N6-3B) This part replaces 31500-329-671.

31500-329-677AH

Unavailable

1

BATTERY (6N6-3B) This part replaces 31500-329-677.

31500-329-677AH

Unavailable

1

BATTERY (6N6-3B) This part replaces 98202-63260.

31500-329-677AH

Unavailable

1

BATTERY (6N6-3B) This part replaces 98203-63250.

31500-329-677AH

Unavailable

1

BATTERY (6N6-3B) This part replaces 98203-63260.

31500-329-677AH

Unavailable

2

COVER, BATTERY (NOT AVAILABLE)

31532-329-000

Unavailable

3

RECTIFIER ASSY. (NOT AVAILABLE)

31700-356-000

Unavailable

4

WIRE, BATTERY TERMINAL (NOT AVAILABLE)

32106-329-000

Unavailable

5

CASE, FUSE (NOT AVAILABLE)

38205-115-000

Unavailable

6

RUBBER, BATTERY BOX (NOT AVAILABLE)

50331-323-000

Unavailable

7

COLLAR, BATTERY BOX (NOT AVAILABLE)

50332-323-000

Unavailable

9

BOX, BATTERY (NOT AVAILABLE)

83600-329-020

Unavailable

10

PROTECTOR A, BATTERY (NOT AVAILABLE)

83601-329-030

Unavailable

11

RUBBER, BATTERY BOX

83603-329-000

Unavailable

12

COLLAR, BATTERY BOX (NOT AVAILABLE)

83604-329-000

Unavailable

13

RUBBER, BATTERY BOX

83618-323-000

$2.47

14

BOLT, HEX. (6X70) This part replaces 92000-06070.

92101-06070-0A

$2.34

14

BOLT, HEX. (6X70) This part replaces 92000-06070-0A.

92101-06070-0A

$2.34

14

BOLT, HEX. (6X70)

92101-06070-0A

$2.34

15

BOLT, FLANGE (8X70) This part replaces 95700-08070-00.

95701-08070-00

$2.67

15

BOLT, FLANGE (8X70)

95701-08070-00

$2.67

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49

20

BAND A, BATTERY This part replaces 95012-11000.

95012-11001

$2.92

20

BAND A, BATTERY

95012-11001

$2.92

21

FUSE A (10A)

98200-11000

$1.80
