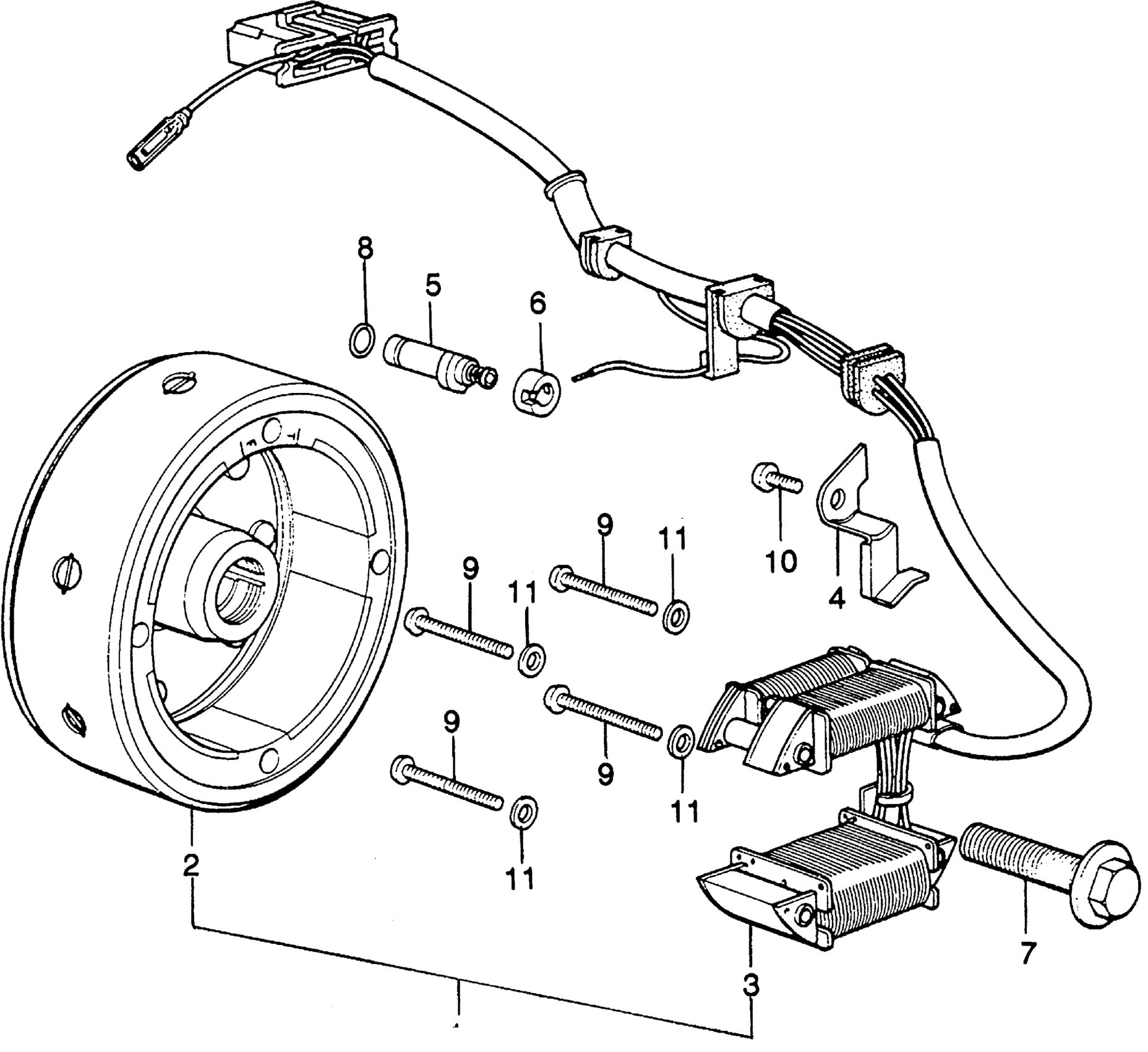

Honda XL250K1A MOTORCYCLE, JPN, VIN# XL250-2000001 ALTERNATOR Diagram

ALTERNATOR ASSY.

31100-329-774

Unavailable

FLYWHEEL (NOT AVAILABLE)

31121-329-774

Unavailable

STATOR ASSY. (DENSO) (NOT AVAILABLE)

31141-329-004

Unavailable

CLAMP, CABLE (NOT AVAILABLE)

32111-329-000

Unavailable

CONTACT ASSY., NEUTRAL SWITCH

35750-028-000

Unavailable

SPACER, NEUTRAL SWITCH (NOT AVAILABLE)

35752-329-300

Unavailable

BOLT, FLANGE (12X40) (NOT AVAILABLE)

90023-329-000

Unavailable

O-RING (7X1.7)

91312-107-000

$3.18

SCREW, PAN (5X45)

93500-05045-0A

$1.49

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

SCREW, PAN (6X12)

93500-06012-0A

$1.49

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

WASHER, PLAIN (5MM)

94101-05000

$1.49
