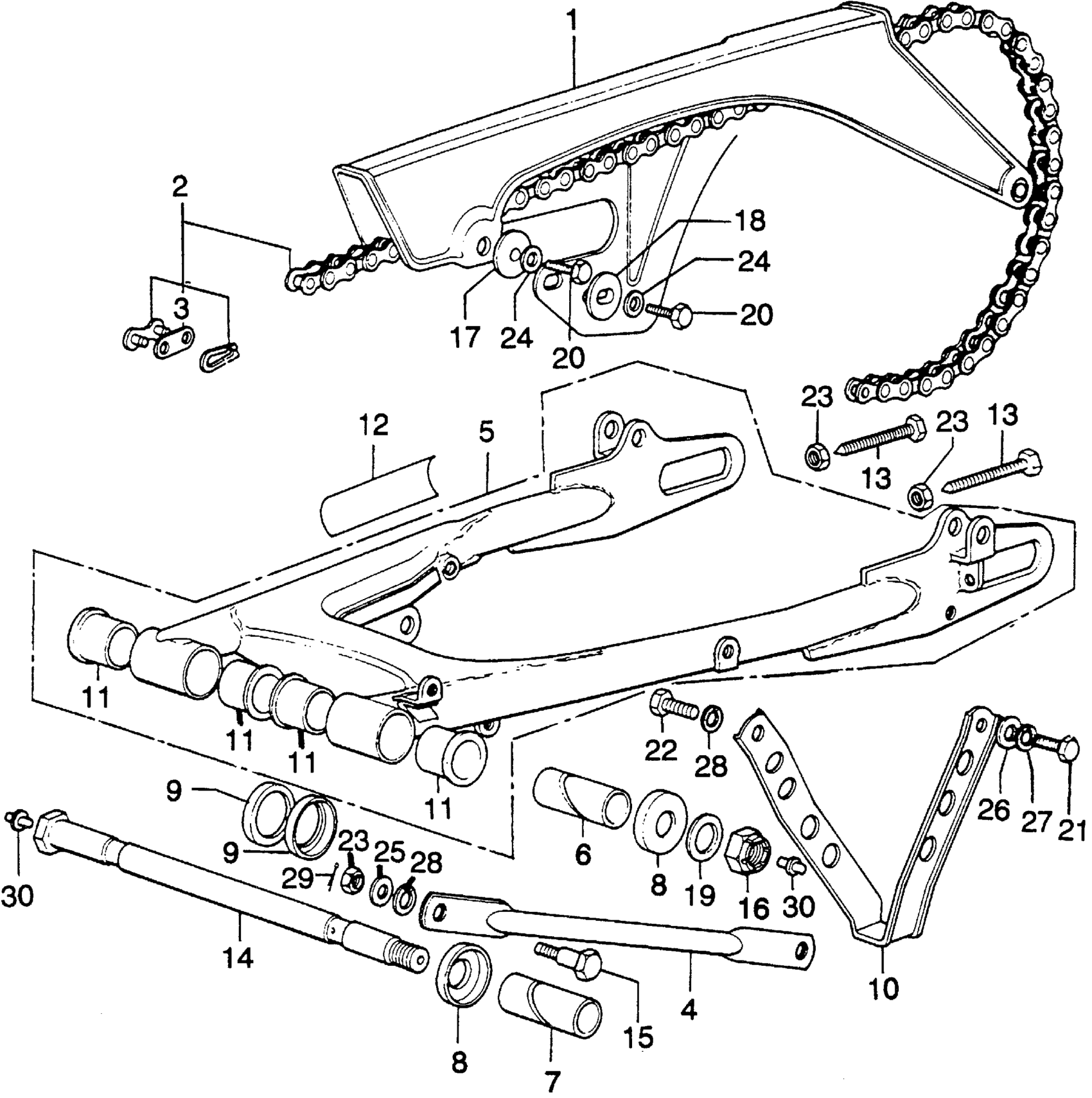

Honda XL250A MOTORCYCLE, JPN, VIN# XL250-1000001 TO XL250-1054588 SWINGARM + DRIVE CHAIN K Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-329-000

Unavailable

2

CHAIN, DRIVE (DID520D-100L) (NOT AVAILABLE)

40530-329-003

Unavailable

2

CHAIN, DRIVE (RK520S-98L) (NOT AVAILABLE)

40530-329-672

Unavailable

3

MASTER LINK (DID520D) (NOT AVAILABLE)

40531-312-003

Unavailable

3

MASTER LINK (RK520S) (NOT AVAILABLE)

40531-329-005

Unavailable

4

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-329-020

Unavailable

5

SWINGARM, RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-329-010B

Unavailable

6

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-268-000

Unavailable

7

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-286-000

Unavailable

8

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$15.54

8

CAP, DUST SEAL (NOK)

52144-356-005

$15.54

9

RUBBER, SWINGARM DUST SEAL CAP

52145-329-000

$7.06

10

GUARD, CHAIN *NH1* (BLACK) (NOT AVAILABLE)

52156-329-010B

Unavailable

11

BUSH, SWINGARM PIVOT

52174-329-300

Unavailable

12

MARK, STOPPER ARM CAUTION (NOT AVAILABLE)

87508-329-670

Unavailable

13

BOLT, CHAIN ADJUSTING

90119-300-000

$8.51

14

BOLT, SWINGARM PIVOT This part replaces 90121-286-000.

90121-349-690

Unavailable

15

BOLT, RR. BRAKE STOPPER ARM

90133-028-010

Unavailable

15

BOLT, RR. BRAKE STOPPER ARM This part replaces 90133-107-000.

90133-028-010

Unavailable

16

NUT, LOCK (14MM)

90354-268-000

$6.32

17

WASHER (6X20)

90512-300-000

$2.87

18

WASHER (6X9)

90513-323-000

$1.67

19

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

19

WASHER (14X26)

90527-634-670

Unavailable

20

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.32

20

BOLT, HEX. (6X14)

92101-06014-0A

$1.32

21

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.35

21

BOLT, HEX. (8X16)

92101-08016-0A

$1.35

22

BOLT, HEX. (10X16) This part replaces 92000-10016-0A.

92101-10016-0A

Unavailable

22

BOLT, HEX. (10X16)

92101-10016-0A

Unavailable

23

NUT, HEX. (8MM)

94001-08000-0S

$1.19

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

24

WASHER, PLAIN (6MM)

94101-06800

Unavailable

25

WASHER, PLAIN (8MM)

94101-08000

$0.75

26

WASHER, PLAIN (8MM)

94102-08000

$0.86

27

WASHER, SPRING (8MM)

94111-08000

$0.90

28

WASHER, SPRING (8MM)

94111-10000

$1.22

29

PIN, COTTER (2.0X15)

94201-20150

$0.94

30

FITTING, GREASE (A.45)

96201-30001

$1.12
