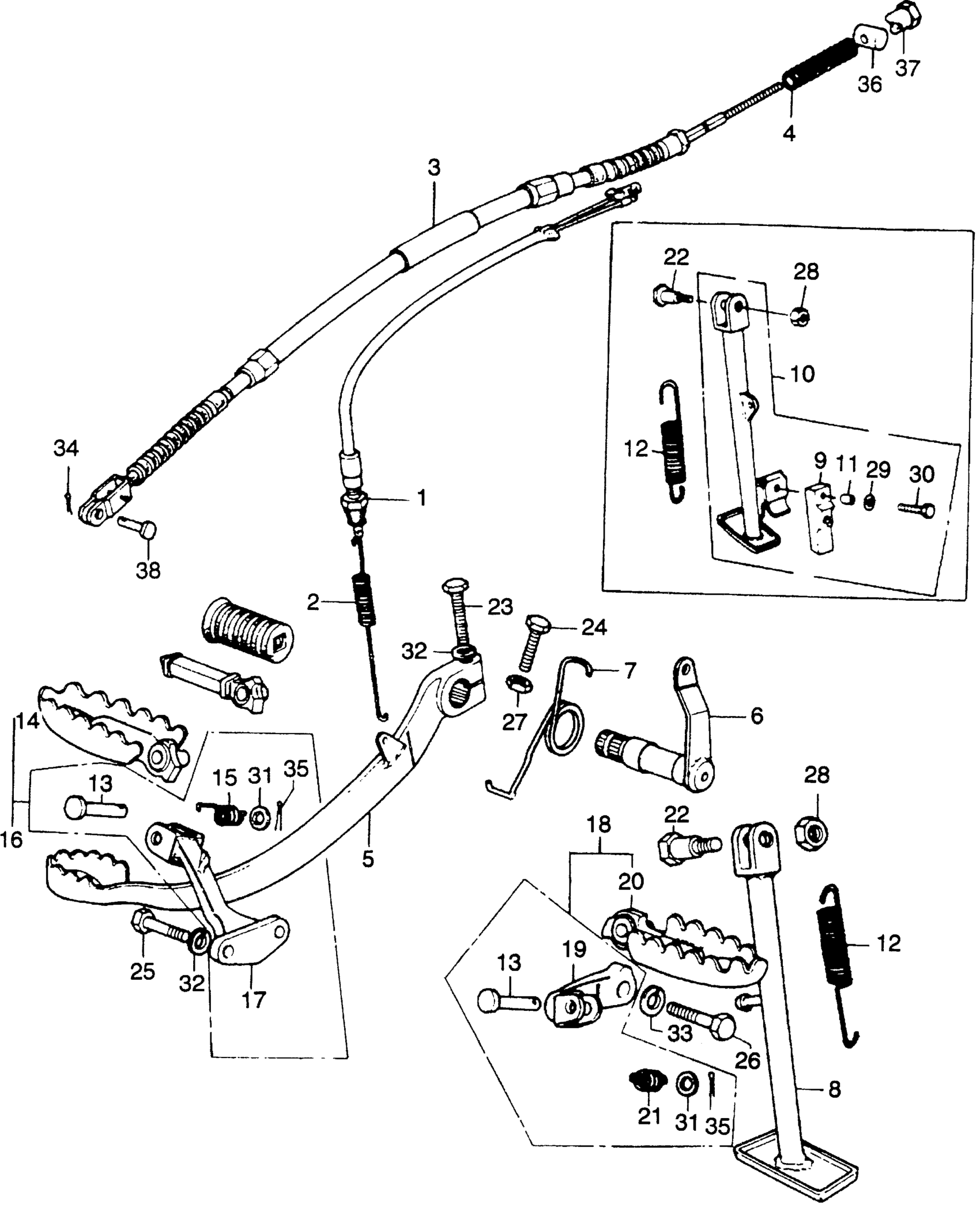

Honda XL250A MOTORCYCLE, JPN, VIN# XL250-1000001 TO XL250-1054588 STEP + BRAKE PEDAL Diagram

#

Description
Price

1

SWITCH ASSY., RR. STOP This part replaces 35350-292-003.

35350-KJ9-405

$16.97

1

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

1

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

2

SPRING, STOP SWITCH

35357-KE5-000

Unavailable

2

SPRING, STOP SWITCH This part replaces 35357-303-010.

35357-KE5-000

Unavailable

3

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-329-000

Unavailable

4

SPRING A, BRAKE CABLE (NOT AVAILABLE)

45452-044-300

Unavailable

5

PEDAL, BRAKE This part replaces 46500-329-020.

46500-356-000

Unavailable

5

PEDAL, BRAKE

46500-356-000

Unavailable

6

SHAFT, RR. BRAKE PIVOT

46510-329-000

Unavailable

7

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-329-010

Unavailable

8

BAR, SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)

50530-329-010B

Unavailable

12

SPRING, SIDE STAND (NOT AVAILABLE)

50542-310-010

Unavailable

13

PIN, MAIN STEP BAR JOINT

50603-GS9-010

$5.46

13

PIN, MAIN STEP BAR JOINT This part replaces 50603-056-000.

50603-GS9-010

$5.46

14

ARM, R. STEP

50616-329-670

Unavailable

15

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

15

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

16

BAR ASSY., R. STEP (NOT AVAILABLE) This part replaces 50620-329-670.

50620-329-770

Unavailable

16

BAR ASSY., R. STEP (NOT AVAILABLE)

50620-329-770

Unavailable

17

BAR, R. STEP

50625-329-000

Unavailable

18

BAR ASSY., L. STEP (NOT AVAILABLE) This part replaces 50630-329-670.

50630-329-770

Unavailable

19

BAR, L. STEP

50635-329-000

Unavailable

20

STEP, L. (NOT AVAILABLE)

50642-329-670

Unavailable

21

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

21

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

22

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

23

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

23

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

24

BOLT, HEX. (6X25) This part replaces 92023-06025.

92025-06025-0A

$1.49

24

BOLT, HEX. (6X25) This part replaces 92023-06025-0A.

92025-06025-0A

$1.49

24

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

25

BOLT, HEX. (8X28) (NOT AVAILABLE)

92212-08028-0A

Unavailable

26

BOLT, HEX. (10X35) (NOT AVAILABLE)

92215-10035-0A

Unavailable

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

28

NUT, HEX. (10MM)

94030-10000

$1.49

31

WASHER, PLAIN (8MM)

94101-08000

$1.49

32

WASHER, SPRING (8MM)

94111-08000

$1.49

33

WASHER, SPRING (8MM)

94111-10000

$1.49

34

PIN, COTTER (1.6X12)

94201-16120

$1.49

35

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

35

PIN, COTTER (1.6X25)

94201-16250

$1.49

36

JOINT B, BRAKE ARM This part replaces 43453-250-000.

95015-32001

$1.49

36

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

36

JOINT, BRAKE ARM

95015-32001

$1.49

37

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

38

PIN B, BRAKE ROD JOINT

95015-52000

$2.03
