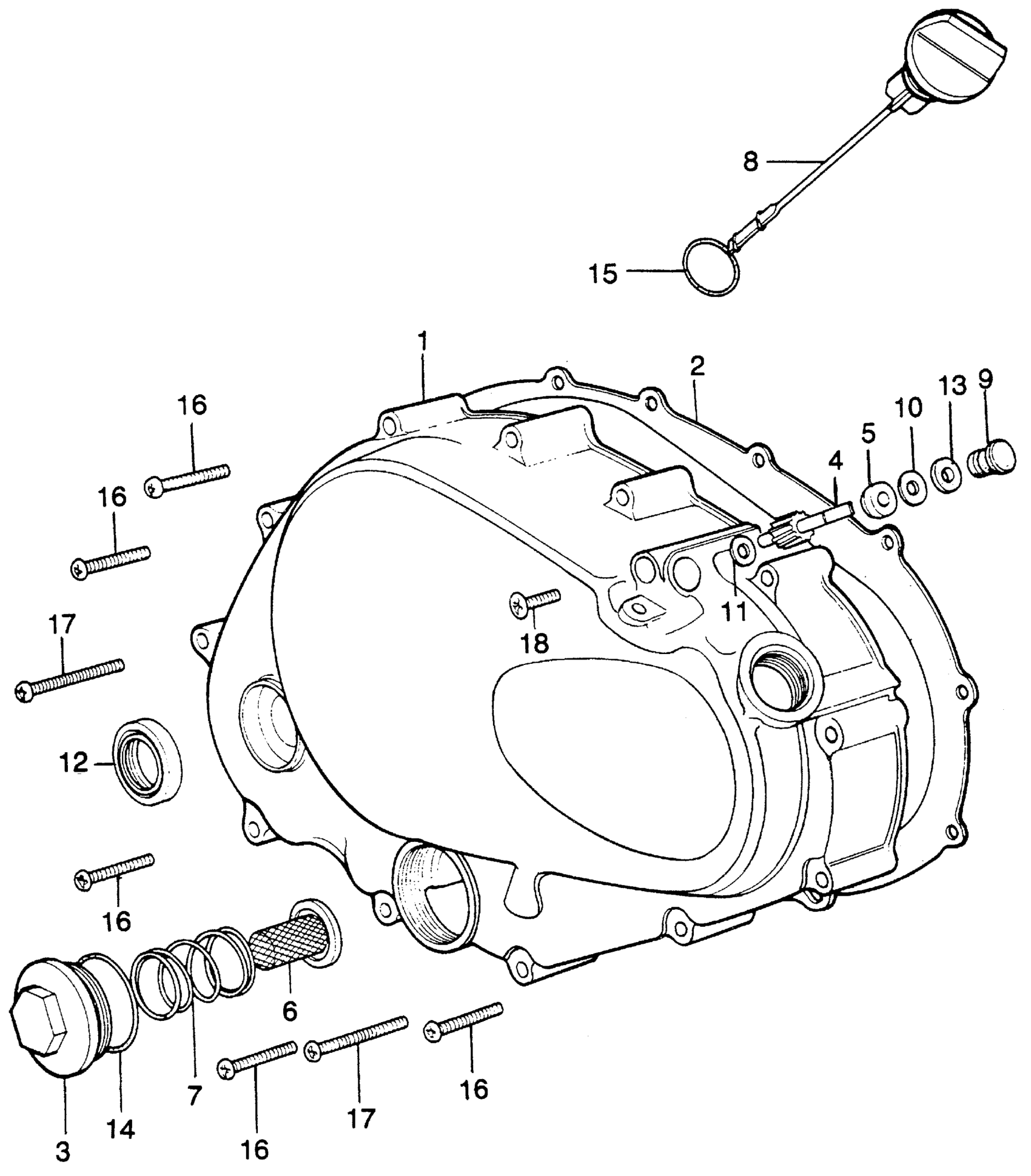

Honda XL250A MOTORCYCLE, JPN, VIN# XL250-1000001 TO XL250-1054588 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE (NOT AVAILABLE) This part replaces 11330-329-000.

11330-356-010

Unavailable

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-356-010

Unavailable

GASKET, R. This part replaces 11394-329-000.

11394-329-306

Unavailable

CAP, VALVE ADJ. This part replaces 12361-107-000.

12361-383-000

$6.43

CAP, VALVE ADJ.

12361-383-000

$6.43

GEAR, TACHOMETER (NOT AVAILABLE)

12431-246-000

Unavailable

COLLAR, TACHOMETER GEAR THRUST (NOT AVAILABLE)

12435-329-000

Unavailable

SCREEN, OIL FILTER (NOT AVAILABLE)

15421-329-000

Unavailable

SPRING, OIL FILTER SCREEN

15426-107-000

$3.63

DIPSTICK, OIL (NOT AVAILABLE) This part replaces 15650-329-000.

15650-393-000

Unavailable

DIPSTICK, OIL (NOT AVAILABLE) This part replaces 15650-356-000.

15650-393-000

Unavailable

CAP, GEAR BOX HOLE (NOT AVAILABLE) This part replaces 44835-329-810.

44835-365-670

Unavailable

CAP, GEAR BOX HOLE (NOT AVAILABLE)

44835-365-670

Unavailable

WASHER, TACHOMETER GEAR THRUST

90458-286-000

Unavailable

WASHER, SPEEDOMETER PINION

90539-011-000

Unavailable

OIL SEAL (18X29X7)

91204-286-003

$4.31

OIL SEAL (18X29X7) This part replaces 91204-286-005.

91204-286-003

$4.31

OIL SEAL (4.8X14.5X4) This part replaces 91211-286-003.

91256-096-651

$4.85

OIL SEAL (4.8X14.5X4)

91256-096-651

$4.85

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

O-RING (23X2)

91354-371-000

$3.19

O-RING (23X2) This part replaces 91354-702-000.

91354-371-000

$3.19

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

SCREW, PAN (6X45)

93500-06045-0A

$1.49

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

SCREW, PAN (6X55)

93500-06055-0A

$1.49

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

SCREW, OVAL (6X25) This part replaces 93700-06025-02.

93700-06025-0B

$1.49
