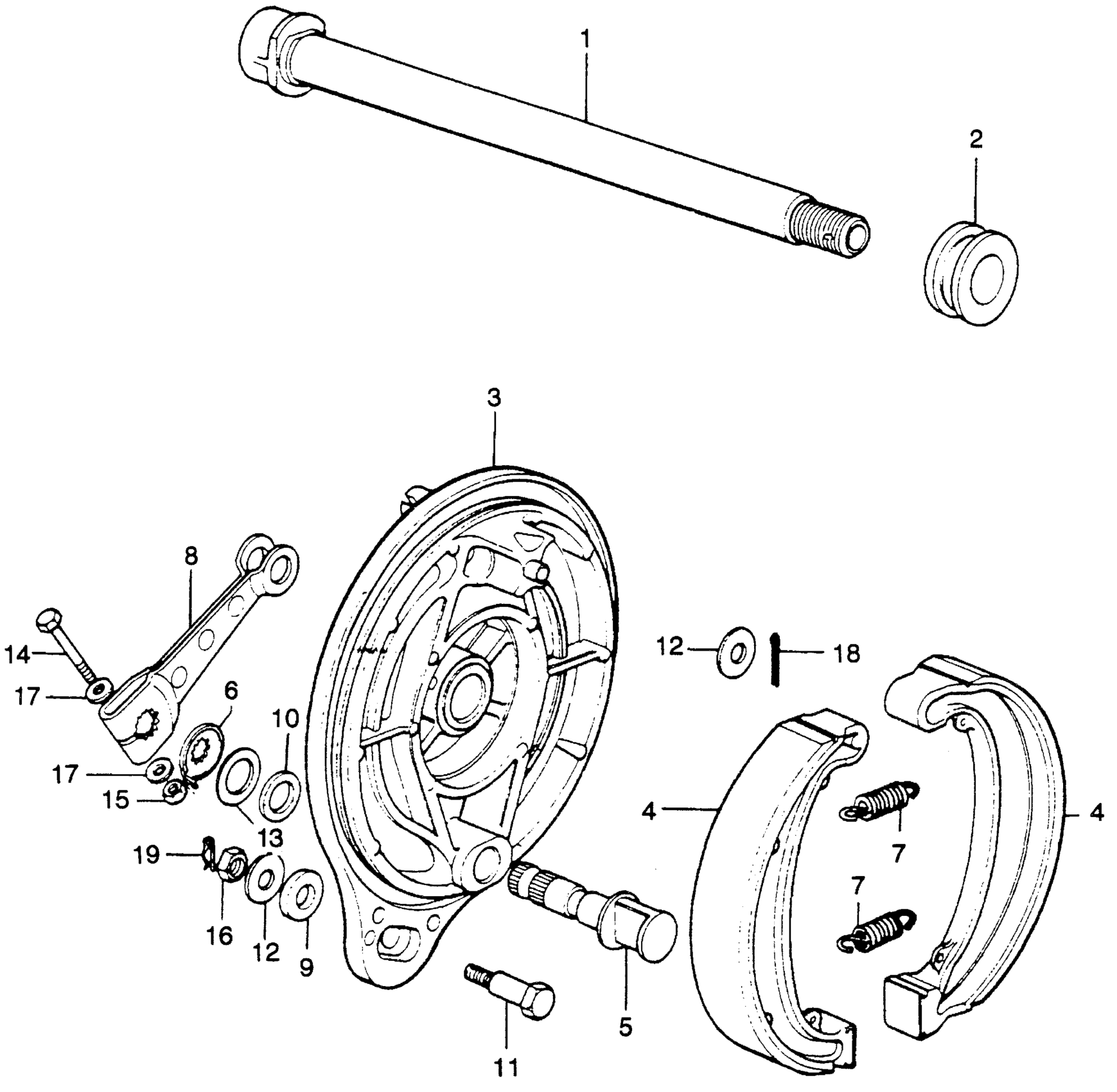

Honda XL250A MOTORCYCLE, JPN, VIN# XL250-1000001 TO XL250-1054588 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06450-KBG-000.

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE (ASK) This part replaces 06450-KC2-681.

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-329-670.

06450-KC2-680

$42.29

1

AXLE, RR. WHEEL (NOT AVAILABLE) This part replaces 42301-329-000.

42301-356-000

Unavailable

1

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-356-000

Unavailable

2

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-329-000

Unavailable

3

PANEL, RR. BRAKE

43100-329-010

Unavailable

4

SHOE SET, BRAKE (ASK) This part replaces 43120-329-000.

06450-KC2-680

$42.29

4

SHOE SET, BRAKE (ASK) This part replaces 43120-329-670.

06450-KC2-680

$42.29

5

CAM, RR. BRAKE (NOT AVAILABLE)

43141-312-000

Unavailable

6

INDICATOR, RR. BRAKE

43145-329-770

Unavailable

7

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

8

ARM, RR. BRAKE

43410-KC5-000

Unavailable

8

ARM, RR. BRAKE This part replaces 43410-312-000.

43410-KC5-000

Unavailable

8

ARM, RR. BRAKE This part replaces 43410-329-770.

43410-KC5-000

Unavailable

9

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

10

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

11

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

11

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

12

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

13

WASHER (14MM)

90549-121-000

Unavailable

14

BOLT, HEX. (6X35) This part replaces 92000-06035.

92101-06035-0A

$1.77

14

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

14

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

14

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

14

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

14

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (8MM)

94001-08000-0S

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

PIN, COTTER (2.0X15)

94201-20150

$1.49

19

PIN, LOCK (8MM)

94251-08000

$1.49
