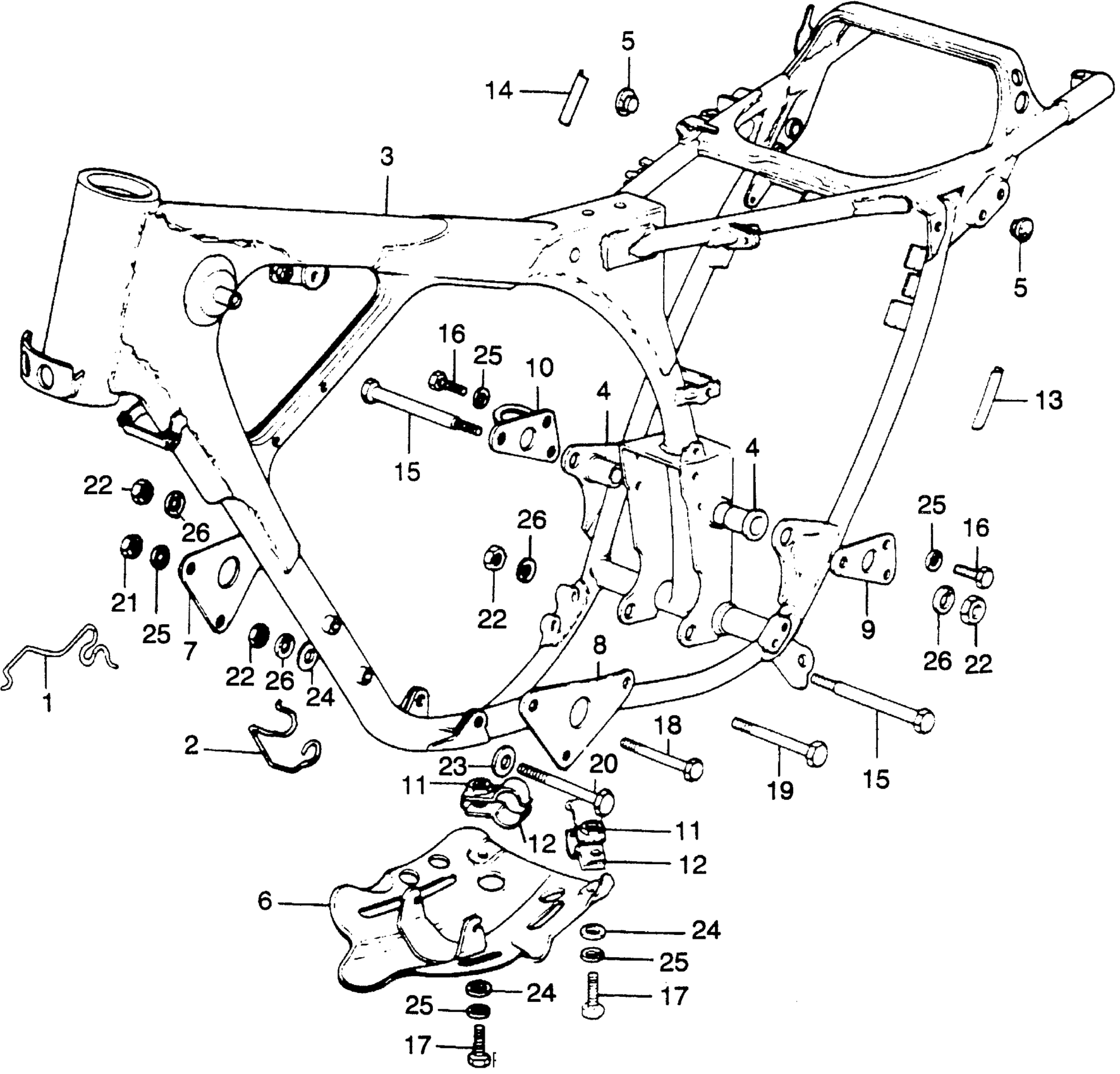

Honda XL250A MOTORCYCLE, JPN, VIN# XL250-1000001 TO XL250-1054588 FRAME Diagram

CLAMP, CLUTCH (NOT AVAILABLE)

22873-329-000

Unavailable

FRAME *NH1* (BLACK)

50100-329-305B

Unavailable

FRAME *NH1* (BLACK) This part replaces 50100-329-673B.

50100-329-305B

Unavailable

BUSH, CENTER PIPE (NOT AVAILABLE)

50157-286-300

Unavailable

PLUG

50318-041-600

$2.11

PLATE, SKID (NOT AVAILABLE)

50351-329-670

Unavailable

PLATE A, R. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50352-329-010B

Unavailable

PLATE A, L. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50353-329-010B

Unavailable

PLATE C, L. ENGINE HANGER (NOT AVAILABLE) | Use up to Frame SN 1060554 This part replaces 50356-329-300B.

50356-356-000

Unavailable

PLATE C, L. ENGINE HANGER (NOT AVAILABLE)

50356-356-000

Unavailable

PLATE C, R. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50357-329-000B

Unavailable

BRACKET, RR. SKID PLATE SETTING (NOT AVAILABLE)

50358-329-000

Unavailable

BRACKET B, RR. SKID PLATE SETTING

50359-312-000

Unavailable

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

LABEL, AIR CLEANER CAUTION

87506-340-670

Unavailable

BOLT A, ENGINE HANGER (NOT AVAILABLE)

90102-286-000

$9.70

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

BOLT, HEX. (8X70) (NOT AVAILABLE) This part replaces 92000-08070-0A.

92200-08070-0A

Unavailable

BOLT, HEX. (10X80)

92200-10080-0A

Unavailable

BOLT, HEX. (10X90) (NOT AVAILABLE)

92200-10090-0A

Unavailable

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, HEX. (10MM)

94001-10000-0S

$1.49

WASHER, PLAIN (10MM)

94101-10000

$1.49

WASHER, PLAIN (8MM)

94102-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

WASHER, SPRING (8MM) | Use from Frame SN 1060555

94111-08000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49
