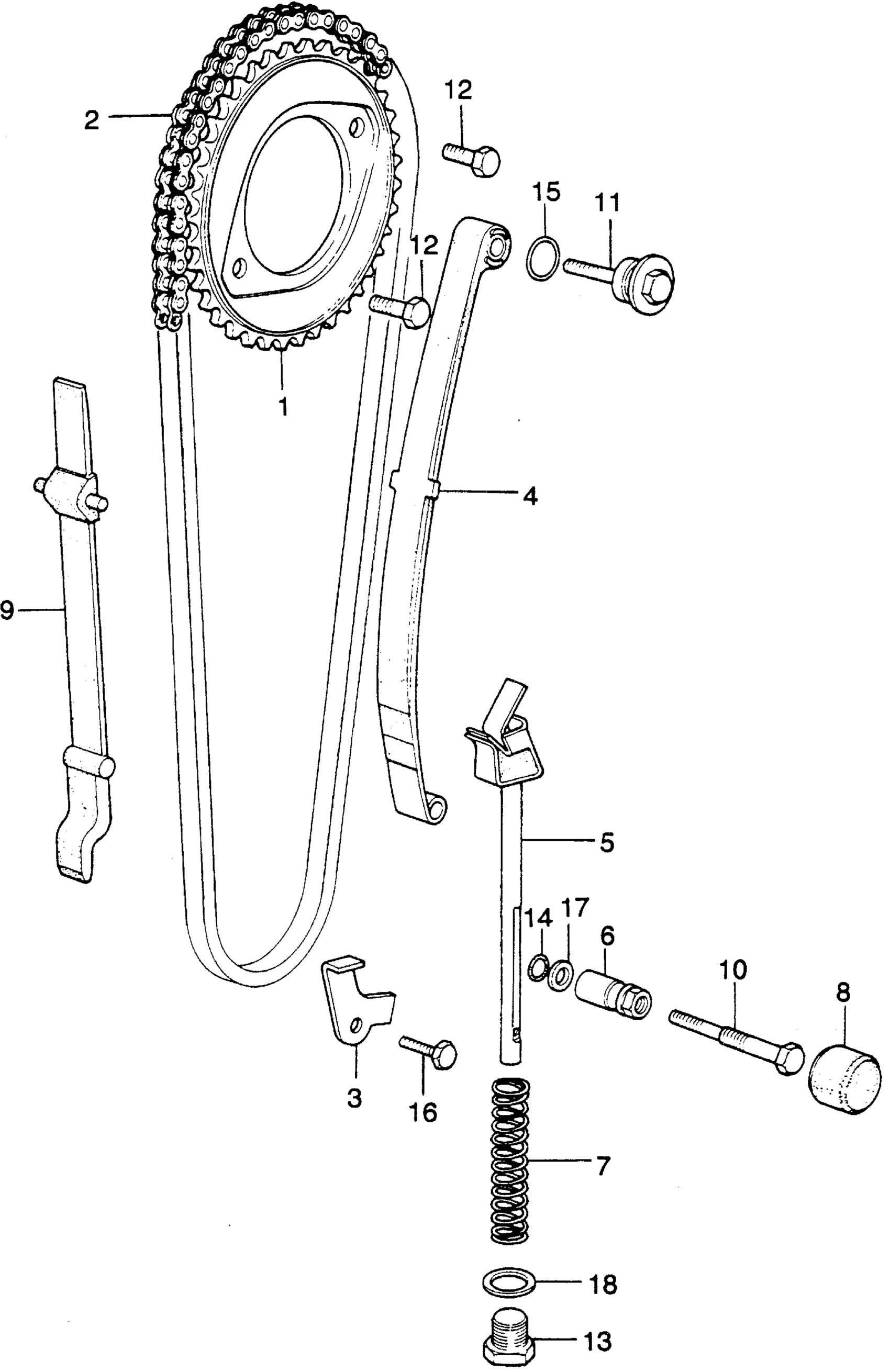

Honda XL250A MOTORCYCLE, JPN, VIN# XL250-1000001 TO XL250-1054588 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM

14321-329-000

Unavailable

2

CHAIN, CAM This part replaces 14401-286-003.

14401-410-003

Unavailable

2

CHAIN, CAM

14401-410-003

Unavailable

3

PLATE, CAM CHAIN SET (NOT AVAILABLE)

14414-329-000

Unavailable

4

TENSIONER, CAM CHAIN (HOKUSHIN) (NOT AVAILABLE)

14500-329-003

Unavailable

5

BAR, CAM CHAIN TENSIONER SETTING

14510-329-000

Unavailable

6

NUT, CAM CHAIN TENSIONER SETTING (NOT AVAILABLE)

14515-329-000

Unavailable

7

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-329-000

Unavailable

8

CAP, CAM CHAIN TENSIONER SETTING BOLT (NOT AVAILABLE) This part replaces 14561-329-000.

14561-391-000

Unavailable

9

GUIDE, CAM CHAIN (NOT AVAILABLE) This part replaces 14611-329-000.

14611-376-000

Unavailable

9

GUIDE, CAM CHAIN (NOT AVAILABLE)

14611-376-000

Unavailable

10

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90018-329-000

Unavailable

11

BOLT, TENSIONER (NOT AVAILABLE)

90019-329-000

Unavailable

12

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

12

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

13

BOLT, DRAIN (NOT AVAILABLE) | Use up to Engine SN 3015693

90107-538-010

Unavailable

13

BOLT, DRAIN PLUG (12MM) | Use from Engine SN 3015694

92800-12000

$3.23

14

O-RING (4.9X2.5) This part replaces 91301-283-000.

91301-426-010

$3.60

14

O-RING (4.9X2.5) This part replaces 91301-283-005.

91301-426-010

$3.60

14

O-RING (4.9X2.5) This part replaces 91301-393-000.

91301-426-010

$3.60

14

O-RING (4.9X2.5)

91301-426-010

$3.60

15

O-RING (13X2.5)

91319-300-000

$5.07

16

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49
